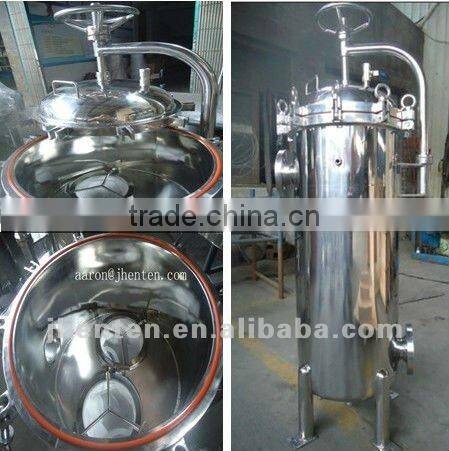

Bag Filter Housing

Specifications

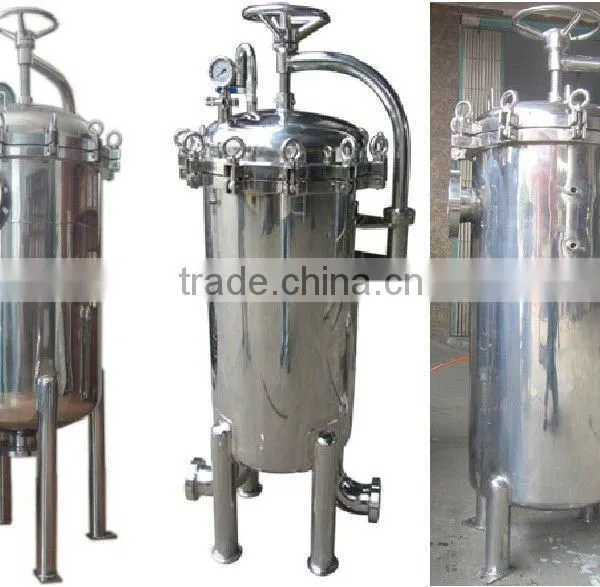

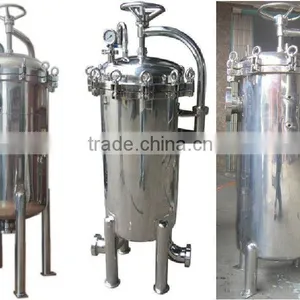

Multi Bag Filter Housings

Jhenten's Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,achieving more efficient filtering result.Eye Bolt Closure System.The user friendly,cost effective bag filter housing for high volume,multiple applications and processes. The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.

  Features:Multi-Cavity Bag Filter Housings

• Versions available in high-grade AISI 304 and 316 L stainless steel

• 150PSI rated and up to 300ºC

• Heavy duty swing bolt closure with lifting davit,Easy open clamp closure

• Basket hold down device

• Hygienic design by avoiding dead space and pockets.

• All surfaces that come in contact with the product are mirror or electro polished to Ra< 0.4 µm

• 2” to 6“ flanged (see Ordering Guide)

• 1/4" Gauge Ports,3/4Drain,1/2" Vent"

                                          Standard Design Specifications

  Multi Bag Filter Housings

 WENZHOU JHENTEN MACHINERY CO.,LTD
A Professional Manufacturer of Filter Housing
