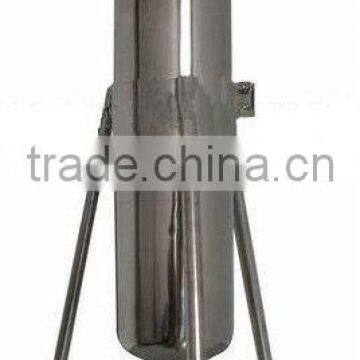

Help CenterTop Entry Bag Filter
Related Products
Product Description
Jhenten's Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,achieving more efficient filtering result;It is more convenient and swift to change the filter bag, thu to lower operating cost;The adjustable height makes the filter applicable to different occasions.
Technical specification
1.Material:SS304,SS316L or carbon steel
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical
Polishing ,Ra≤0.5μm
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry,
Electronic Industry and So On.
Bag filter Advanadges
1. A unique filter design techniques, to be effective in preventing filter bag filter
trap into the basket, ensure 100% without spills.
2. Basket laid by the computer, the high-intensity laser drilling stainless steel
plate, with rarely fixtures materials after molding, polishing,.
3. Compact size and reasonable. Installation and operation is simple and
convenient , the site is smaller.
4. Filtration with high precision, it applies to any suspension or fine
particulate material, the filters range from 1~800 micron;
Product Darwing Main parameters
|
Specification Model |
ZT 1-1 |
ZT 1-2 |
ZT 1-3 |
ZT 1-4 |
ZT 3-2 |
ZT 4-2 |
ZT 5-2 |
ZT 6-2 |
ZT 8-2 |
ZT 10-2 |
ZT12-2 |
ZT15-2 |
ZT 21-2 |
Bag Quantity (pcs) |
1 |
1 |
1 |
1 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
15 |
21 |
Filter Area (m2) |
0.5 |
0.5 |
0.5 |
0.5 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
7.5 |
10.5 |
Max Flow Rate (T/H) |
15 |
30 |
3 |
5 |
90 |
120 |
150 |
180 |
240 |
300 |
360 |
450 |
630 |
Operationg Date (Mpa) |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
Max Temperture (°C) |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
