Help CenterBag Filter Housing
Related Products
Specifications
1.Factory Price2.High Flow Rates
2.High Dirt Holding Capacity
3.Easy to Operate & low Maintenance
4..Custom Design Service
Product Description

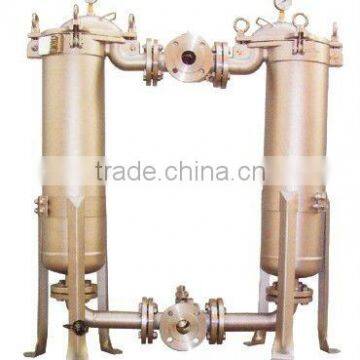

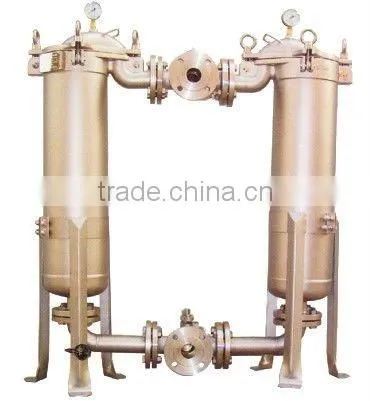

Duplex bag filter housing were consisted of two Top-Flow bag filter housings fitted together at the inlet and outlet by either a butterfly or ball valve assembly.The valves were connected together by a retun handle so as to operate easily from one bag houisng to to other bag filter housing.The filtration process can flow continously during bag chang-out.
Technical specification
1.Material:SUS304,SUS316L or carbon steel
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical
Polishing
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical
Industry, Electronic Industry and so on.
Bag Filter's Character
1.Big flux
2.Long life
3.Evident effect
4.High intensity
5.Simple operation
6.Cost saving

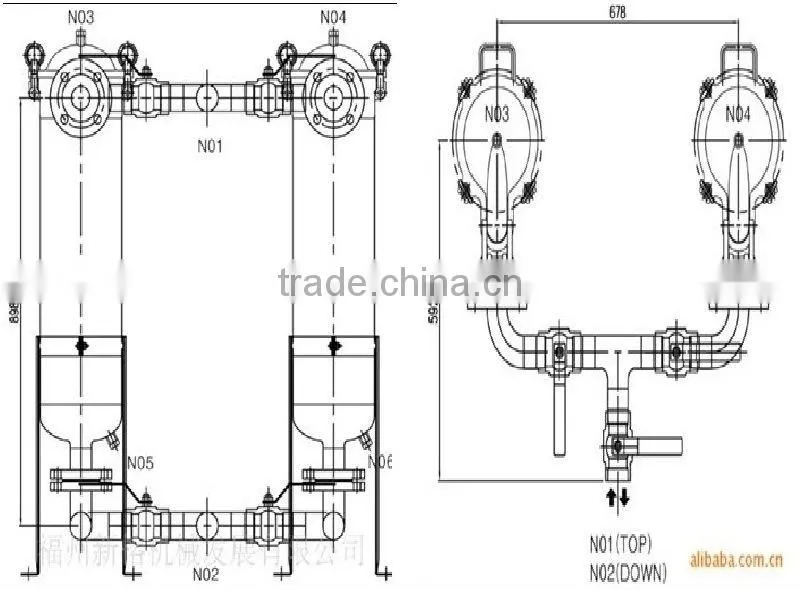

Product Design Drawings
Main Technical Parameters
|
Modell Specification |
ZT 1-1 |
ZT 1-2 |
ZT 1-3 |
ZT 1-4 |
ZT 3-2 |
ZT 4-2 |
ZT 5-2 |
ZT 6-2 |
ZT 8-2 |
ZT 10-2 |
ZTL 12-2 |
ZT 15-2 |
ZT 21-2 |
Bag Quantity (pcs) |
1 |
1 |
1 |
1 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
15 |
21 |
Filter Area (m2) |
0.5 |
0.5 |
0.5 |
0.5 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
7.5 |
10.5 |
Max Flow Rate (T/H) |
15 |
30 |
3 |
5 |
90 |
120 |
150 |
180 |
240 |
300 |
360 |
450 |
630 |
Operationg Date (Mpa) |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
0.1-0.8 |
Max Temperture (°C) |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
