Home > Industrial Equipment & Components > Filtration Equipment & Parts > Industrial Water Filter > 4 Size #2 Multi-Round Bag Filter Vessels

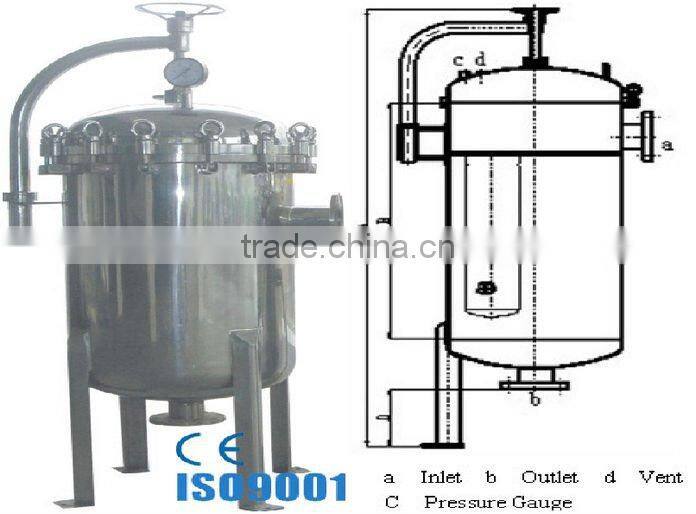

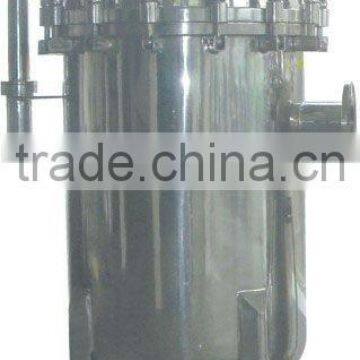

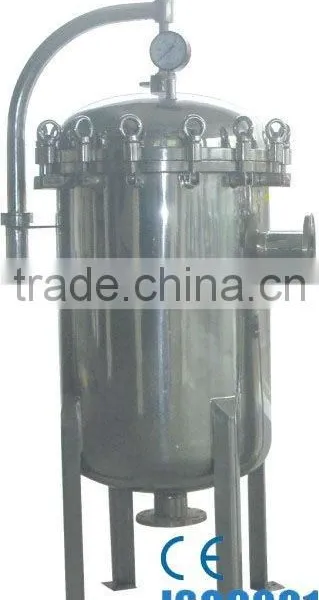

4 Size #2 Multi-Round Bag Filter Vessels

Name: 4 Size #2 Multi-Round Bag Filter Vessels
Brand: Jhenten
SKU: 141374460
Availability: InStock

4 Size #2 Multi-Round Bag Filter Vessels thumbnail-1

4 Size #2 Multi-Round Bag Filter Vessels photo-1

US$ 100 - 800 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

Jhenten

Model Number:

ZT4P2S

Contact Supplier Request Quote Chat Now

Wenzhou Jhen Ten Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo or ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Jhenten

Model Number ZT4P2S

Specifications

1. Manufacturer,Factory Price
2High dirt holding capacity
3.Easy to operate & low maintenance
4.Long life time,Casting Saving

4 Size #2 Multi-Round Bag Filter Vessels

Jhenten's Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,achieving more efficient filtering result;Eye Bolt Closure System-The user friendly,cost effective bag filter housing for high volume,multiple applications and processes.The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h

Technical specification

1.Material:SUS304,SUS316L or carbon steel

2.Flow type:Side Enty,Top Entry,S-Multi,B-Multi Bag Filter

3.Design vessel pressure :1.0Mpa

4.MAX Operate temperature:110°C

5.Filtering accuracy:0.1-20um

6.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag

6.Connection vessel:GB,ANSI,JIS,and other flange

8.Surface treatment:Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical

polishing

9. Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry,

Electronic Industry and so on.

Main Parameters

Item	A (MM)	B (MM)	C (MM)	D (MM)
ZTDS-3P1S	1650	700	500	250
ZTDS-4P1S	1650	700	550	250
ZTDS-6P1S	1840	700	700	250
ZTDS-8P1S	2260	700	800	250
ZTDS-10P1S	2300	700	1000	250
ZTDS-12P1S	2350	700	1100	250
ZTDS-3P2S	1950	1000	550	250
ZTLD-4P2S	1950	1000	550	250
ZTDS-6P2S	2140	1000	700	250
ZTDS--8P2S	2560	1000	800	250
ZTDS-10P2S	2600	1000	1000	250
ZTDS-12P2S	2650	1000	1100	250
