water cooled chiller air-cooled industrial chiller
what is a water chiller
A water chilleris a mechanical device used to facilitate heat exchange from water to a refrigerant in a closed loop system. The refrigerant is then pumped to a location where the waste heat is transferred to theatmosphere.
In hydroponics, pumps, lights and ambient heat can warm the reservoir water temperatures, leading to plant root and health problems. For ideal plant health, a chiller can be used to lower the water temperature below ambient level; 68°F (20°C) is a good temperature for most plants. This results in healthy root production and efficient absorption of nutrients.
In air conditioning, chilled water is often used to cool a building's air and equipment, especially in situations where many individual rooms must be controlled separately, such as a hotel. A chiller lowers water temperature to between 40° and 45°F before the water is pumped to the location to be cooled.
water cooled chiller air-cooled industrial chiller
Specifications

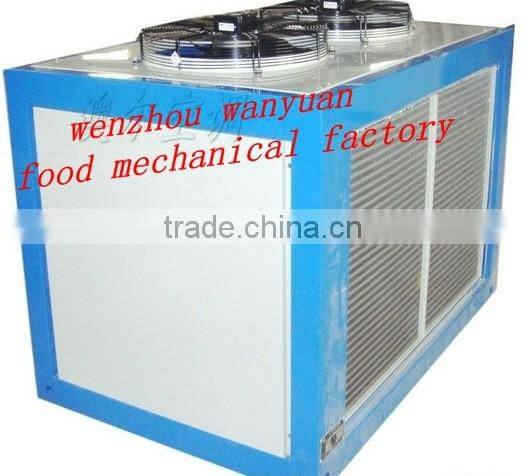

Industrial Water Cooled Chiller
1.SANYO/COPELAND compressor
2.Direct selling, OEM offered
3.Cooling capacity custom
4.CE
Industrial Water Cooled Chiller
water-cooled industrial chiller is a new generation of refrigeration equipment, mainly used for the steel, medicine, electronics, chemical industry, food industry and other special industry.
1.Power supply:3PH-200V/220V/380V/415V-50HZ/60HZ
2.Refrigerant R22/R/134/407c
3.Set temperature range: From 0 to +50°C
4.Cooling capacity: 1HP-240HP (0.7tons-206tons)
5.Compressor type:Screw type,Scroll type
6.Compressor brand: SANYO, COPELAND, DANFOSS, HANBELL.DAIKIN, HITACHI
water cooled chiller air-cooled industrial chiller
| Specification model | Unit | WY-10W(D) |
| Nominal cooling capacity | kcal/h 50HZ/60HZ | 25800 30960 |
| KW 50HZ/60HZ | 30 36 | |
| Input power | KW | 9.85 |
| Set temp. range | 0ºC~50ºC | |
| Power supply | 3PH-380V-50HZ (200V/220V/415V-50HZ/60HZ) | |
| Refrigerant | Type | R22/R134a/407c |
| Type of control | Thermostatic expansion valve | |
| Compressor | Type | Hermetic scroll |
| Power(kw) | 4.55*2 | |
| Condenser | Type | shell and tube |
| Cooling water flow(m3/h) | 6.76 7.4 | |
| Inlet and outlet pipe diameter(inch) | 1-1/2" | |
| Evaporator | Type | Tank with coil/shell and tube |
| Chilled fluid flow(m3/h) | 5.26 6.32 | |
| Volume(L) | 200 | |
| Inlet and outlet pipe diameter(inch) | 1-1/2" | |
| Pump | Power(kw) | 0.75 |
| Lift(m) | 20 | |
| Dimension | Length(mm) | 1170 |
| Wide(mm) | 710 | |
| High(mm) | 1200 | |
| Weight | kg | 430 |
| Safety protection | compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing | |
water cooled chiller air-cooled industrial chiller
Water chiller Applications:
wanyuan brand industrial chiller are the perfect solution for any application, in particular for the plastic field, such as : injection molding, extrusion(sheet & profile), blow molding, thermoforming, PET, plastic film, and other industrial field : electroplating (surface treatment), medicine, chemical, hydraulic system, leaser, shoe-making, electronic, print, etc.
water cooled chiller air-cooled industrial chiller
After-sale service:
1. wanyuan provide 12 months warranty for the machine. Warranty starts from receipt of the machine or parts.
2. All extra parts for the machine can be purchased with agent price from wanyuan.
3. wanyuan 24 hours working phone call +86-577-28863997, Email/ Skype/ MSN/ Trade manager online to support.
4. Life-long Technical Support and After-sale Service free of charge.
5.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
6. Free and Professional Training at our Factory under the relaxed condition.
