Plate Heat Exchanger for Cooling and Heating

Name: Plate Heat Exchanger for Cooling and Heating
Brand: WANYUAN
SKU: 141368270
Availability: InStock

Wenzhou Longwan Wan Yuan Food Machinery Factory

US$ 890 - 8,000 MOQ: 2 Sets

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

WANYUAN

Model Number:

BR series

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name WANYUAN

Model Number BR series

Type Meat Processing Machinery

After-sales Service Provided Engineers available to service machinery overseas

BRAND new Plate Heat Exchanger with best price

Details about efficient plate exchanger:

Usage:

Plate heat exchanger is being used in various fields,such as metallurgy,mining,petroleum,chemical engineering,electricity,pharmacy,food,synthetic fiber,textile,papermaking,shipbuilding,concentrated heating,machinary,and it can deal with many kinds of materials,including ordinary industrial water,liquid of high viscosity,healthful edibile liquid,clinical materials,corrosive acid and alkali,liquid with granule,floating liquid with fabric fibre, etc;
Plate heat exchanger can be used to heat,cool,evaporate,condense,sterilize,recover waste heat,etc

Merits:

Plate heat exchanger has high efficiency of heat exchanger,which is energy saving;
It has a compact structure,its plates are arrayed tightly and closely,so it has a smaller floor area and volume according to shell-and-tube heat exchanger;
It is very easy to install and disassemble,keepplates and bolts are conenient to disassemble;
Plate heat exchanger has a long useful time,it is made of stainless steel (SUS304/316/316L) or titanium alloy,which can resist acid and alkali. In additon,it is easy to disassemble,so its matenance is very convenient;
Plate heat exchanger has strong adjustability,its plates are unattached components,and users can change its form and procedure according to different processing requirements;

Main technical parameters:

model	BR 0.05	BR 0.1	BR 0.2
single plate heat exchange area (m²)	0.05	0.1	0.2
plate size (mm)	500×168	660×250	970×330
plate thickness (mm)	0.8	0.8	0.8
aperture diameter (mm)	38	60	75
adapter tube diameter (mm)	28	38	46

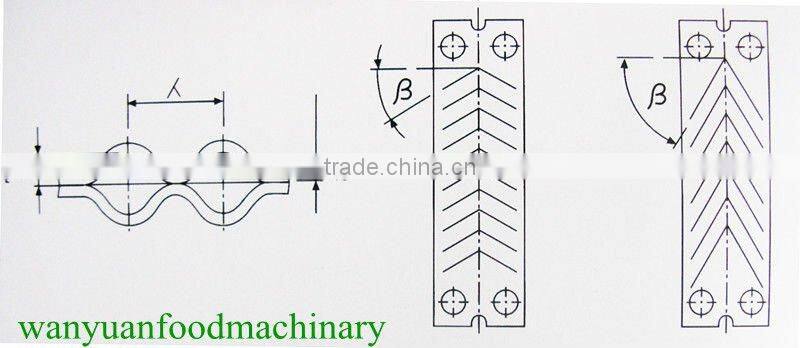

corrugation shape	herringbone	herringbone	herringbone
corrugation distance (mm)	10	12	12
average plate distance (mm)	3.8	4.2	4.2
combinatorial heat exchange area (m²)	0.5~5	4~10	10~38
maximum pressure (Mpa)	0.4~2	0.4~2	0.4~2
maximum temperature (°C)	120~160,250(special-required)	120~160,250(special-required)	120~160,250(special-required)
heat transfer coefficient (W/m²°C)	2000~6000	2000~6000	2000~6000
