300L batch pasteurizer operated by Nature gas
1. gas heating pasteurizer
2. batch pasteurizer in 300L capacity
Product requested: stainless steel pasteurizer
Request in detail: pasteurizer heated by gas,
used to pasteurizer milk to 85degree C and then cooling to 40degree C
300L capacity without heat preservation
The cooling system may be water and the heating may be propane gas
Heat milk to 180F and then cool to 100F
gas heating pasteurizer specificaton
Specification of the above gas heating pasteurizer
Capacity | 300L |
Working Pressure | 0.09 MPa |
Test Pressure | 0.15 MPa |
Stirring Speed | 36 r/minor customized |
Agitator type | Anchor type with scraper |
Motor power | 0.55kw |
Heating Area | 1.6 m² |
Material in/outlet | Φ32 |
Heating method | Gas heating |
Gas burner position | Bottom of the reactor |
Temperature gauge | 0°C to 150 °C |
Working temperature | ≤100 °C |
Temperature control | Automatic control |
Overall Dimension | Φ*00×*000 |
|
|
batch pasteurizer 300L pasteurizer fresh milk
According to the request listed above, you can choose a simple reactor which heated by propane gas and cold by water. This reactor will be made of stainless equipped with double wall; inner wall will be contact to your milk directly. Outer wall and inner wall will make up a gap.
Before you turn on the gas, you put clean water to the gas first and then turn on your gas and start to heating. Gas will boil the water in the gap and the heat from the boiling water will send to the milk in the reactor.
usage of batch pasteurizer: used to pasteurize fresh milk, fruit juice, fruit pulp, fruit puree, fruit paste
When milk temp arrived at the right temperature range you need, you can stop the gas and access cooling water to the gap and allowed the water run freely through the gap.
Close the water until the temperature gauge shows the right temp you need.

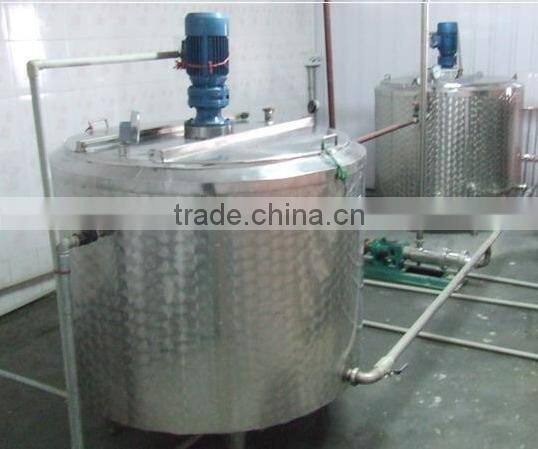

Picture of the mentioned gas hating batch pasteurizer
best price batch pasteurizer on sale with automatic temperature control
