50L Gas heating jacketed Kettle, Tri-leg mounted, self-contained, stationary, oil Jacketed. Type 304 Stainless Steel Kettle and Supports
Tilting Jacketed Kettle, Gas Jacketed Kettle, Oil Jacketed Kettle
Gas jacket kettle is widely used for the cooking of fruit, vegetable, soup, candy. Also used in the processing of sweets, pharmacy, dairy, alcohol, pastry, beverage, succade and so on. This gas heating jacketed kettle can also be used for large-scale restaurants and dining rooms, which can improve processing quality and working condition, and shorten the processing time. This kettle takes 110V to 480V voltage <can be customized> as its heat source, with gasal bar, gas couple and conduction oil in interlayer, as high as 250°C, controlled by gas cabinet.
Our jacketed kettle has advantages of big heating area, high heat-efficiency, homogeneous heating, short boiling time, controllable heating temperature ect. The inner layer of this kettle is made of austenitic stainless steel, equipped with pressure gauge, safety valve and gas cabinet, featured by good appearance, easy operation and reliable insulating property.
Our gas heating jacketed kettle Technical parameter:
Type |
capacity(L) diameter*depth(cm) |
Form |
Mixing speed(r/min) |
Inlet and outlet pipe diameter(inch) |
Power(KW) |
|
RG50-I RG50-II |
50 52X40 |
tilting agitation |
36 |
1/2’’ |
0.5 |
|
RG100-I RG100-II DRG1100-III |
100 66.4X48.2 |
tilting agitation vertical |
36 |
3/4’’ |
0.5 |
|
RG200-I RG200-II RG200-III |
200 85X57.5 |
tilting agitation vertical |
36 |
3/4’’ |
0.5 |
|
RG300-I RG300-II RG300-III |
300 100X65 |
tilting agitation vertical |
36 |
3/4’’ |
0.75 |
|
RG400-I RG400-II RG400-III |
400 100X75 |
tilting agitation vertical |
36 |
3/4’’ |
0.75 |
|
RG500-I RG500-II RG500-III |
500 110X85 |
tilting agitation vertical |
36 |
3/4’’ |
1.1 |
|
RG600-I RG600-II RG600-III |
600 120X95 |
tilting agitation vertical |
36 |
3/4’’ |
1.1 |

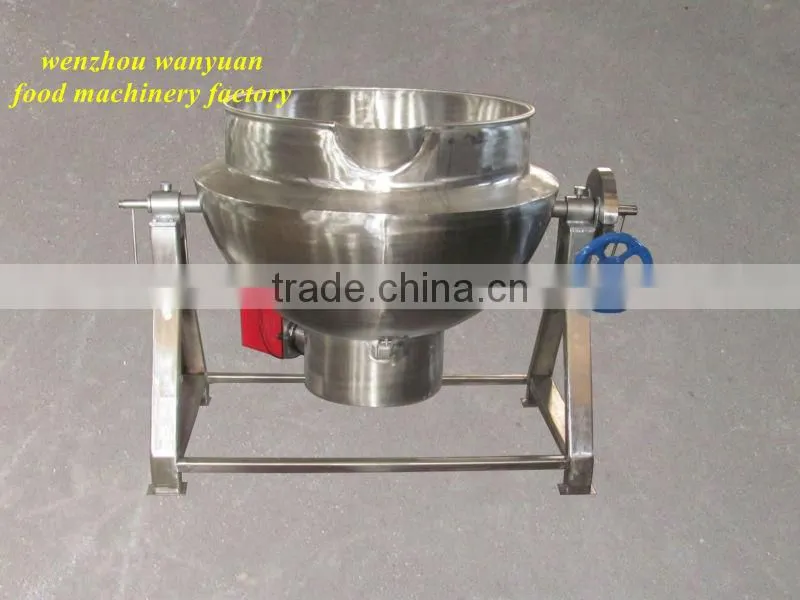

You can see the picture of our hot sell jacketed kettle as below:
for more information of jacketed kettle, contact me freely
also, you can let e now you need electric heaing jaceted kettle, or steam heating jacketed kettle.
we can offer you both of them with competitive price
