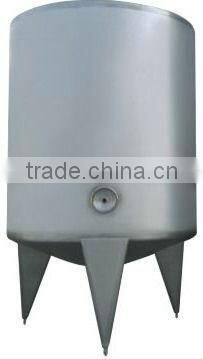

Stainless Steel Storage Tank With Air Filter

Name: Stainless Steel Storage Tank With Air Filter
Brand: wanyuan
SKU: 141367696
Availability: InStock

US$ 1,200 - 5,300 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

wanyuan

Wenzhou Longwan Wan Yuan Food Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name wanyuan

Model Number Sanitary Mixing Tank / 3 LAYER MIXING TANK

After-sales Service Provided Engineers available to service machinery overseas

Sanitary Mixing Tank / 3 LAYER MIXING TANK / story tank

Sanitary Mixing Tank

Single Layer Storage Tank:

Application Field:

Can be used as raw water, milk, juice or liquid storage tank, fully treated water, milk, juice or liquid storage tank, dosage tank, temporary storage tank, waiting for filling tank etc
Suitable for dairy, juice, beverage and pharmaceutical industry

Structure:

Standard Features:

Optional Feature:

Specifications:

Model	Capacity (L)	Tank Diameter (mm)	Height (mm)	Inlet & Outlet Pipe Diameter (mm)
SST-600	600	1000	2300	38
SST-1000	1000	1150	2530	38
SST-1500	1500	1280	2700	38
SST -2000	2000	1440	2910	51
SST -2500	2500	1520	3100	51
SST -3000	3000	1640	3200	51
SST -3500	3500	1700	3300	51
SST -4000	4000	1750	3500	51
SST -5000	5000	1880	3400	51
SSG-8000	8000	220	4050	51
SST -10000	10000	2400	4200	65
SST -15000	15000	2750	4600	65

Mixing Tank:

It can be used as dosage tank, material mixing tank in dairy, beverage and juice industry.

Specifications:

Model	Capacity (L)	Tank Diameter (mm)	Height (mm)	Inlet & Outlet Pipe Diameter (mm)	Agitator Motor Power (kW)	Agitator Speed (rpm)
JMT-600	600	1000	2300	38	0.75	14/18/24/28/ 35/47/56/70/94
JMT -1000	1000	1150	2530	38	1.1
JMT -1500	1500	1280	2700	38	1.1
JMT -2000	2000	1440	2910	51	1.1
JMT -2500	2500	1520	3100	51	1.5
