Home > Manufacturing & Processing Machinery > Rubber Machinery > Rubber Raw Material Machinery > Multiple-function Distillation & Concentration

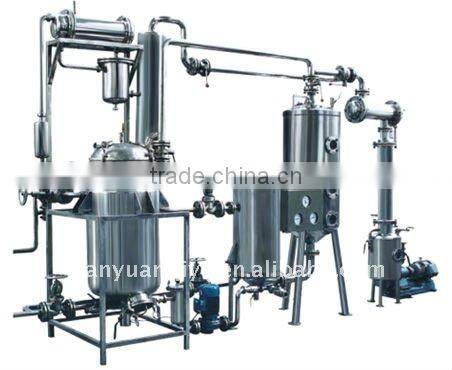

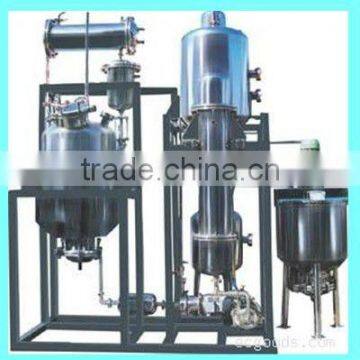

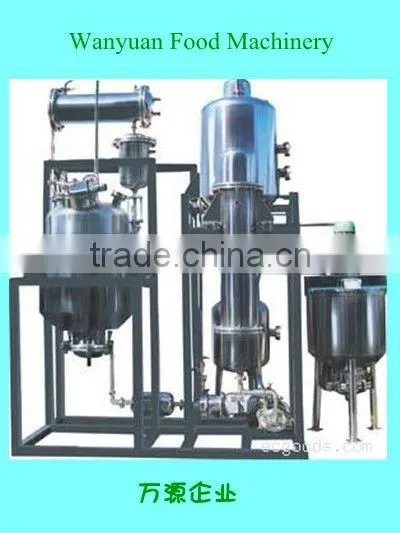

Multiple-function Distillation & Concentration

Name: Multiple-function Distillation & Concentration
Brand: WANYUAN
SKU: 141367500
Availability: InStock

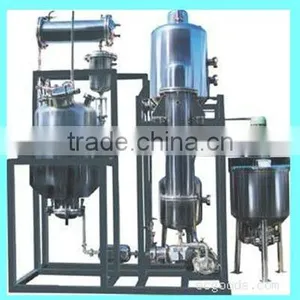

Multiple-function Distillation & Concentration thumbnail-1

Multiple-function Distillation & Concentration photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

WANYUAN

Contact Supplier Request Quote Chat Now

Wenzhou Longwan Wan Yuan Food Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Zhejiang, China

Brand Name WANYUAN

Model Number TNH series

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Features Mini Multiple-function Distillation&Concentration&Recycle Machine Group:

1, Alcohol recycling:

Big recycling capacity with vacuum contracting flow, 5-10 times of productivity than the old types, 30% of energy cost, small investment and big profit.

2, Contracting material:

Combination of external heating cycling and vacuum vaporizing, quick vaporizing speed, contracting rate 1:3; In the complete sealing, there is no foaming and the contracted medicine is not polluted and of strong medicine flavor. And it is easy to clean (cleaning can be done after opening the upper and lower lids). The machine is of easy operation, covers small area. The heater, vaporizer adopts the stainless steel heat keeping structure. The shell is stainless steel, and the surface is mirror processed and matted.

Main technical parameters:

Model	Extractor			Concentrator			Alcohol precipitation tank			Vacuum pump
Model	Volume (L)	Jacket working pressure (MPa)	Vessel working pressure (MPa)	Volume (L)	In-tank vacuity (MPa)	Heater working pressure (MPa)	Volume (L)	Jacket working pressure (MPa)	Motor power (KW)	Electric pressure (V)	Power (KW)
TNH-20	35	0.15	Normal pressur	35	0.06	<0.15	20	0.09	0.75	380	3
TNH-40	60	0.15	Normal pressure	60	0.06	<0.15	40	0.09	0.75	380	3
TNH-50	65	0.15	Normal pressure	65	0.06	<0.15	50	0.09	0.75	380	3
TNH-100	125	0.15	Normal pressure	125	0.06	<0.15	100	0.09	0.75	380	3
TNH-200	250	0.15	Normal pressure	250	0.06	<0.15	200	0.09	0.75	380	3
TNH-300	375	0.15	Normal pressure	375	0.06	<0.15	300	0.09	0.75	380	3
TNH-400	475	0.15	Normal pressure	475	0.06	<0.15	400	0.09	0.75	380	3
