Home > Agriculture & Food > Sap & Extract > Herbal Extract > Essential Oil Evaporate Concentrate Extract Tank Essential Oil Distiller

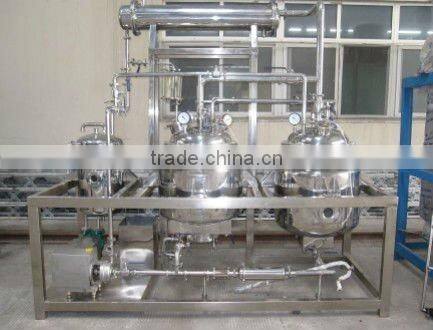

Essential Oil Evaporate Concentrate Extract Tank Essential Oil Distiller

Name: Essential Oil Evaporate Concentrate Extract Tank Essential Oil Distiller
Brand: WANYUAN
SKU: 141367502
Availability: InStock

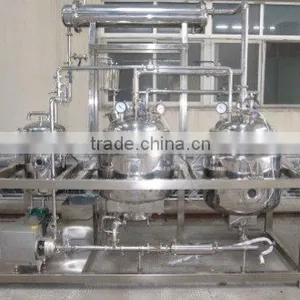

Essential Oil Evaporate Concentrate Extract Tank Essential Oil Distiller thumbnail-1

Essential Oil Evaporate Concentrate Extract Tank Essential Oil Distiller photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

WANYUAN

Model Number:

TNH series

Contact Supplier Request Quote Chat Now

Wenzhou Longwan Wan Yuan Food Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name WANYUAN

Model Number TNH series

Features Mini Multiple-function Distillation&Concentration&Recycle Machine Group:

The machine-group is a new generation product on the base of introduction of the advantages of the foreign counterparts,integrating multiple-distillation,vacuum concentration and menstruum recycle,simplifying the operation procedure.Meanwhile the whole distillation,concentration and recycle is finished in the enclosed flow routine,avoiding the leakage energy consumption.The contact part of the concentrator and the material is made with the stainless steel,resistant to corrosion and meeting the standard of the GMP.The machine is suitable is suitable to distill and concentrate liquid of Chinese herbal medicine and syrup and recycle the organic menstruum.

Main technical parameters:

Model	Extractor			Concentrator			Alcohol precipitation tank			Vacuum pump
Model	Volume (L)	Jacket working pressure (MPa)	Vessel working pressure (MPa)	Volume (L)	In-tank vacuity (MPa)	Heater working pressure (MPa)	Volume (L)	Jacket working pressure (MPa)	Motor power (KW)	Electric pressure (V)	Power (KW)
TNH-20	35	0.15	Normal pressur	35	0.06	<0.15	20	0.09	0.75	380	3
TNH-40	60	0.15	Normal pressure	60	0.06	<0.15	40	0.09	0.75	380	3
TNH-50	65	0.15	Normal pressure	65	0.06	<0.15	50	0.09	0.75	380	3
TNH-100	125	0.15	Normal pressure	125	0.06	<0.15	100	0.09	0.75	380	3
TNH-200	250	0.15	Normal pressure	250	0.06	<0.15	200	0.09	0.75	380	3
TNH-300	375	0.15	Normal pressure	375	0.06	<0.15	300	0.09	0.75	380	3
TNH-400	475	0.15	Normal pressure	475	0.06	<0.15	400	0.09	0.75	380	3
