Back Pressure Autoclave Sterilizer Canned Food Sterilizer Retort

Back Pressure Autoclave Sterilizer Canned Food Sterilizer Retort thumbnail-1
Back Pressure Autoclave Sterilizer Canned Food Sterilizer Retort thumbnail-2
Back Pressure Autoclave Sterilizer Canned Food Sterilizer Retort thumbnail-3
Back Pressure Autoclave Sterilizer Canned Food Sterilizer Retort thumbnail-4
Back Pressure Autoclave Sterilizer Canned Food Sterilizer Retort photo-1
Back Pressure Autoclave Sterilizer Canned Food Sterilizer Retort photo-2
Back Pressure Autoclave Sterilizer Canned Food Sterilizer Retort photo-3
Back Pressure Autoclave Sterilizer Canned Food Sterilizer Retort photo-4
US$ 6,800 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
wanyuan
Contact Supplier Request Quote Chat Now
Wenzhou Longwan Wan Yuan Food Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name wanyuan
Model Number GT7CW 1200
Usage Canned Food
Type Autoclave
Voltage 110v~450V
Power(W) 3KW
Weight 800KG
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas
canned food sterilizer / autoclave sterilizer Product Description

what is a canned food sterilizer autoclave?

sterilizer or autoclave is a kind of back pressure vessel, mainly ued to the sterilization of sea food in tin can, glass jar or vegetable in vacuum package.  of course, this kind of autoclave can be also used to other food in glass bottle and platic botles.



sterilizer / autoclave can be called as autoclave sterilizer, or sterilizer. some times people call them retort or retort sterilizer.

back pressure autoclave sterilizer canned food sterilizer retort


canned food sterilizer / autocalve spection of the GT7CW 1200 <horizontal autoclave sterilizer DN1100 x 2000>



Model

GT7CW1200











Pot body size(mm)

Φ1100*2000











volume (m3)

2000L



design temperature(0C)

143 0C



operating temperature(0C)

≤138 0C



design pressure(Mpa)

0.3MPa



working pressure(Mpa)

steam≤0.25Mpa  electrical heating≤0.16Mpa



working medium

Salt, water, steam, compressed air



The main pressure parts material

SS303 / SS316 / carbon steel Q235-A



welding coefficient

0.7



corrosion allowance

1mm



Steam inlet diameter

DN40-50



Exhaust diameter

DN32-40



Cool and hot water Connection pipe diameter

DN40-50



Overflow pipe diameter

DN25-50



Water outlet Pipe diameter

DN40-50



Safe valve diameter(mm)

DN25-50



Compressed air diameter(mm)

DN15-20



Adjust mouth diameter(mm)

DN25-40



Steel Thickness (mm)

6(thickness can be adjust according to request)



Total Weight (kg)

800



overall dimension

2400*1650*1700



canned food sterilizer Packaging & Shipping

our canned food sterilizer / autoclave sterilizer usually packaged in wooden case which is suitable for sea transport

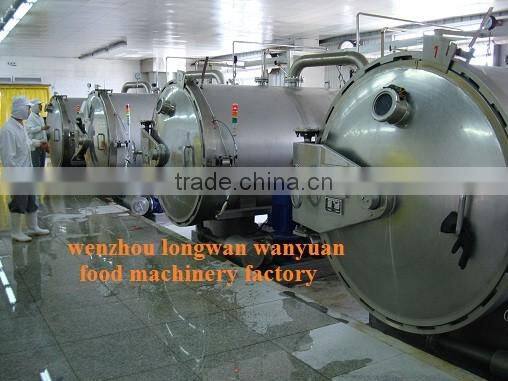

back pressure autoclave sterilizer canned food sterilizer retort

canned food sterilizer certificate of the autoclave
back pressure autoclave sterilizer canned food sterilizer retort
autoclave sterilizer for canned food / back pressure sterilzier retort, autoclave retort
