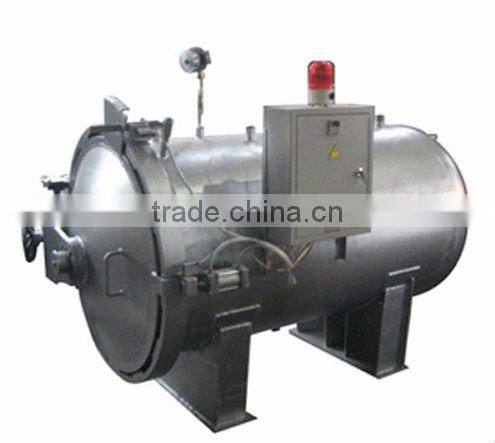

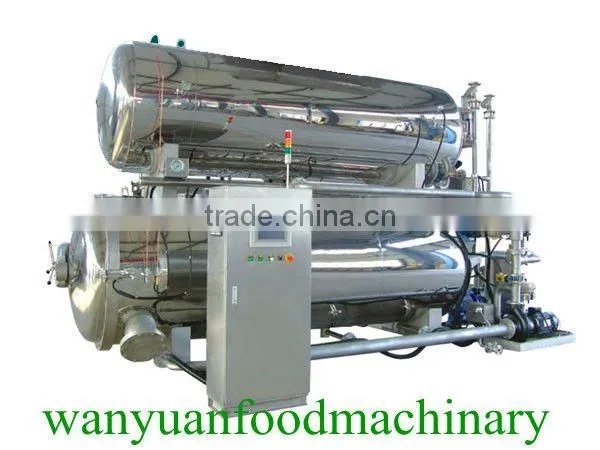

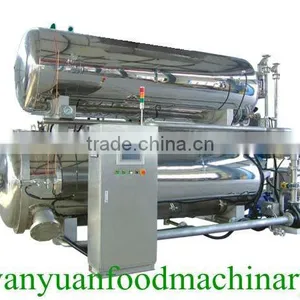

automatic autoclave retort for canned food
Details about horizontal autoclave retort :
automatic autoclave retort for canned food Usage:
- Automatic horizontal sterilizer is being used widely in food,beverage,dairy,pharmacy processing industries,it can be used to sterilize various kinds of packaged food,such as glass bottle,plastic bottle,retort pouch,can package,ampoule,etc;
- It can guarantee the best quality,flavor,color of the sterilized-food.It has three sterilizing methods---circulating hot water sterilization,steam sterilization,shower-type sterilization;
automatic autoclave retort for canned food Advantages:
- Automatic horizongtal sterilization has a large heating area,even heating,high thermal efficiency,short liquid-boiling time,easily-controlled heating temperature,long useful life;
- Its pot is made of Autenitic Stainless Steel,non-corrosive,anti-acid,anti-alkali;
- With pressure gauge and safety valve,safe and reliable;
- It has a artistic figuration,easy to install and operate.

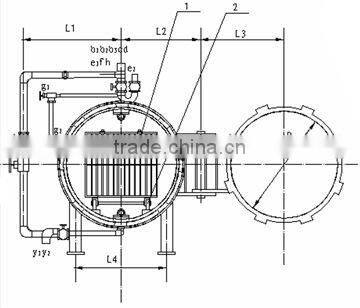

automatic autoclave retort for canned food Main technical parameters:
Parameter | GT7C720type | GT7C1200type | GT7C2000type | GT7C2400type | |
Variety range apellation | The low press container | ||||
Work capacity | 720 | 1200 | 2000 | 2400 | |
Volume (m3) | 900 | 1000 | 1100 | 1200 | |
Inside diameter | 1.2 | 2.0 | 3.5 | 4.2 | |
Design temperature(c) | 143 | ||||
Work temperature(c) | 126 | ||||
Design pressure (Mpa) | 0.3 | ||||
Work pressure (Mpa) | 0.15 | ||||
Work medium (Mpa) | Water,steam,air compression | ||||
Main element material | A3 | ||||
Jointing seal coefficient | 0.7 | ||||
Corrosive degree | 1 | ||||
Device net weight | 600 | 1100 | 1700 | 2000 | |
Size(mm) | length | 2100 | 2800 | 3700 | 4000 |
width | 1300 | 1450 | 1600 | 1600 | |
height | 1650 | 1700 | 1800 | 1900 | |
Parameter | GT7C720type | GT7C1200type | GT7C2000type | GT7C2400type | |
Variety range apellation | The low press container | ||||
Work capacity | 720 | 1200 | 2000 | 2400 | |
Volume (m3) | 900 | 1000 | 1100 | 1200 | |
Inside diameter | 1.2 | 2.0 | 3.5 | 4.2 | |
Design temperature(c) | 143 | ||||
Work temperature(c) | 126 | ||||
Design pressure (Mpa) | 0.3 | ||||
Work pressure (Mpa) | 0.15 | ||||
Work medium (Mpa) | Water,steam,air compression | ||||
Main element material | A3 | ||||
Jointing seal coefficient | 0.7 | ||||
Corrosive degree | 1 | ||||
Device net weight | 600 | 1100 | 1700 | 2000 | |
Size(mm) | length | 2100 | 2800 | 3700 | 4000 |
width | 1300 | 1450 | 1600 | 1600 | |
height | 1650 | 1700 | 1800 | 1900 | |
automatic autoclave retort for canned food
