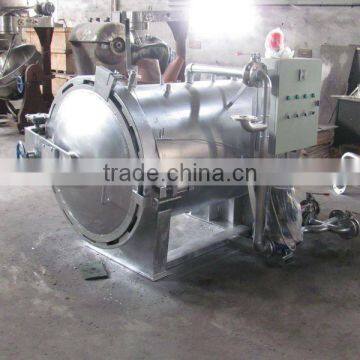

water spray sterilizer retort ( for chicken wings in vacuum bag)

water spray sterilizer retort

water spray sterilizer retort for chicken wings in vacuum bag  glass jar sterilizer retort

offer cheap automatic pouch retort sterilizer

1. steam Retort autoclave
2. glass jar sterizing equipmet

3. from DN800 to DN1500

 water spray sterilizer retort

 How to use wanyuan sterilizer retort autoclave

1.  water spray sterilizer retort WATER FILLING

Prior to the start of the process, the retort is filled with a small volume of

process water (approx. 27 gallons/basket) such that the water level is below

the bottom of the baskets.  This water can be used for successive cycles if

desired, as it is sterilized with each cycle.

2.  water spray sterilizer retort HEATING

Once the cycle is begins, the steam valve opens and the circulation pump is

switched on.  retort autoclave steriliztion equipment for glass botles The mixture of steam and water spraying from the top and the

sides of the retort vessel creates highly turbulent convection currents that

rapidly homogenizes the temperature at every point in the retort and

between the containers.

3. water spray sterilizer retort  STERILIZATION

Once the programmed sterilization temperature has been reached, it is held

for the programmed time within +/- 1º F. wenzhou wanyuan offer meat can retort steam spray retort autoclave Similarly, the pressure is kept

within +/- 1 psi by adding and venting compressed air as needed.

4.  water spray sterilizer retort COOLING

At the end of the sterilization step, the retort switches into cooling mode.  As

the process water continues to be circulated through the system, a portion of

it is diverted through one side of a plate heat exchanger. wenzhou wanyuan offer fresh milk retort sterilzer,  At the same time,

cold water passes through the other side of the plate heat exchanger.  This

results in the process water inside the retort chamber being cooled in a

controlled fashion.

5. water spray sterilizer retort  END OF CYCLE

  water spray sterilizer retort for chicken wings in vacuum bag

Once the retort is cooled to the programmed temperature setpoint, the cold

water inlet valve on the heat exchanger closes and the pressure inside the

retort is automatically relieved.  wenzhou wanyuan offer best price sterilizer retort for glass jar a pouch The water level is lowered from the

maximum down to the medium level.  The door is equipped with a safety

locking device which prevents the opening of the door in the case of residual

pressure or high water level.

water spray sterilizer retort sterilizer retort steam spray

sterilization baskets and trolley  all made of stainless steel

  water spray sterilizer retort for chicken wings in vacuum bag

water spray sterilizer retort the inner side of the retort autoclave -- the sterilization baskets

upper side of the inner equipment retort

for more detil information about out cheaest RETORT STERILIZER AUTOCLAVE,

please contact usfeely

 water spray sterilizer retort water spray sterilizer retort for chicken wings in vacuum bag

our certificate CE ISO  automatic pouch retort sterilizer

for more information of automatic pouch retort sterilizer , contact me freely

  water spray sterilizer retort for chicken wings in vacuum bag

water spray sterilizer retort
