DN900 x 1500 Pouch Food Sterilizer Retort

DN900 x 1500 Pouch Food Sterilizer Retort photo-1
US$ 4,500 - 25,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
wanyuan
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name wanyuan
Model Number GT7CW ...
Usage Meat
Type Autoclave
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

cheap price pouch sterilizer (glass jar) / retort sterilizer for milk bottle / retort sterilizer for bottle

sterilizer for milk and juice with galss jar packing
121 degree C sterilizer temp
15psi pressure

wenzhou wanyuan food machinery factory is a leading manufacture of food retort sterilizer.

we also call this retort machine as sterilizer autoclave or autoclave retort,

suitable for the sterilization of galss jar for juice, milk, tea, ans canned food, etc.



our sterilizer equipment can be steam heating and gas heating as well as electric heating type.

from the size, we have DN800*1000 DN900*1500 DN 1100*2000 and this retort sterilizer can be customized





here are the specification of our pouch retort sterilizer,

if you wan to know how this retort sterilizer works, and how to operate the autoclave sterilzer,

please feel free to contact us.



Model

GT7CW720

GT7CW1200

GT7CW2000

GT7CW2400

production capacity (cans/batch)

720

1200

2000

2400

Pot body size(mm)

Φ900*1500

Φ1100*2000

Φ1200*3000

Φ1200*3500

volume (m3)

1.1

2.2

3.9

4.5

design temperature(0C)

143 0C

operating temperature(0C)

≤138 0C

design pressure(Mpa)

0.3MPa

working pressure(Mpa)

steam≤0.25Mpa  electrical heating≤0.16Mpa

working medium

Salt, water, steam, compressed air

The main pressure parts material

SS303 / SS316 / carbon steel Q235-A

welding coefficient

0.7

corrosion allowance

1mm

Steam inlet diameter(mm)

DN40-50

Exhaust diameter(mm)

DN32-40

Cool and hot water Connection pipe diameter

DN40-50

Overflow pipe diameter(mm)

DN25-50

Water outlet Pipe diameter(mm)

DN40-50

Safe valve diameter(mm)

DN25-50

Compressed air diameter(mm)

DN15-20

Adjust mouth diameter(mm)

DN25-40

Steel Thickness (mm)

6(thickness can be adjust according to request)

Total Weight (kg)

700

982

1302

1391

overall dimension

mm(L×H×W)

2000*1450*1232

2520*1600*1440

3550*1750*1550

4050*1750*1550

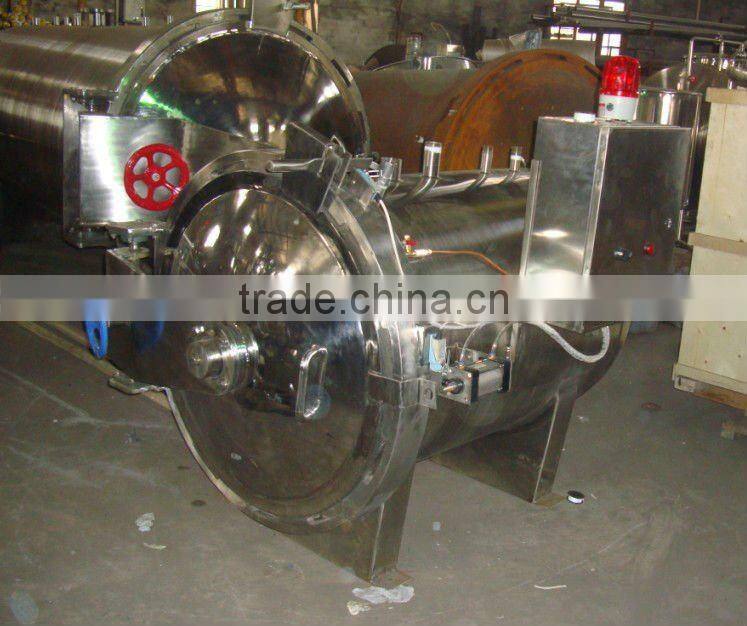

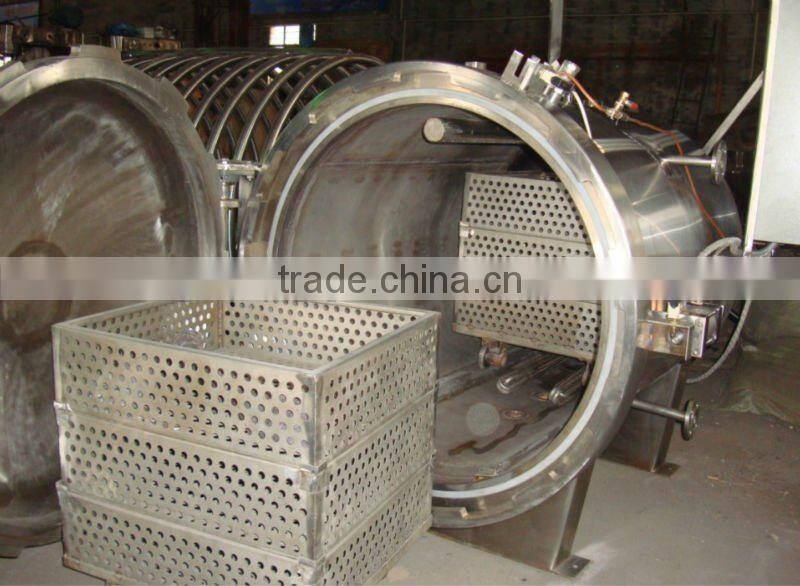

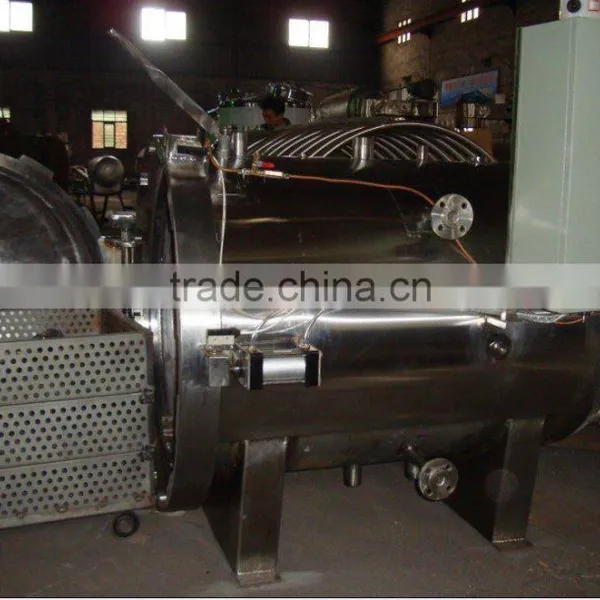

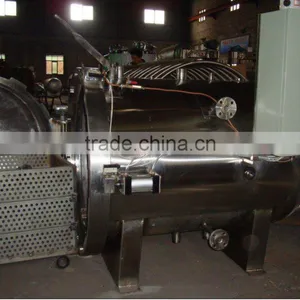

 here are some picture of this glass jar retort / pouch sterilizer autoclave

DN900 x 1500 pouch food sterilizer retortDN900 x 1500 pouch food sterilizer retort
