tunnel sterilizer for glass bottles / glass bottle sterilization machine / sterilizer for glass jar
1. sterilizer retort autoclave Principal features
This machine has 5 temperature sections , temperature difference between section is small . It could assure good sterilizing effects, reduce bottle broken rate . Hot water is recycled to use in temperature sections in order to save heat energy and reduce water consumption .This machine could process bottled beverage or beer products , which completely conforms to relevant technologic requirements .
2. sterilizer retort autoclave Principal parameter
Model |
PLS-1000 |
PLS-2000 |
PLS-3000 |
PLS-5000 |
MAX sterilizer temp |
100°C |
|||
Sterilization conveyor belt width |
1500mm |
|||
Sterilization conveyor belt speed |
110-553mm/min(infinitely variable speeds) |
|||
Heating steam pressure |
0.4MPa |
|||
Sterilization length mm |
9000 |
16000 |
22000 |
32000 |
Precooling length mm |
1200 |
1600 |
1800 |
2200 |
Cooling length mm |
3000 |
5000 |
8000 |
10000 |
Heating cycle water M3 |
21 |
25 |
35 |
50 |
Voltage Kw |
9.6 |
10.6 |
13.6 |
16.5 |
Equipment external dimensions |
8880 |
9880 |
11800 |
14880 |
2250 | ||||
1735 | ||||

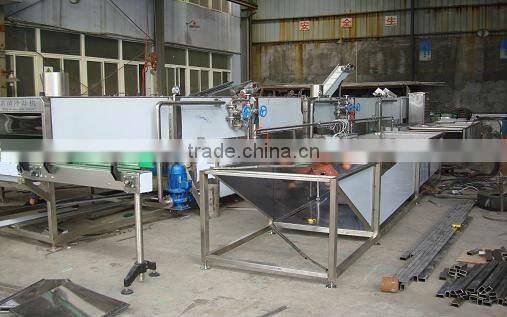

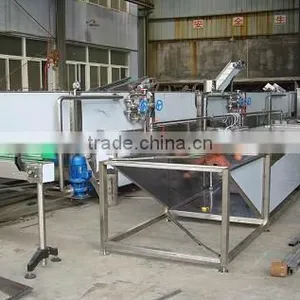

3. tunnel sterilizer picture
