Help CenterRT Serie Small Scale Sugar Processing Equipment
Related Products
Specifications
Sugar refining equipment
lting tank,5-500hl
2.Sugar melting equipment,sugar dissolving system,small scale sugar processing equipment
3.material,stainless steel304/316L
Small scale sugar processing equipment
sugar melting system

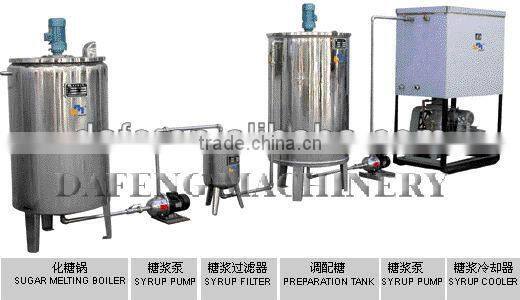

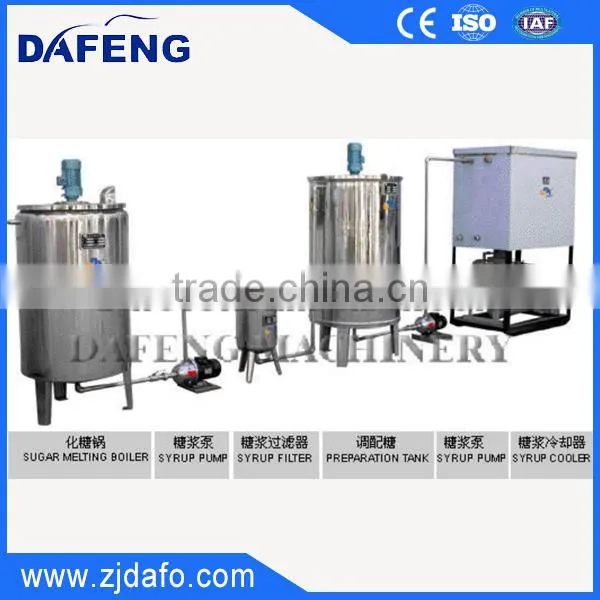

Process-Sugar melting boiler,syrup pimp,syrup filter,preparation tank,syrup pump,syrup cooler
In the beverage industry, sugar is mostly processed as a watery solution. Therefore, the first step is the production of a standardized sugar syrup. The concentration is between 60 ... 67° Brix. Discontinuous and continuous processes are applied in the beverage industry.
Discontinuous process with Sugar Melting Tank
For discontinuous processes mixers are used, the capacity of which can vary according to the prepared granular sugar quantity. The required quantity of well-tempered dissolving water is provided in the mixer. By means of a pneumatical or mechanical conveyor the granular sugar is fed to the mixer. When the dissolving procedure is finished, the sugar syrup is filtered and pasteurised and then, in a filtered condition, passed on to a buffer tank.
Continuous process with hot/cold Sugar Melting Tank
The continuous processes can be divided into cold and hot dissolving procedures. These procedures require a granular sugar silo and a corresponding tank capacity for sugar syrup. Granular sugar and dissolving water are fed to the dissolving tank in the desired ratio. A circulating pump ensures a homogeneous suspension. A partial flow is supplied to the buffer tank, either via a gap filter (cold dissolving) or a pasteurisation (hot dissolving) with integrated filtration and deaeration.
Special features:
High, constant product quality
Little wear, i.e. low maintenance requirements
Cleanability of the system
Melting Tank(dissolving Tank) | ||||||
Model |
Volume |
Size |
Medium Inlet/outlet |
|||
ID |
OD |
L |
H |
|||
ACT-1000 |
1000L |
1100 |
1220 |
900 |
2200 |
40A |
ACT-2000 |
2000L |
1350 |
1470 |
1000 |
2600 |
|
ACT-4000 |
4000L |
1700 |
1820 |
1100 |
3000 |
|
ACT-6000 |
6000L |
1900 |
2020 |
1150 |
3450 |
|
ACT-8000 |
8000L |
2100 |
2220 |
1300 |
3700 |
|
ACT-10000 |
10000L |
2300 |
2420 |
1400 |
3850 |
|
ACT-15000 |
15000L |
2700 |
2820 |
1650 |
4150 |
|
ACT-20000 |
20000L |
3000 |
3120 |
1800 |
4400 |
50A |
ACT-50000 |
50000L |
3000 |
3120 |
1800 |
9000 |
65A
|
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
