Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Mango Juice Processing Machines

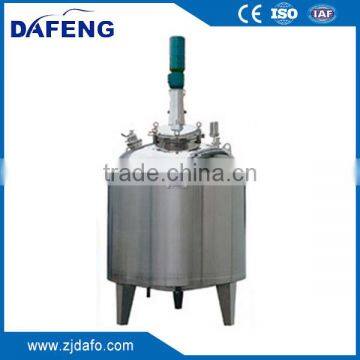

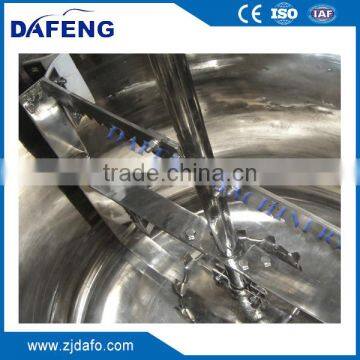

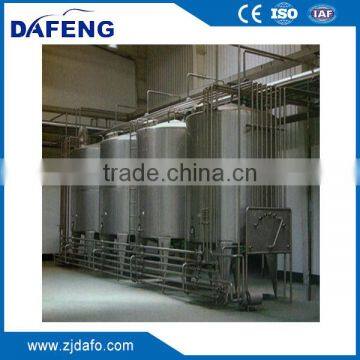

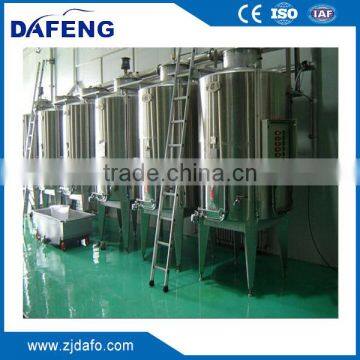

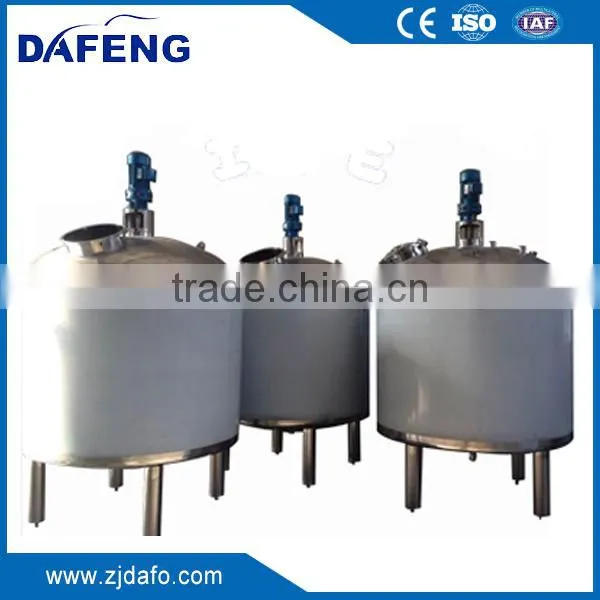

Mango Juice Processing Machines

Advanced Tech. Co., Ltd. Wenzhou

Mango Juice Processing Machines thumbnail-2

Mango Juice Processing Machines thumbnail-3

Mango Juice Processing Machines thumbnail-4

Mango Juice Processing Machines thumbnail-5

Mango Juice Processing Machines thumbnail-6

US$ 800 - 30,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Agitator

Product Type:

Other, Mango juice

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Agitator

Product Type Other, Mango juice

Application Liquid with Suspended Solids

Additional Capabilities Granulating

Place of Origin Zhejiang, China

Brand Name DF

Model Number DFMT

Max. Loading Capacity 5000L

Voltage 380v

Power(W) 11KW

Dimension(L*W*H) can be adjusted

Certification CE,ISO9001/GMP standard

Warranty 2 years

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Our company, is experienced in many fruits processing, such as apple, orange, pear, apricot, peach, banana, strawberry, blueberry, watermelon, Mango, Iran date, Durian, Mangosteen, Lichi, Jackfruit, etc. and many kinds of vegetables, such as cucumber for Vietnam customer, salted vegetables, etc.

If you are interested in our machines, please contact directly. we are happily to work with you.

A large variety of fruits can be used to obtain by the appropriate technological process different kinds of semi - finished product starting from fresh fruits just harvested from field or stored in controlled atmosphere warehouses.

The most common semi - finished products are:

Puree’ single strength or concentrate

Cloudy or pulpy juices single strength or concentrate

Clear juice single strength or concentrate

For cloudy juices or fruit puree it is essential that the original content of pectin shall be retained throughout the production. In this case fruit enzymes must be inactivated during processing as soon as possible by pre-heating process.

For clear, filtered juices a breakdown of pectin is needed to enable a good yield and high degree of juice concentration,

As we said above all the semi-finished product can be single strength or concentrated.

With the evaporation process, taking out part of the water from the fruit, the juice concentrates can be considered as concentrated sugar-acid solution.

Basically there two system for the concentration:

The puree and pulpy juices are concentrated by a forced circulation evaporators(big capacity) or Sandwich Pot (small capacity). The biggest difference between them is investment. Sandwich pot just need little investment, but only or small amount product.

For clear juice the evaporator is always a multiple effect but the so called "falling film type" , of course, Sandwich port also can be used in the clear juice concentrate for small capacity.

The product is sterilized before packaging by a tube in tube heater for puree, and pulpy products, or plate heat exchanger in case of clear or cloudy juices providing that the fibers content is below 5%.

After cooling the sterilized product is sent to dedicated filler depending from the needed output.

The fruit process obviously depends from the raw material and the required final product.

If you are interested in our machines, please contact us Our engineers will supply more information which you may need.

The beverage and fruit juice processing line can begin from fresh fruit or from concentration juice including:
1.Storage Tank
2. High Speed Mixing Vessel
3. Separator Equipment
4. Plate UHT Pasteurizer
5.Multi-pipe UHT sterilizer
6. Conveyor
7. Washing, Filling & Capping Machine
8. Bottle Inverse Sterilizer
9. Tunnel Sterilizer
10. Labeling Machine
11. CIP Equipment etc

12. Crusher, Pulper, Juicer

13. Concentration Equipment

The end packaging can be PET bottles, glass bottles and cans.
The capacity fruit juice processing line machinery of can be designed according to your request

Company Information

Our company’s advantages over other companies:

Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.

We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.

Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

Our Services

Our company’s quality certification:

We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.

Our company’s customer segmentation:

Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,

Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.

Packaging & Shipping

Shipment

Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.

Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
