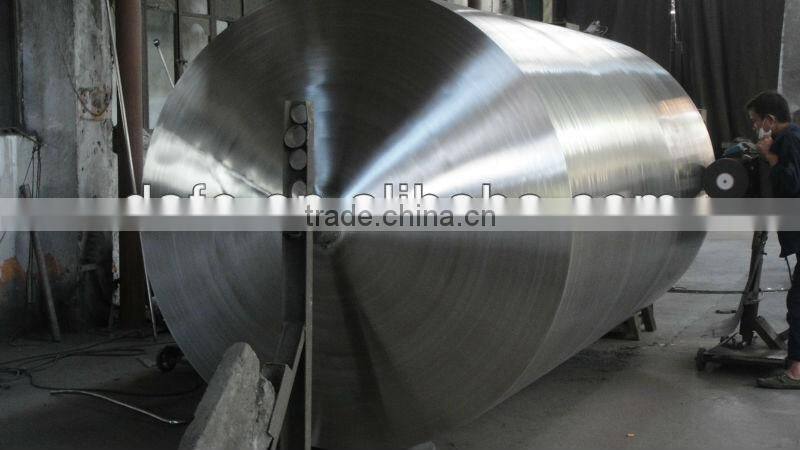

ZG series horizontal stainless steel storage tank
- 50 Set / Sets per Month
- ningbo or shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | DAFENG | Model Number | DF | |
| Processing Types | Water | Voltage | Customized | |
| Power(W) | Customized | Weight | 50-1500kgs | |
| Dimension(L*W*H) | Made-custom | Certification | CE,ISO9001 |
Product Description
ZG Series Stainless Steel Storage Tank
Use: This equipment is suitable for storing and transfering the material in pharmaceutical, foodstuff and chemical industry,etc.
This equipment has two types: vertical type and the horizontal-type.
The equipment is equipped with thermometer,liquidometer,sight glass,pneumostome,liquid material inlet,liquid material outlet,CIP washing hole,etc.The surface of inside and outside are with mirror polishing and get to pharmaceutical and foodstuff hygienic standard
Vertical Dimensions
| Nominal volume | The total height of the tank | Shell height | External diameter of the barrel | Discharging height |
| 500L | 1725 | 800 | 850 | 350 |
| 1000L | 1950 | 900 | 1100 | 350 |
| 2000L | 2500 | 1300 | 1300 | 400 |
| 3000L | 2800 | 1500 | 1500 | 400 |
| 5000L | 3100 | 1650 | 1800 | 400 |
| 6000L | 3350 | 1800 | 1900 | 450 |
| 8000L | 3600 | 1950 | 2100 | 450 |
| 10000L | 3800 | 2000 | 2300 | 500 |
| 20000L | 5350 | 3400 | 2600 | 500 |
This is a kind of stainless steel tank/ vessel. It can be used for storing chemicals inside or producing chemical products by reaction. It can be used in brewing, foodstuff, beverage, pharmaceutical industry, adhesive production and other chemical industries.
It has great advantages as the following:
A) Good quality materials (eg: SS plates, flanges, pipes, bolts, nuts, etc. ) made and sourced from validated manufacture; The material of the tank is anti-corrosion and abration resistant.
B) Fine procedure conducted by qualified and skilled workers. The quality ratio of welding seams can reach 95% before RT.; The internal and external surfaces are polished, with roughness of Ra0.05um.
C) Fine appearance. The surface of the machine (both inside and outside) looks good and feels smooth, and welding seams are treated perfectly, so you cann't easily find the trace of welding.
D) Strict inspections following each production procedure (material incoming, component forming, welding, assembling, surface treatment, final completion).
E) Environment- friendly; All these equipments are manufactured as per optional standard of GMP, ISO9001 and others to meet our customers' requirements. The reactor can be made in variable specifications and different sizes according to our customers' need.
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
