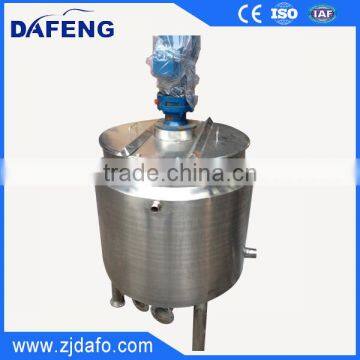

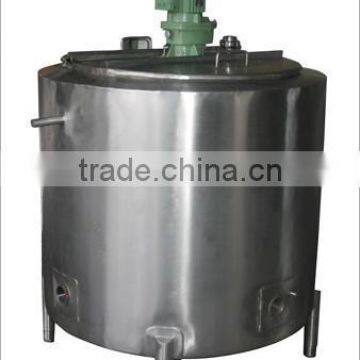

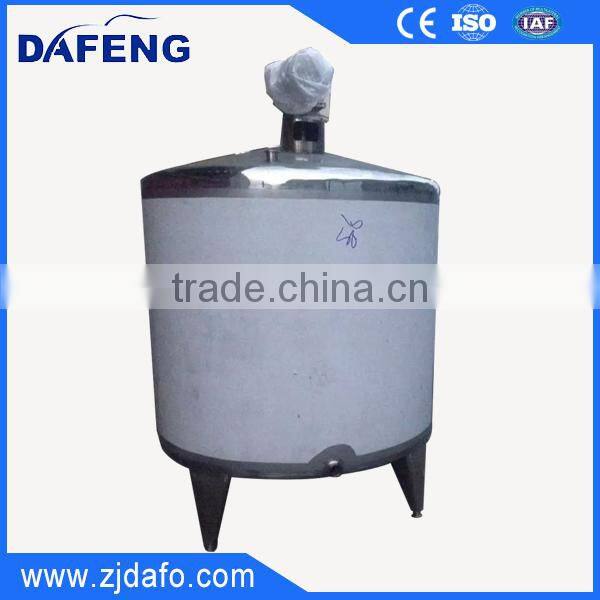

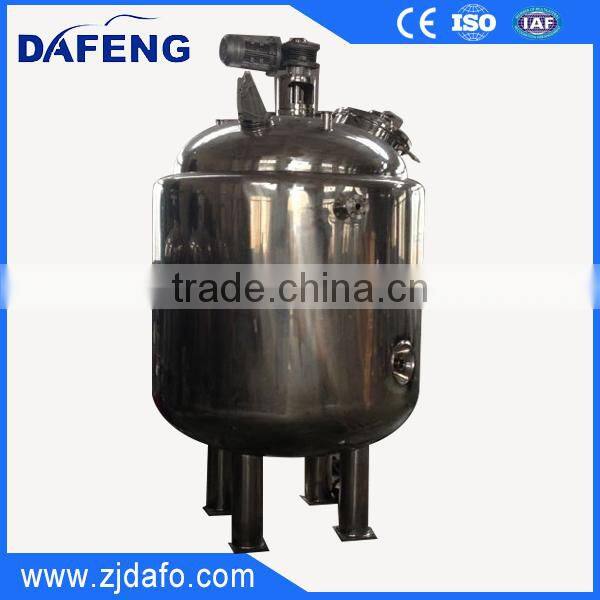

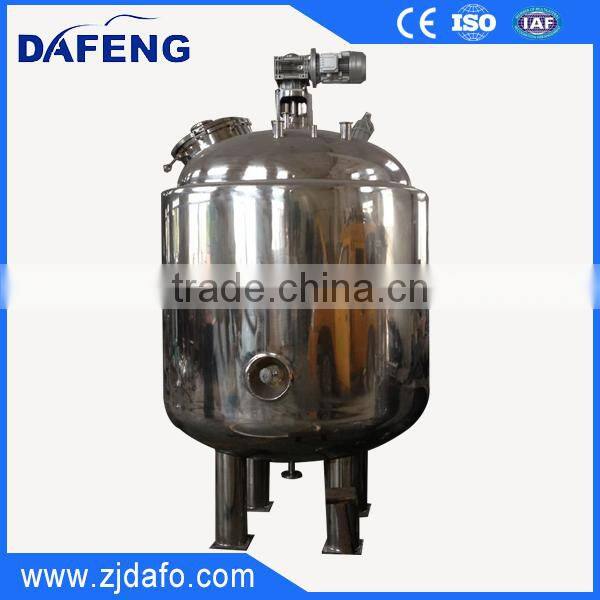

1000L Sanitary SS Heating & Cooling storage tank
Applicable range:used as liquid storage tank,liquid mixing tank, ect. Apply to fields such as foods, dairy products, fruit juice beverages.
Structure Characteristics:

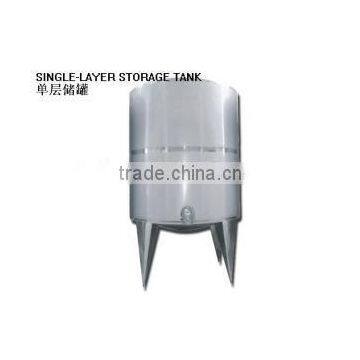

1.we can supply you with single-layer, dual-layer or three-layer
2.Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4.Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
nnection style: quick-installed, flange, thread,screw
6.polish:3A interior surface and 2B exterior surface
7. Isolation materials: PU foam
8. Heating types:direct steam, electric and gas
9.we can supply the tank with range from 500L to 20,000L or even larger
Configuration of tank: Manhole, CIP cleaner ,Adjustable triangle bracket ,Thermometer ,Liquid lever meter and controller , Dismountable Inlet assembly ,Sanitary breathing cover.
|
working volume (L) |
dimension of tank (mm*mm) |
total height (mm) |
diameter of inlet&outlet (mm) |
| 500 | 800*1000 | 2550 | 51 |
| 1500 | 1100*1500 | 2850 | 51 |
| 2000 | 1200*1800 | 2900 | 51 |
| 6000 | 1700*2600 | 3500 | 51 |
| 10000 | 2100*2800 | 4050 | 51 |
| 20000 | 2200*5500 | 5400 | 51 |
|
working volume (L) |
motor power (kw) |
heat preservation layer (mm) |
Blending speed (r/min) |
| 500 | 0.75 | 80 | 960 |
| 1500 | 1.1 | 80 | 960 |
| 2000 | 1.1 | 80 | 960 |
| 6000 | 2.2 | 80 | 960 |
| 10000 | 3 | 80 | 960 |
We can provide clients onestop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
