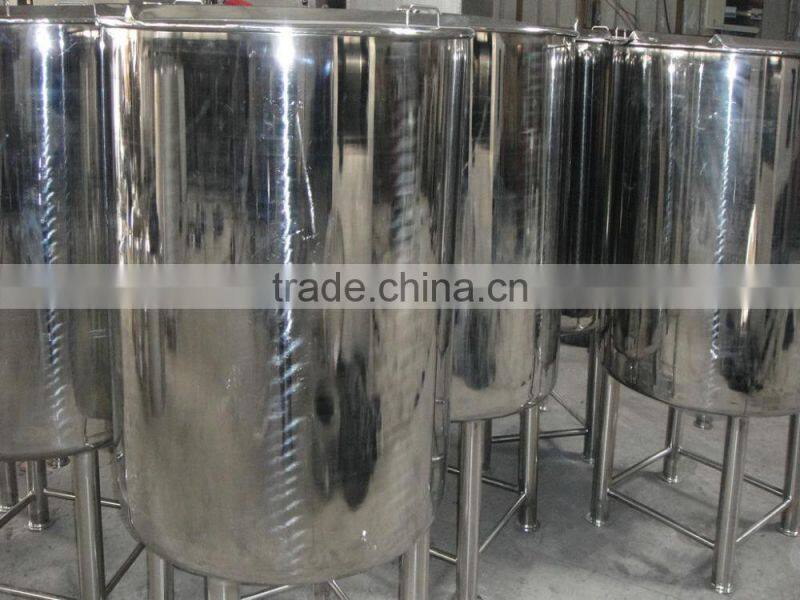

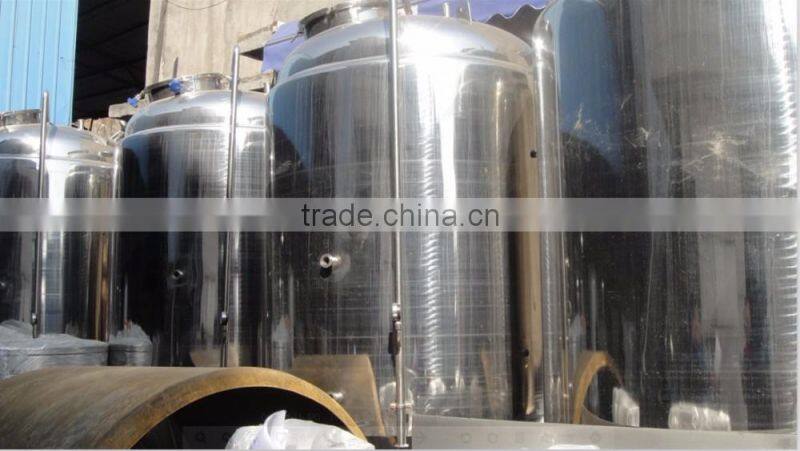

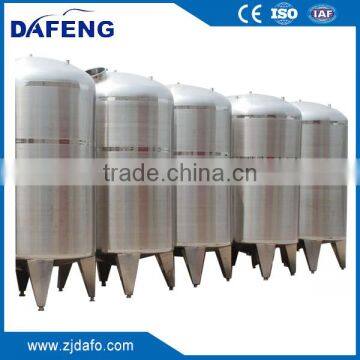

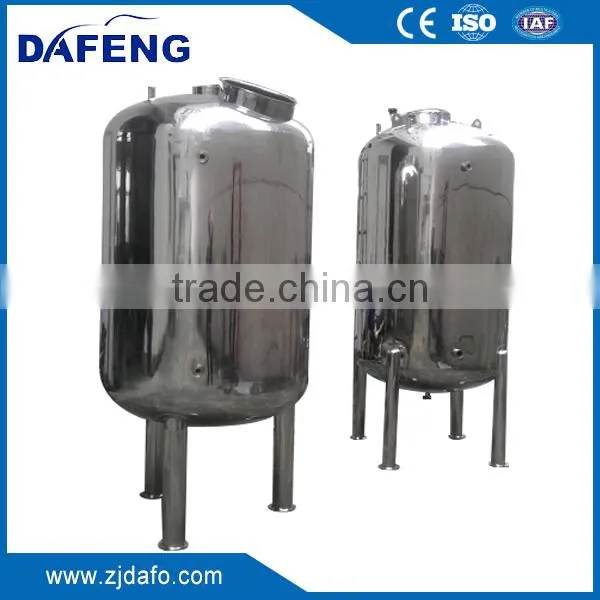

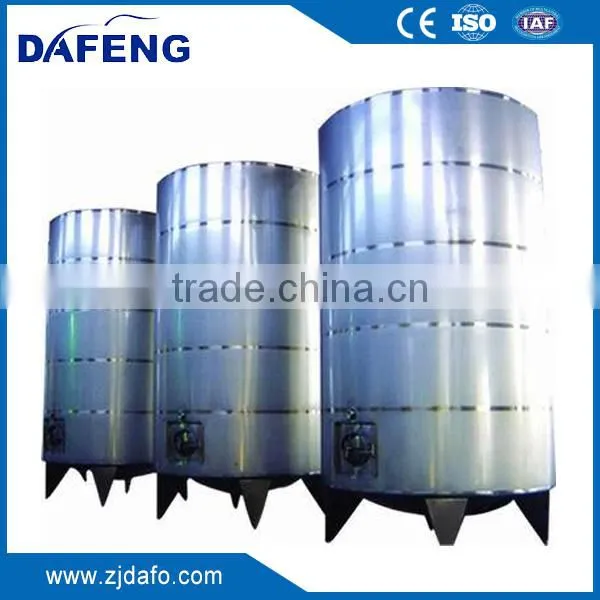

Help Center500L-50000L Sanitary Grade Liquid Storage Tank
Related Products
-
Stainless Steel Asepsis Storage TankUS$ 2,000 - 10,000MOQ: 1 Set -
Horizontal Stainless Steel Water Storage TankUS$ 900 - 8,000MOQ: 1 Set
-
Stainless Steel Mixing Tanks/Agitator TanksUS$ 200 - 5,000MOQ: 1 Set
-
Stainless Steel Alcohol Storage TankNegotiableMOQ: 1 Set
-
High Quality Stainless Steel Storage TankUS$ 1,500 - 5,000MOQ: 1 Set

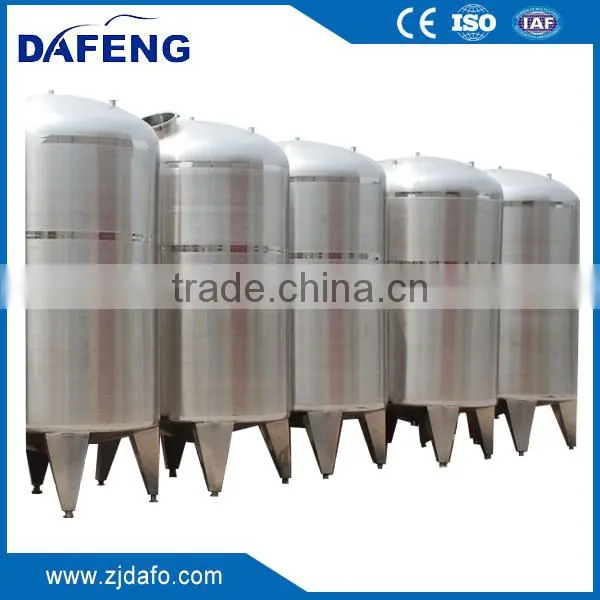

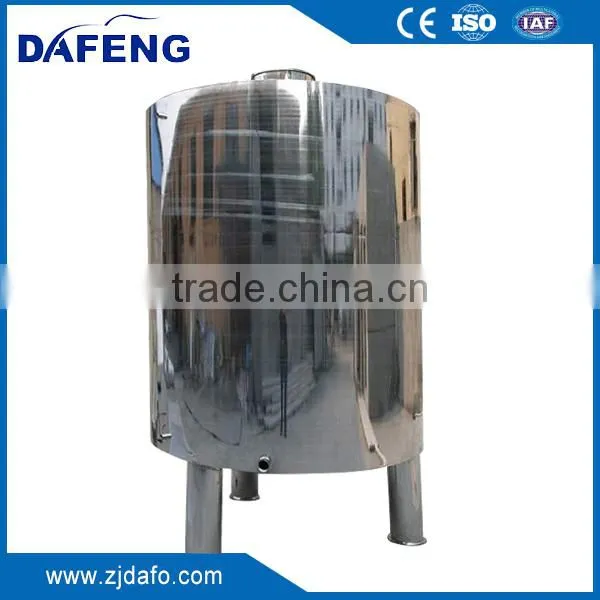

Specification-Product name: Stainless steel aseptic storage tank(Food Grade Water Storage Tanks, water storage tank)
2. Humanized structure design and easy to operate.
3. Polish inside outside
Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering
Structure characteristics:
1. Made of single-layer stainless steel structure.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation
Configuration of tank:

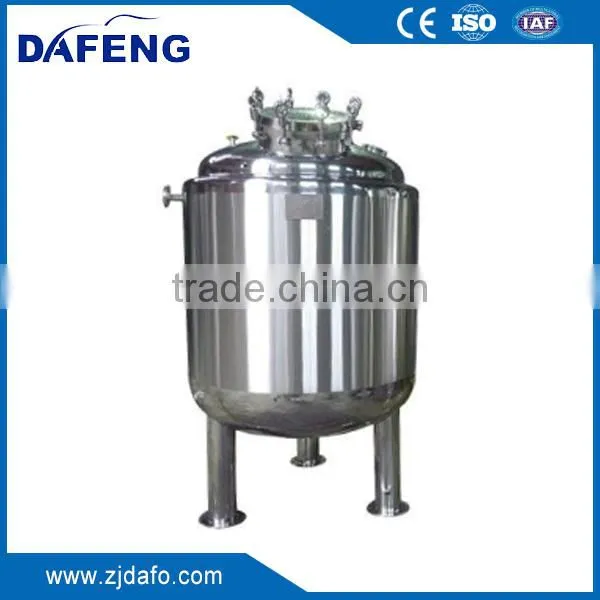

1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.

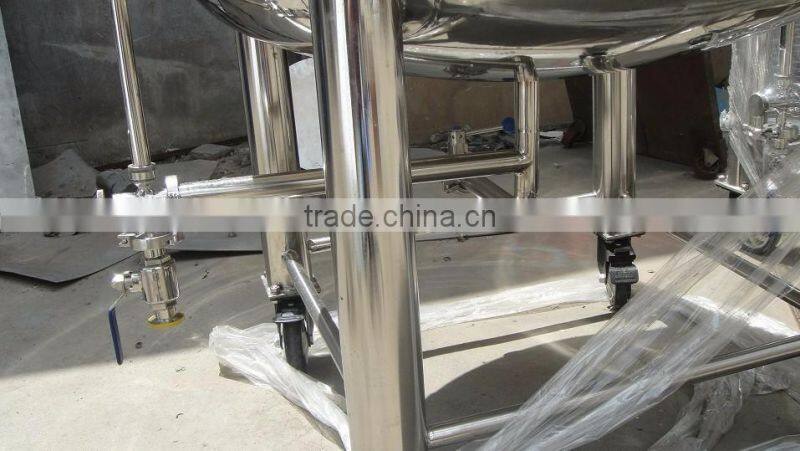

3. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements).
7. Ladder (According to customer requirements).
8. Liquid level meter and level controller (According to customer requirements ).
9. Eddy-proof board.
| (D*H) | (H) | ||
| Effective volume | Dimension of tank | Total height | Diameter of inlet& outlet |
| (L) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2250 | 38 |
| 600 | 920*1000 | 2300 | 38 |
| 700 | 990*1000 | 2300 | 38 |
| 800 | 950*1220 | 2500 | 38 |
| 900 | 1010*1220 | 2500 | 38 |
| 1000 | 1060*1500 | 2850 | 51 |
| 1500 | 1160*1500 | 2850 | 51 |
| 2000 | 1340*1500 | 2900 | 51 |
| 3000 | 1410*2000 | 3400 | 51 |
| 4000 | 1620*2000 | 3450 | 51 |
| 5000 | 1810*2000 | 3500 | 51 |
| 6000 | 1980*2000 | 3550 | 51 |
| 7000 | 1930*2440 | 4000 | 51 |
| 8000 | 2060*2440 | 4000 | 51 |
| 9000 | 2180*2440 | 4050 | 51 |
| 10000 | 2300*2440 | 4050 | 51 |
| 12000 | 2270*3000 | 4600 | 51 |
| 15000 | 2530*3000 | 4700 | 51 |
| 20000 | 2640*3660 | 5400 | 51 |
Zhejiang Dafeng Light Industrial Industrial Machinery Co.,Ltd can provide our customers with high quality stainless steel Chemical Reactors with agitation to process product. These tanks with high pressure resist,high temperature resist for dye,paper,pharmaceutical,and other chemical process industries,standards meet to national pressure vessel manufacture requirements.
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
