Help Center5000L Water Storage Vessel
Related Products
-
200L Movable Storage TankUS$ 3,000 - 8,000MOQ: 1 Set -
Vertical Stainless Steel 10000L -50000L Water Storage TankUS$ 500 - 9,900MOQ: 1 Set
-
Stainless Steel Open Milk PotUS$ 2,900 - 9,000MOQ: 1 Set
-
Sanitary Stainless Steel Beverage Storage Tank Vertical Steel Storage Tank PricesUS$ 550 - 9,900MOQ: 1 Set
-
Stainless Steel Mineral Water Storage TankUS$ 500 - 9,900MOQ: 1 Set
Purified water generated from purified water generation system shall be transferred to the Purified water storage tank This Purified water from the storage tank is then re-circulated in a closed loop to various user points with the following features.
-

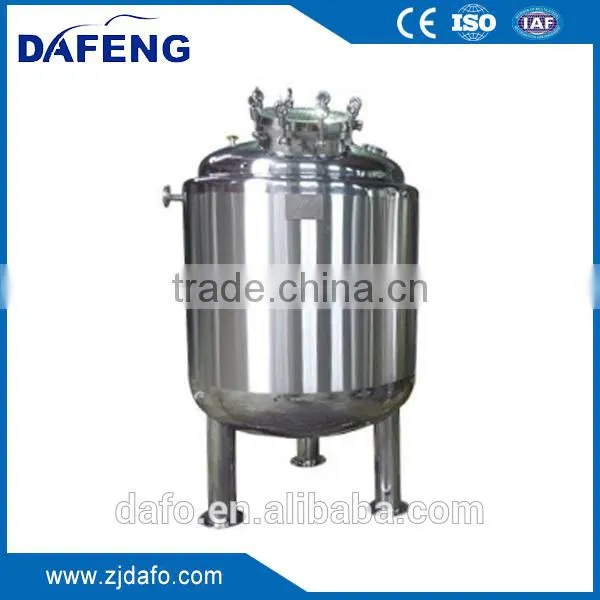

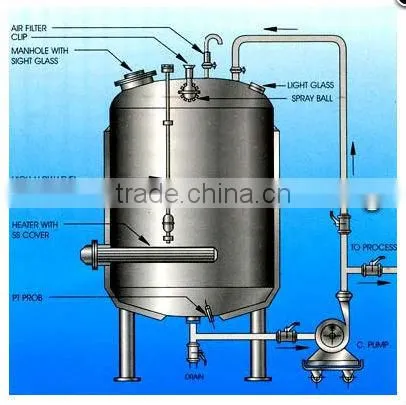

The storage tank assembly consisting of
- SS316L wetted parts, Jacketed, SS Cladded.
- Dished ends at bottom for complete drainability and at top to avoid stagnation.
- Spray ball located at the center nozzle (loop return) on the manhole for continuously wetting
all the contact parts on the top surface of the tank including the manhole internal surfaces.
- Sanitary nozzles for feed, re-circulation, vent, pressure gauge, level switch, spare nozzles
on the top (manhole) and outlet at the bottom.
- Surface finish of less than 0.4 Ra inside and mat finish on outside surface.
- Sterile vent filter on the tank top.
-
The distribution pump consisting of the following features
- SS316 L wetted parts.
- Mono-block/ vertical multistage, centrifugal type.
- Casing drain sanitary Valve.
-
Distribution loop consisting of the following features
- SS316L, Seamless tubes, Electro-polished.
- Internal surfaces finish less than 0.4 Ra.
- Outside mirror polish
- Installed at a slope of 1:100 for complete drainability.
- Properly supported with SS304 contact parts.
- Dead legs of not more than 3 D.
- No hold up volume in case of shut down.
- Normal velocity of 2.8 m/s and during peak load velocity of min 1.2 m/s shall be maintained.
- All possible joints shall be orbital welded; remaining joints shall be sanitary tri-clamp
type with silicon gaskets.
-
Apart from the above major items, the system have the following features :
- The complete storage and distribution system shall have provision of hot water sanitization
- Have the necessary pressure gauges viz. at pump outlet, loop return and compound
pressure gauge on tank top
- Conductivity controllers in loop supply.
- Differential pressure sensors & transmitters are provided in loop system.
- Temperature sensors in tank bottom & loop return.
- Level controller on tank for pump controlling and feed control.
- Sanitary UV Unit to control microbial load.
- Flow transmitters in loop return to monitor flow rate / velocity.
- Auto Dumping valve in loop supply for high conductivity.
- Auto Back Pressure Valve in loop return to regulate pressure and flow.
- The complete system shall be controlled by PLC based control panel with datalogging
facility.

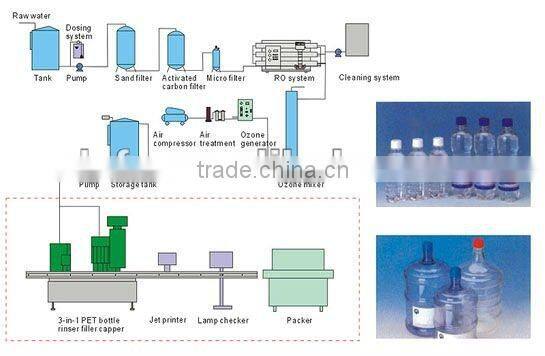

Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customerset up whole production line for mineral water, pure water,coca-cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
warmly welcome customer any question and inquiry.
Responsible Man(General Manager):Jie zhao
Tel.Phone:0086-577- 68067591
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
