SS.heat exchanger condenser
- 99 Set / Sets per Month
- ningbo/shanghai
- Credit Card
- New Aluminum 15L Capapity air oil cooler for concrete mixer truck
- 12L Capapity air oil cooler for concrete mixer truck
- Standard New Oil Cooler for concrete mixer truck
- Standard Hydraulic Oil Cooler for Concrete Mixer Truck
- Aluminum Plate and Bar Hydraulic Oil Cooler for Concrete Mixer Truck
- Hydraulic Oil Cooler for Concrete Mixer Truck
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | DF |
Model Number: | Tubular-heat-exchange condenser | Structure: | Tube Heat Exchanger | Dimension(L*W*H): | as per required |
Certification: | CE | Warranty: | 3 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

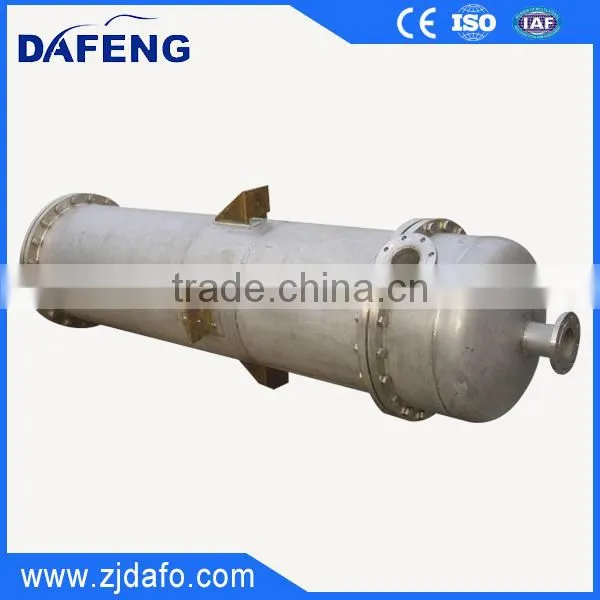

This product heat exchanger condenser and evaporator, is widely used in fluid heat
exchange of the drugs-manufacturing, chemistry and industry, food, spin-
ning and weaving profession. According to the different procedure, there
are two kinds of material: 316L and 304. the inside and outside of the heat
exchanger is polished Ra 0.45 and the whole inside is treated with deactivated
processing. It can also be used to kill the bacteria wilh pure vapor
according to the procedure.
Due to its good sealing, wide applicable condition and not easy pollution, it is especially suitable for the heal transfer of infusion,
the water needle the freezing and drying powder injection in the drugs manufacturing profession, and the purification water, the injection water in the process of biological
preparations, as well as for the rising and decreasing temperature of medicine fluid.
It also can make a special design according to the material and special
requirement from the customer' s procedure, and it can manufacture heat exchanger 1 - 200 m².

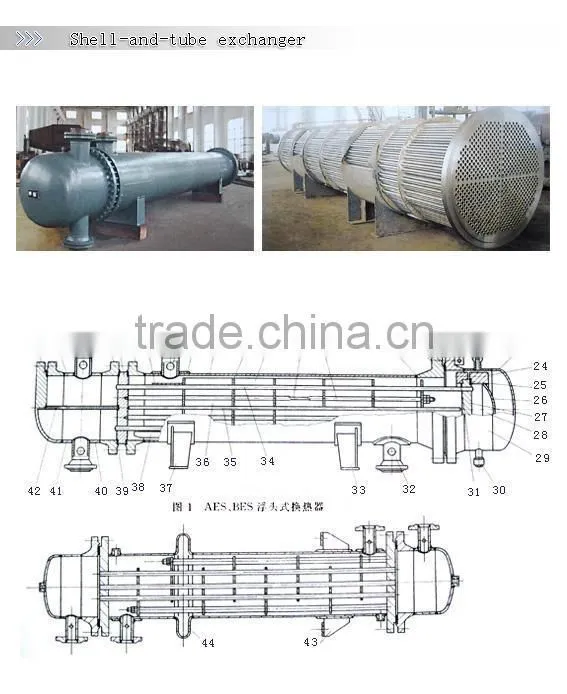

A shell and tube heat exchanger is a class of heat exchanger designs.[1][2] It is the most common type of heat exchanger in oil refineries and other large chemical processes, and is suited for higher-pressure applications. As its name implies, this type of heat exchanger consists of a shell (a large pressure vessel) with a bundle of tubes inside it. One fluid runs through the tubes, and another fluid flows over the tubes (through the shell) to transfer heat between the two fluids. The set of tubes is called a tube bundle, and may be composed of several types of tubes: plain, longitudinally finned, etc.
Specification(m2) | Effective Length (mm) | O.D (mm) | Weight (kg) |
0.5 | 800 | 159 | 60 |
1 | 800 | 159 | 90 |
1.5 | 1200 | 208 | 138 |
2 | 1200 | 220 | 155 |
3 | 1400 | 300 | 236 |
5 | 1200 | 300 | 260 |
10 | 1600 | 400 | 390 |
15 | 2400 | 400 | 560 |
20 | 2600 | 400 | 800 |
30 | 3200 | 450 | 1005 |
40 | 3500 | 500 | 1310 |
50 | 4000 | 500 | 1620 |
60 | 4000 | 500 | 1850 |
70 | 4000 | 500 | 2080 |
80 | 3500 | 600 | 2320 |
90 | 4000 | 600 | 2600 |
100 | 3000 | 700 | 2950 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
