Specifications
1.Jacketed and Agitated Fermentation tank2.volume,500L-8000L
3.stainless steel 316L or 304
4.double jacketed
5.agitated

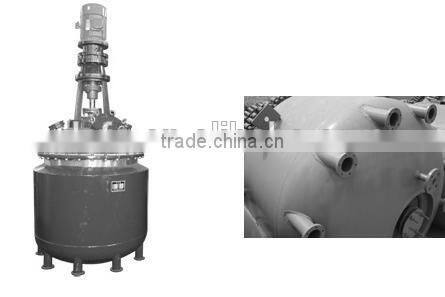

Jacketed agitated reactor Fermentation tank
Fermentation tanks can be used to mix,reactor and process liquid material in pharmacy, foodstuff, beverage, dairy, chemical as well as other callings, can put steam or cooled water to jacket to make material stay in best temperature, imported German fully-sealed non-leakage mixer can avoid materials deposition, and the drive part adopts mechanical sealing to guarantee zero pollution, so that it is a first-choice equipment for injection, consistency prescription of large transfusion medicine liquid.
With advantages of
high efficiency, convenient operation etc.,
it is equipped with automatic rotary nozzle inside the tank to ensure thorough cleaning,
it adopts SUS304 or 316L stainless steel and carries out mirror polishing processing, accords with GMP standard.
Main features:
1. Capacity: 1 - 5, 000 cubic meters
2. Material: Stainless steel 304/316
3. Tank sort: Fermentation tank
4. Medium: Wine.
Model parameters | FT-100 | FT-200 | FT-600 | FT-1000 | FT-2000 | FT-5000 | FT-10000 |
Volume(L) | 100 | 200 | 600 | 1000 | 2000 | 5000 | 10000 |
Body Operating Pressure (Mpa) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
Jacket Operating Pressure(Mpa) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
Operating Temperature degree | 143 | 143 | 143 | 143 | 143 | 143 | 143 |
Agitator's RPM | 0-720 | 0-720 | 0-720 | 0-720 | 0-720 | 0-720 | 0-720 |
Heating Area | 1.1 | 1.6 | 3.4 | 5.5 | 8.0 | 15.0 | 23.5 |
Agitator's Power (KW) | 0.55 | 0.75 | 1.0 | 1.5 | 3 | 5.5 | 13 |
Other Types are according to customer's requirement
1.Quick open of manhole
2.Vaiours kins of CIP cleaners
3.Vortex-Proof board discharge port
4.Inlet aperture
5.Thermometer
6.Material indicator
7.Aseptic sampling port,Aseptic respiratory air cavity.
ADVANTAGES
1.Blening tank(sterilizing tank /aseptic tank),made of SUS304 Or SS316L
2.temperature,heating or coolling by dimple jacket.
3.with perlite or PU to keep insulate.
4.All angles special treated,to guarantee no dead angle
5.used for liquid foods like milk, juice,chemical and biological areas.
CERTIFICATIONS
1.EXPORT STANDARD WOODEN CASE PACKING,FOR LCL;
2.EXPORT FRAME PCKING,FOR FCL
with a concentration of R&D, design,manufacture, sale, and service.Our company main manage:stainless steel mixing tanks,large heat exchanger equipment,reaction equipment,pressure vessels,Auxiliary Boiler,water treatment equipment,extractors,emulsifier and mixer, pipe work project etc.
Products of mixing tanks has now widely exported West Europe,East Europe,North American & AMERICANS,
ASIA,EAST ASIA,MIDDLE EAST,AUSTRA ETC.
