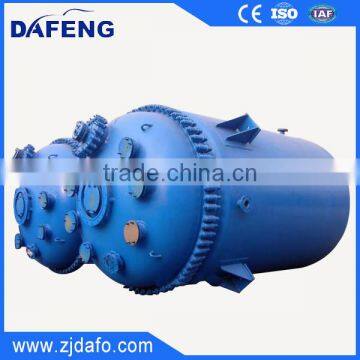

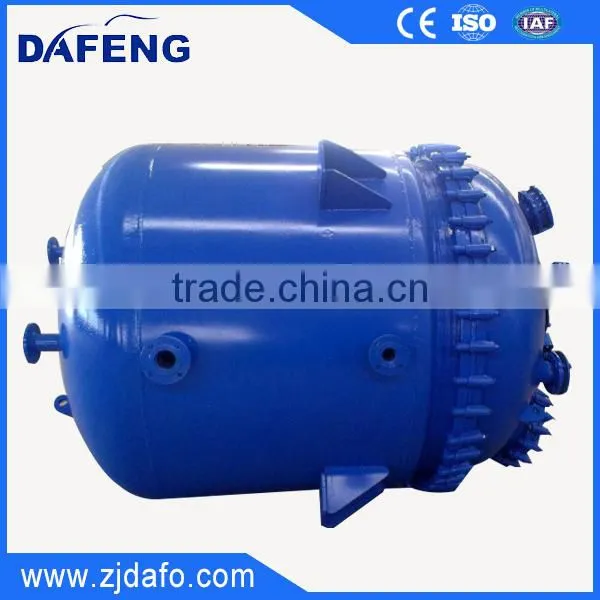

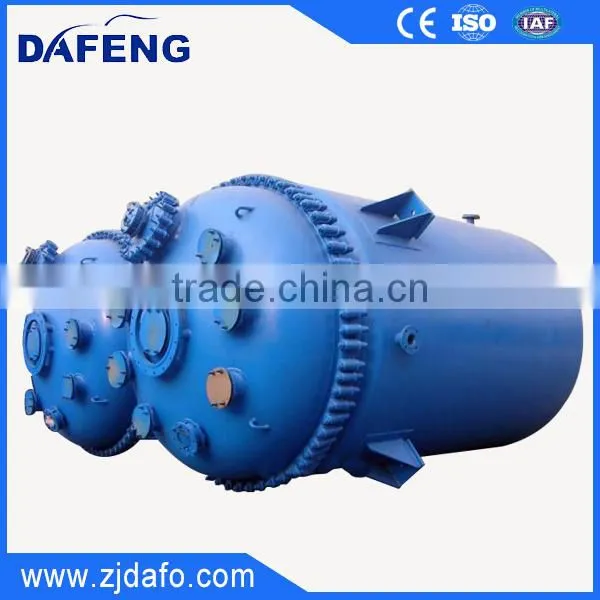

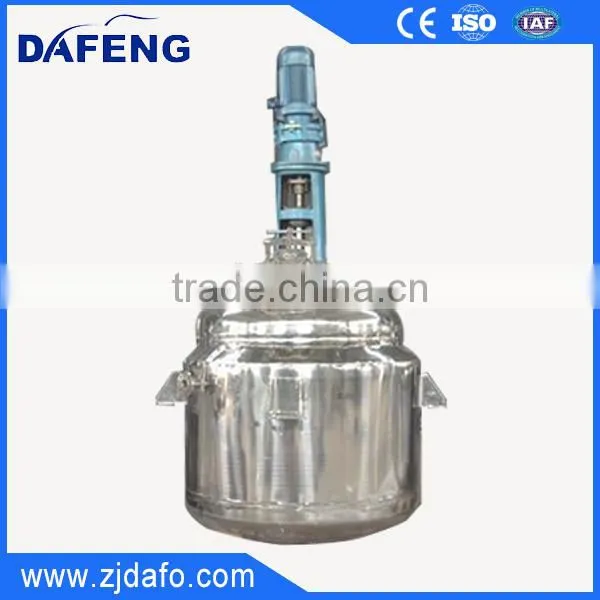

Help CenterHigh Pressure Reactor Autoclave
Related Products
-
Industrial Chemical Tank ReactorsUS$ 2,000 - 10,000MOQ: 1 Set -
10000L Stainless Steel Mixing Agitator EquipmentUS$ 2,000 - 10,000MOQ: 1 Set
-
China Professional 10000L Chemical Tank ReactorUS$ 2,000 - 10,000MOQ: 1 Set
-
8000L Carbon Steel Stirred Tower ReactorUS$ 2,000 - 10,000MOQ: 1 Set
-
Industrial Double Jacketed Reaction KettlesUS$ 2,000 - 24,000MOQ: 1 Set
Specifications and Technical Parameters | |
Type |
100L~10000L |
Volume(L) |
100L~10000L |
Working pressure(MPa) |
1~14 |
Working temperature(°C) |
0~200 |
Stirring speed(r/min) |
20-1400 |
Motor (KW) |
0.55~55 |
Heating (KW) |
0.8~100 |
Heating type |
Electric heating, water recycling, thermal oil, steam |
Charging type |
Charging from above, charging from below. |
Shaft |
Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. |
Stirring type |
Paddle type or anchor type |
Seal type |
Magnetic seal, mechanical seal, packing seal. |
Motor |
General DC motor, DC servomotor or explosion-proof motor etc. |
Main material |
Kettle material is mainly used 0Cr18Ni9(S30408),00Cr17Ni14Mo2(S31603),0Cr18Ni10Ti(S32168) . And reactor can be produced by titanium (TA2), lined PTFE or lined Ni (Ni6) |
Opening port of conventional kettle lid |
Gas port, liquid port and tube inserting the bottom, charging port, measuring and controlling temperature port, security blasting port, inlet and outlet of cooling coil |
|
Controller Device
|
temperature regulator, temperature control accuracy of ± 1 °C; speed display and stepless speed regulation function |
Other Accessories |
If the user has other special requirements on kettle cover, kettle body opening, the internal structure, high and low pressure, stirring paddle, supporting device etc (such as condensate return unit, constant feeding tank, receiver, condenser, etc.). |
Installation on site
Installation on site of closed low pressure reactor
Installation on site of batch reactors
Installation on site of high pressure reactors
Welcome inquiry and hearty cooperation.
As a Chinese professional manufacture since 1998 years and ISO9001-2000 approval for many years of 304, 316L stainless steel chemical reactors and customer designed fabricated Chemical reactors, Storage Tanks, Blenders, Condensers and all its accessories, pipes, fittings and sections. All the Reactors are available with all Standards Testing Facility. Which jacketed, agitated, limpet coil, complete with gear box explosion proof motor and stainless steel heat exchanger,complicated process system, can operate under pressure or vacuum.
General Introduction of Pressure Vessels
we can manufacture various reactor and storage-tank of 50L - 20,000L,manufacture various specifications of stainless steel reactor and storage tank.
Our Patents and Basic Qualifications
