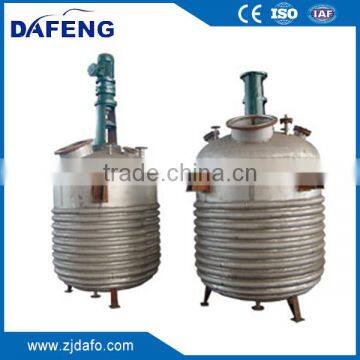

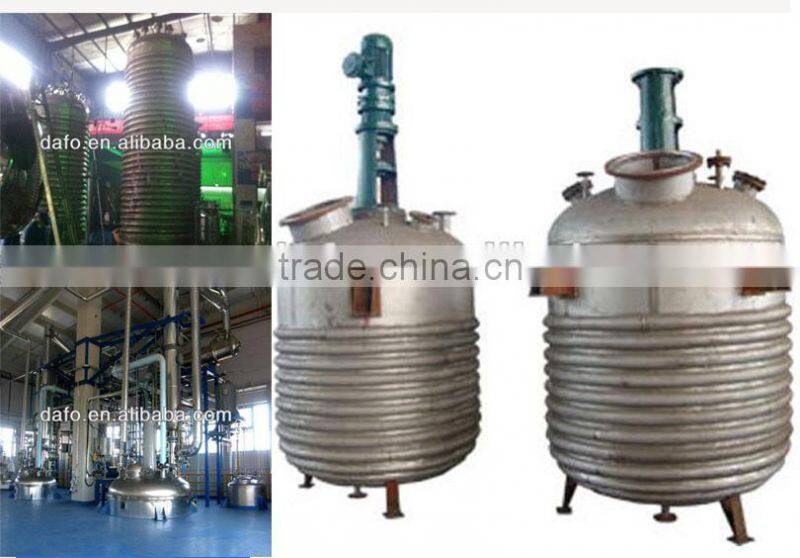

5000L stainless steel chemical reactor
1). Specially equipment for chemicals mixing and reacting.
2). Widely used in making resins, adhesives, paints, cosmetics, pharmaceuticals and chemical products.
3). Material: carbon steel, stainless steel 304, high temperature resistant SS321, acid proof and alkali proof
SS316L, enamel etc. for choice.
4). Jacketed type reaction kettle, coil pipe reaction still, electric heating reaction vessel, multi-function reactor,
high-speed dispersing reactor etc. for choice.
5). Mechanical seal or packing seal. 50~50000L Quality Assurance Stainless Steel Chemical Reactor
6).Inverter for frequency control. 50~50000L Quality Assurance Stainless Steel Chemical Reactor
7).Heated by oil, water, steam or electricity. 50~50000L Quality Assurance Stainless Steel Chemical Reactor
8). Three-layers paddle style, made of stainless steel. 50~50000L Chemical Reactor Chemical Reactor Price
9).Consists of body, gears, mixing devices, heating devices, cooling devices, seal composition.
10).Equipped with distillation column, condenser, water separator, collecting cans, filters etc.
11).Supply complete production line, as well as producing technology. Other related machines as kneader, disperser, blending machine etc.are available.
12). OEM & ODM are welcome. We could do equipment according to your detail requirements.

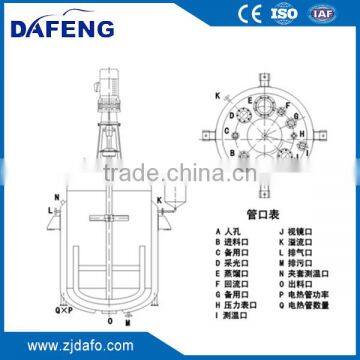

Technical Parameters
| Vessel Dimensions | ||||||||
| Nominal Volume(L) | Dimensions (mm) | |||||||
| DN | D7 | D8 | H | H1 | H2 | h | L | |
| 1500 | 1300 | 400 | N/A | 1895 | 975 | N/A | 240 | 3505 |
| 2000 | 1300 | 400 | N/A | 2240 | 975 | N/A | 240 | 2850 |
| 3000 | 1600 | 450 | 1300 | 2275 | 1160 | N/A | 240 | 3800 |
| 5000 | 1600 | 450 | 1300 | 3275 | 1160 | N/A | 240 | 4800 |
| 5000 | 1750 | 450 | 1400 | 2940 | 1200 | 420 | 270 | 4470 |
| 6300 | 1750 | 450 | 1400 | 3375 | 1200 | 900 | 270 | 5060 |
| 8000 | 2000 | 500 | 1600 | 3280 | 1360 | 690 | 330 | 5270 |
| 10000 | 2200 | 550 | 1700 | 3582 | 1460 | 900 | 360 | 7095 |
| 10000 | 2400 | 550 | 1800 | 3160 | 1500 | 640 | 360 | 5970 |
| 12500 | 2400 | 550 | 1800 | 3655 | 1500 | 900 | 360 | 6475 |
| 15000 | 2400 | 550 | 2000 | 4220 | 1400 | 1500 | 360 | 7970 |
| 20000 | 2600 | 550 | 2000 | 4730 | 1530 | 1300 | 300 | 9180 |
| 300000 | 2800 | 550 | 2200 | 5510 | 1600 | 1300 | 360 | 9960 |
Our factory quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

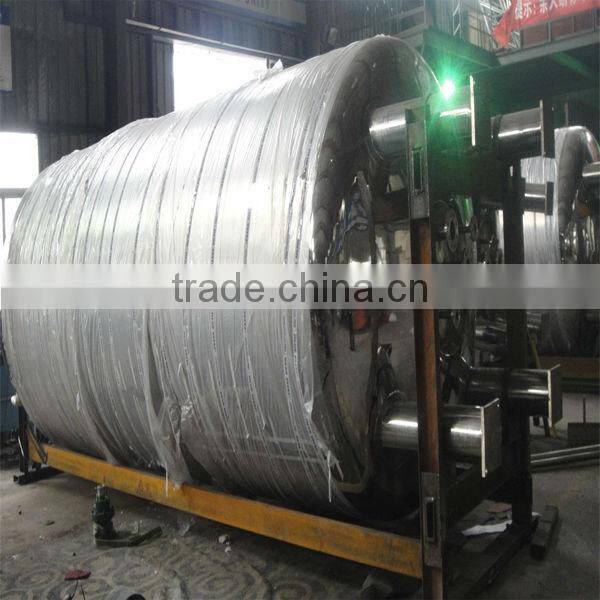

Packaging & Delivery Packaging Details:
Outer Packing information : 1. Plywood Case 2. Strong and solid 3. Pallet underneath for easier container loading and unloading Inner Packing information : 1. PE film wrapping overall 2. Fittings are packed in separate PE bag. 3. Spare parts are provided in a bag. 4. Corners are well wrapped and protected with synthetic fiber paper to avoid possible scratch.
We can offer several payment methods which can ensure your capital’s security, such as the following:
L/C T/T D/A D/P
Western Union
MoneyGram
More options of delivery:
1. EXW (EX works)
2. FCA (Free Carrier)
3. FAS (Free Alongside Ship)
4. FOB ( Free on Board)
5. CFR (Cost and Freight)
6. CIF (Cost, Insurance and Freight)
7. CPT (Carriage Paid to)
8. CIP (Carriage, Insurance Paid to)
9. DAF (Delivered at Frontier)
10. DES (Delivered Ex Ship)
11. DEQ (Delivered Ex Quay)
12. DDU (Delivered Duty Unpaid)
13. DDP (Delivered Duty Paid)
