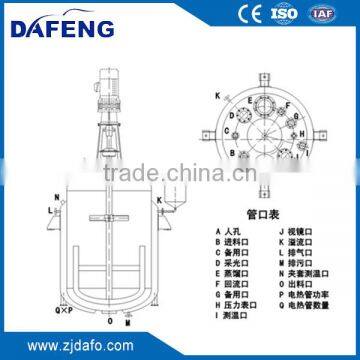

Stainless Steel Reaction Vessel

Our Stainless steel mixer/ reaction vessel / reactor can be used for different processes like hydrolysis, neutralization, crystallization, distillation and evaporation in many fields such as pharmacy, chemistry, foodstuff, light industry and etc.

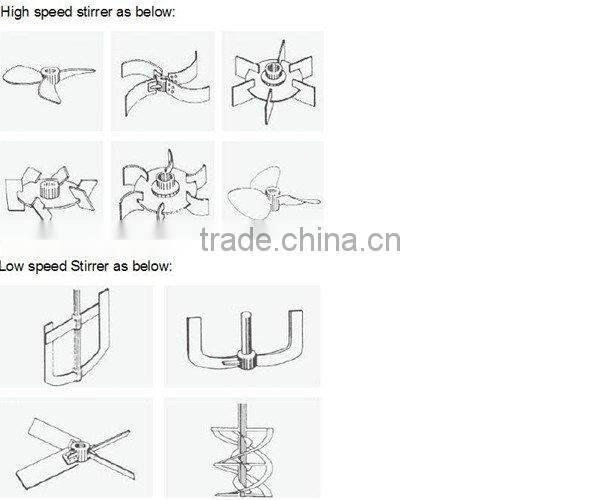

The reactor is generally made of SUS304, SUS316L stainless steel. Several mixing types are available such as anchor type, frame type and blade type.

 It adopts cycloidal pinwheel type decelerator and variable-speed type decelerator as its agitation system. And the type of mechanical sealing is adopted for its sealing device; and the structure of jacket or half-pipe or coil pipe is available for its heating and cooling system. Several heating modes are available to be chosen from such as steam heating, electric heating and heating by heat conductive oil in order to meet different technological requirements under different working environments where acid and alkaline resistance, high temperature resistance, anti-abrasion or anti-corrosion is required respectively. We can design and manufacture products strictly according to users various process requirements.

parameter/ type                       FYG100        FYG200        FYG500        FYG1000         FYG1500

L      Capacity                             100                200             500              1000              1500

mm  Norminal diameter              500                600             800              1000              1200

Mpa Norminal pressure inside tank                      0.25~0.5

Mpa Norminal pressure inside jacket                      0.30

kw   Motor powder                     1.1                 1.5              2.2              4.0                  4.0

                                                   category 1 pressure vessel

parameter/ type                        FYG2000       FYG2500     FYG3000     FYG4000        FYG5000

L       Capacity                                2000             2500            3000         4000              5000

mm   Norminal diameter                 1200             1400            1400          1500             1600

Mpa  Norminal pressure inside tank                     0.25~0.5

Mpa  Norminal pressure inside jacket                       0.30

Kw    Motor powder                         4.0               5.5                5.5             5.5                7.5

                                                     category 1 pressure vessel
