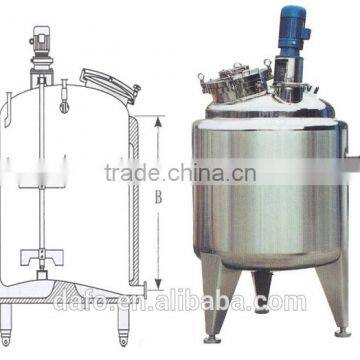

Mixing tank also known as deployment liquid tank, has the characteristics of energy saving, corrosion resistance, strong production capacity, simple structure and is easy to clean. It is mainly used for dairy, sugar and other elements mixing with all kinds of drugs to stir homogeneously. And now it has been the indispensable equipment in the dairy products, beverage, and pharmaceutical factories.
Features
The bigger the impeller diameter is, the more powerful the agitating capacity is.
The higher the impeller RPM is, the more powerful the agitating capacity is.
The umbrella shape of impeller greatly increases the agitating capacity.
That the agitating capacity is boosted improves the circulation ability of minerals and reagents.
The baffle can compress negative pressure to a limited space and improve suction capability. As a result, the circulation capacity is enhanced.
Umbrella-shaped impellers produce huge downward pressures, increasing the suction and circulation capacity.
Only when the surface of mineral is completely reacted with reagent, the beneficiation standard is improved.
Usages
It is mainly used for dairy, sugar, beverage, food and other elements mixing with all kinds of drugs to stir homogeneously. And now it has been the indispensable equipment in the dairy products, beverage, and pharmaceutical factories.
Characteristics
- The insulation material is polyurethane foam or pearl cotton which is high temperature-resistant and anti-aging.
- The interface adopts international standard ISO fast loading camp, inner pot uses imported stainless steel SUS304 or SUS306L, and is mirror-polished to Ra≤0.4m, outer surface adopts matte, mirror, blasting, or cold-rolled matte.
- The seal head adopt imported sanitary mechanical agitation seal or magnetic seal agitating device, stirring speed are optional.
- The pipe mouth is equipped with liquid level gauge (static pressure type, capacitive, non-contact type, ultrasonic type, glass tube type), air-breathing mouth, thermometer( digital display type or dial type),CIP cleaning mouth, mirror, explosion-proof sight (integration of mirror and light), SIP sterilization mouth, liquid inlet and outlet and sanitary manhole etc.
Technical parameters
Model
| Effective volume (m3) | Impeller revolution (r.p.m) |
D. of impeller (mm) | Motor power (kw) | W. (kg) |
JMT -1000×1000 | 0.58 | 530 | 240 | 2.2 | 548 |
JMT -1250×1250 | 1.4 | 350 | 3 | 1108 | |
JMT | 2.2 | 320 | 420 | 5.5 | 2207 |
JMT | 5.46 | 240 | 560 | 7.5 | 3110 |
JMT | 11.2 | 232 | 3644 | ||
JMT | 19.1 | 220 | 700 | 18.5 | 4613 |
JMT | 30 | 195 | 850 | 22 | 6965 |
JMT | 47 | 179 | 900 | 8355 |
Notes
- The nominal capacity and size in the chart is standard configuration. Any specific requirements, please point out.
- The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.
- The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.
Technical requirements

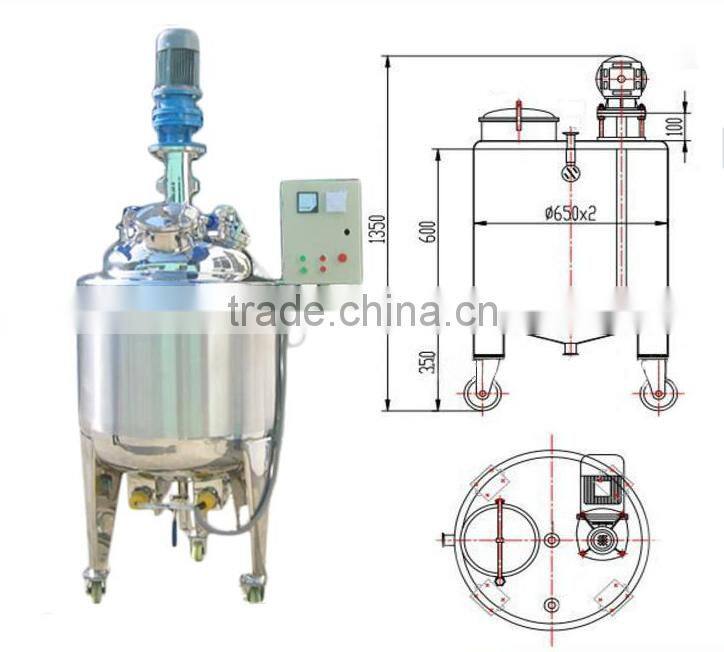

1. File support: the structural size drawing of the device (PDF) and instructions are available.
2. Required by operated function, the following criteria are adopted to design, manufacture and test
A. Standards for quality control of pharmaceutical production (Revised 1998)-terms of Chapter IV 31-37;
B. The Steel Pressure Vessel (GB150-1998)
C. The Steel Welding Normal Pressure Vessel (JB/T 4735-1997);
D. Food Machinery Safety and Heath (GB 16798-1997).
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
