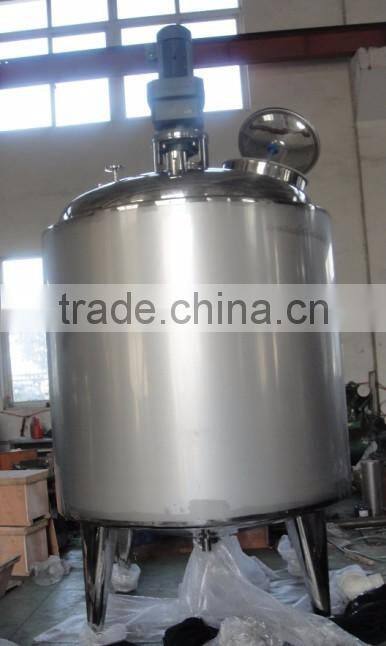

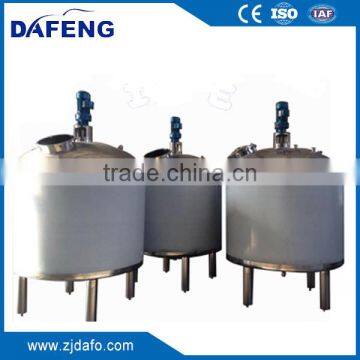

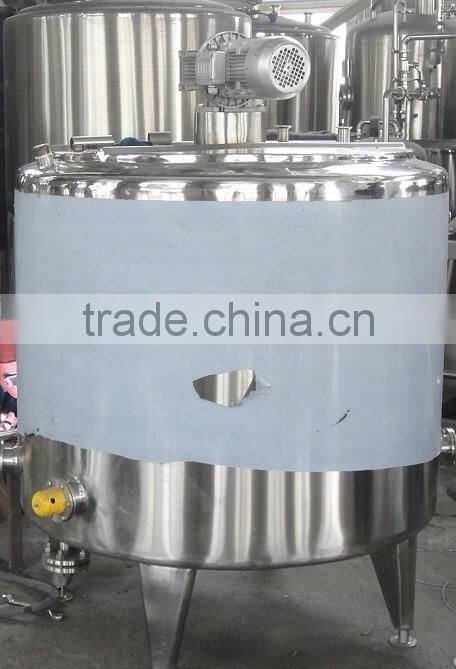

stainless steel SS316L electric heated stirring tank
Cosmetic Machine series Electric heated Stirring/Mixing Tank is high-efficiency liquid detergent vessel specially designed for mass production.

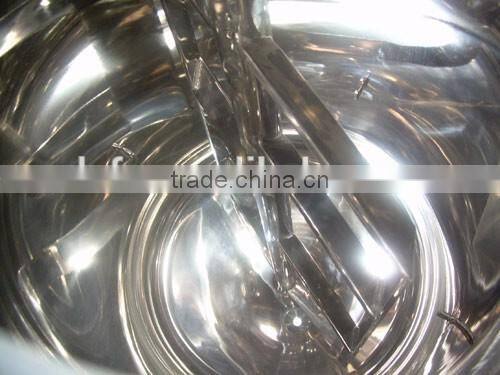

This series of machines have the mixing blades of many structural shapes for your option,and the vessel body has many shapes such as normal temperature,heating,normal pressure and vacuum;
The machine has the advantages of high productivity,low power consumption,strong adaptability and broad usages.
Item name | Mixing tank ,mixer |
Material | Stainless steel 304/stainless steel 316L |
Application | Daily chemical care products, , pharmacy, food industry |
Product features
| 1) With CE,ISO,GMP standards 2) Low / high speed agitator 3) Frequency controller for adjusting stir speed 4) double jacketed(for conduction oil) 5) The range of volume is 500L-5000L 6) The pot could heat& cool the material, electric heating or steam heating 7) Agitator type to your requirements: blade, frame, scraper stirrer homogenizer |
Main mixer:
Variours mixer type can be made:

Volume | Working pressure (Mpa) | Work.TEMP.(°C) | Agitation speed(rpm) | H(mm) | H1(mm) | D(mm) | D1(mm) | h(mm) |
100 | 0.25 | 100 | 0-720 | 1750 | 450 | φ750 | φ550 | 300 |
200 | 0.25 | 100 | 0-720 | 1950 | 600 | φ850 | φ650 | 300 |
600 | 0.25 | 100 | 0-720 | 2500 | 1000 | φ1100 | φ900 | 350 |
1000 | 0.25 | 100 | 0-720 | 2850 | 1200 | φ1300 | φ1100 | 350 |
2000 | 0.25 | 100 | 0-720 | 3350 | 1500 | φ1500 | φ1300 | 350 |
3000 | 0.25 | 100 | 0-720 | 3700 | 1700 | φ1700 | φ1500 | 350 |
5000 | 0.25 | 100 | 0-720 | 4250 | 2000 | φ2000 | φ1800 | 400 |
10000 | 0.25 | 100 | 0-720 | 5000 | 2500 | φ2500 | φ2300 | 400 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
