Product Description

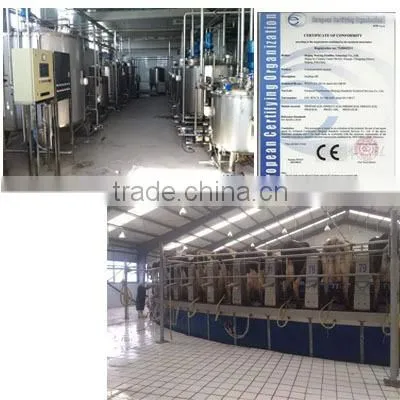

Dairy milk plant Turnkey project Photo show of milk plant





milk blending system                                                                product storage system
Dairy milk turkey project

Dairy milk turkey project

milk filling system                                                 milk pasteurizer and homogenizer

   Dairy milk turkey project

Description of dairy processing milk plant



This dairy processing milk plant produce several types of market milk products, i.e. whole milk, skimmed milk andstandardized milk of various fat contents.



This dairy processing milk plant raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST pasteurizer or UHT processing.



End product package of this dairy processing milk plant can be plastic pouches, plastic cups, plastic bottles, glass bottles, pre-pak pouches etc. for this Milk processing line according to different end product and package type,the production technology is differently designed, but commonly include the following steps:



Equipment list of 25T/D dairy processing milk plant
(pasteurized milkyogurtcheesecreambutter)
NO. NAME MAIN TECHNOLOGY PARAMETER
1 MILK RECEIVESTORAGEAND CREAM SEPARETOR UNIT
2 electron pound scale maximum weighing 500KG
3 milk weighing tank made of SUS stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball
4 milk acceptor SUS304 stainless steel,single layer,CIP cleaning ball
5 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
6 twin piping filter SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
7 dish separator auto residue discharge
8 chiling tank SUS304 stainless steel,alveolate jacket,attached with compressor
9 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
10 PREPARING UNIT
11 blending tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
12 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
13 mini set of plate-type heat exchanger SUS304 stainless steel,two stages,
14 high speed emulsification tank SUS304 stainless steel,heat insulated,bottom high speed emulsifier,digital readout thermometer,supporters with adjustable feet
15 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
16 twin piping filter SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
17 sterilizing,homogenizing unit
18 UHT sterilizer tub-type,sterilzing temperature 137 C,holding time 4S,full automatic control
19 high pressure homogenizer 40MPa,(starting box included)
20 temperature holding SUS304,holding 300S
21 distributing plate SUS304,3 holes
22 cheesebutter processing unit
23 bufferying tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
24 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
25 cream seperator
26 bufferying container SUS304,with cover
27 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
28 butter-churner SUS304,stepless timing
29 cheese vat SUS304,with heating jacket and insising device
30 pressor SUS304,6 heads
31 mould SUS304,10L,with cover
32 yogurt fermentation unit
33 fermentation tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
34 rotary pump SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
35 plate cooler SUS304,single stage,milk discharge at 4C
36 rotary pump SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
37 filling unit
38 higher position tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
39 pasteurized milk filling machine
40 yogurt filling machine
41 CIP system
42 semi-auto CIP system outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks
43 CIP return pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
44 installation part whole milk processing line installation and commissioning







Dairy milk turkey projectDairy milk turkey projectDairy milk turkey project



Company Information

Our company’s advantages over other companies:



      Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.



Our Services

Our company’s quality certification:



We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.



Packaging & Shipping

Shipment



Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.

Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
