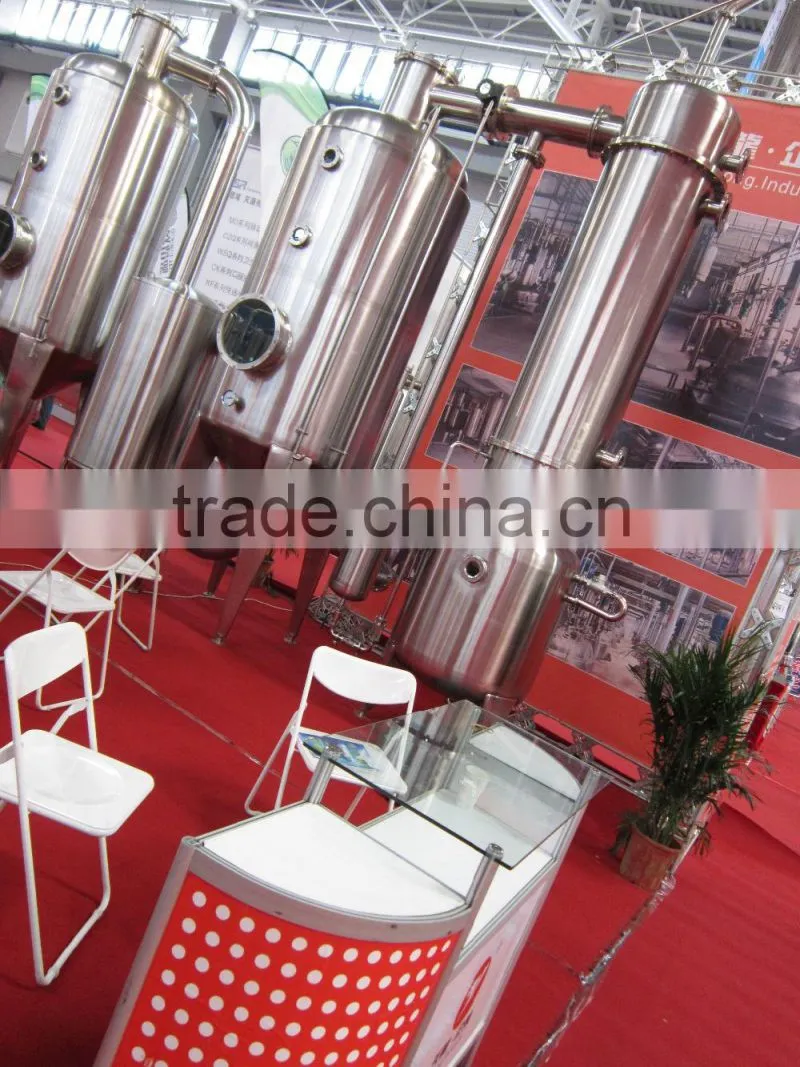

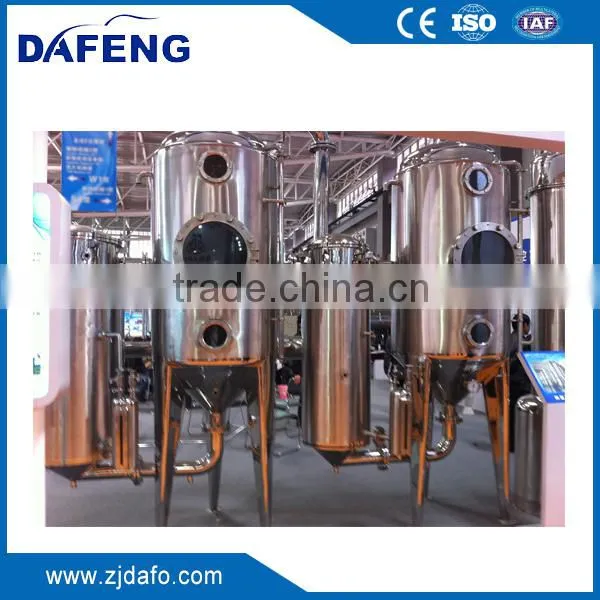

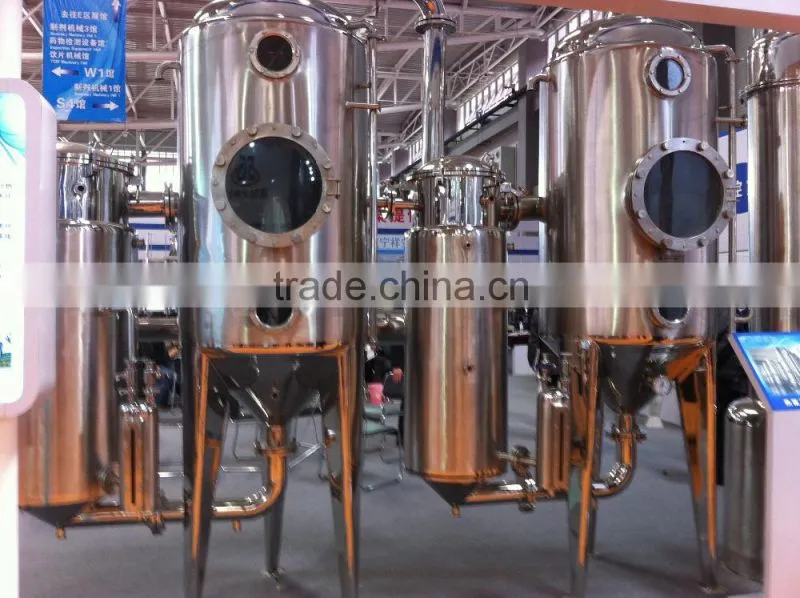

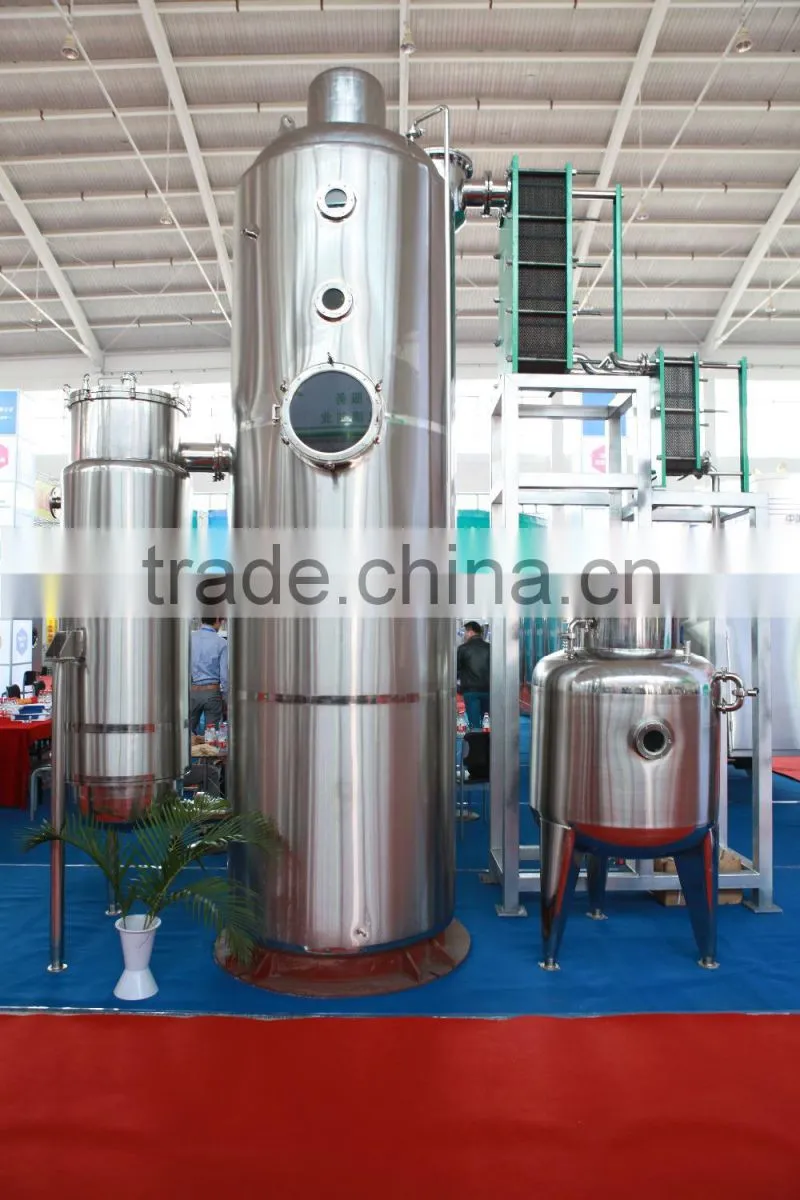

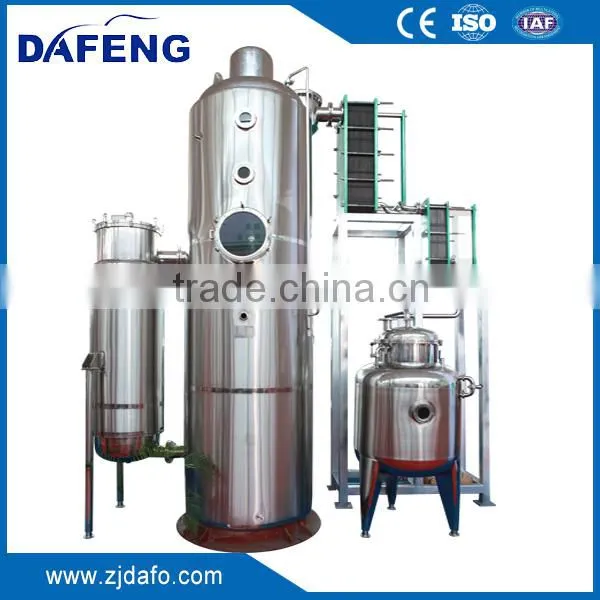

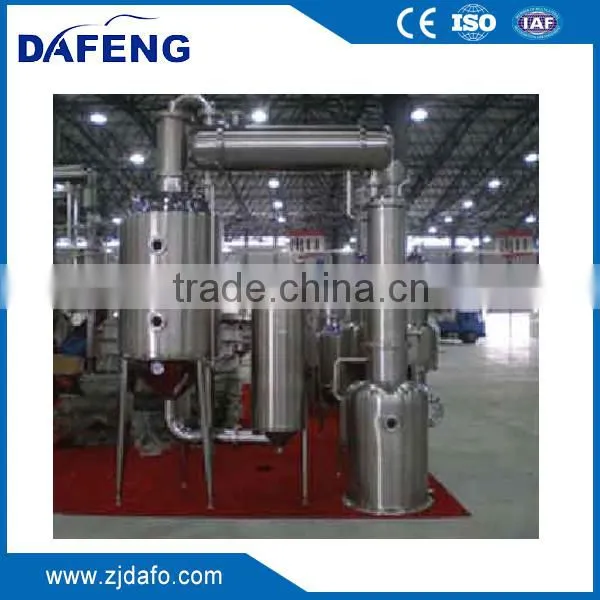

SNJ series Two-Effect
External Cycling Vacuum Concentrator
The concentrator is suitable for Traditional Chinese Medicine , Western Medicine , Glucose , Starch , Peroral Liquid ,and so on.
Usage
The concentrator can be applied to the concentration of solvent in the fields of Traditional Chinese Medicine, Western Medicine, glucose, starch, oral liquid, foodstuff and etc, especially the vacuum concentration of some heat-sensitive materials under the low temperature. Users can select different types of concentrator according to characteristics of various raw materials.
Characteristics and purposes:
1. Excellent energy-saving effect: Calculation is done according to the WZII1000 type. Users can save about 3500 tons of vapor, 90000 tons of water and 80000 kwh of power per annum, compared with the WZ1000 typeSingle-effect external cycling type evaporator.
2. The concentrator features a combination of external heating recycling and vacuum negative pressure evaporation, with rapid evaporation speed and great concentration ratio. Foamless concentration of feed liquid can be realized inside the sealed tank, by which the liquid medicine is concentrated with no contamination and strong taste of drug. Besides, it is easy to clean the vessel (All you need to do is to open the top head of the heater).
3. A double-effect simultaneous evaporation system is adopted for this concentrator. And secondary steam can be utilized fully. All these benefits result in great energy conservation, which can be best represented by a 50 percent deduction of the energy consumption compared with those single-effect concentrators.
4. All the parts in contact with media are made of high-quality stainless steel, which meets the GMP standard. The heater and the evaporator of this device are all equipped with insulating layers using the stainless steel plate, which makes the whole equipment to be laid out reasonably and beautifully from the outside appearance. And an automatic condensed water outlet system can also be equipped as requested by our customers if necessary.
Technical parameter:
Parameters
| WZII500 | WZII1000 | WZII1500 | WZII2000 | ||
Kg/h | Evaporating capacity | 500 | 1000 | 1500 | 2000 | |
MPa | Vapor pressure | <0.25 | ||||
Kg/h | Steam consumption | ≤250 | ≤500 | ≤750 | ≤1000 | |
Evaporating temperature | Single-effect | 80-90 | ||||
double-effect | 55-70 | |||||
MPa | Vacuum degree | Single-effect | -0.02~-0.04 | |||
double-effect | -0.05~0.08 | |||||
T/h | Circulating water consumption | 6 | 12 | 15 | 18 | |
Concentration ratio | 1.2-1.3 | |||||
L×W×H(m) | Overall size | 4×1.5×3.3 | 5×1.6×3.5 | 6×1.6×3.7 | 6.5×1.7×4.3 | |

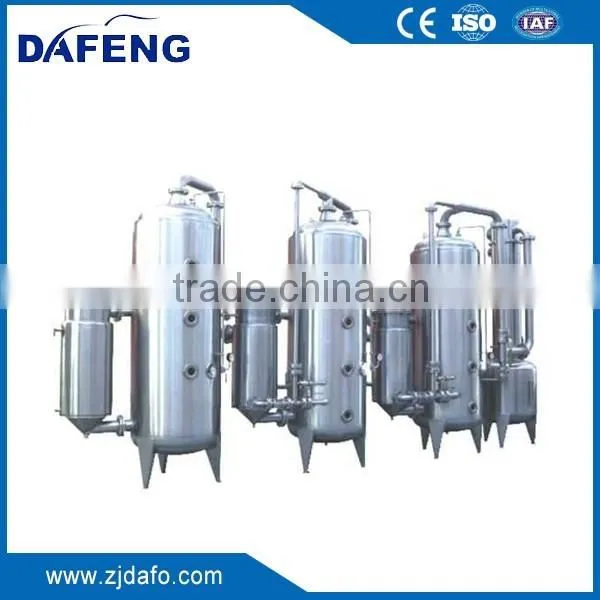

Double effect extracting and concentrate equipment
1. Q: How do I pay for my purchase order?
A: T/T, L/C at sight, Escrow, Paypal.
2. Q: What's the MOQ?
A: Our MOQ is 1 unit.
3. Q:What's the delivery time?
A: It will take about 25-35days to finish an order, but the exact time is also according to actual schedule.
4. Q: Can I have my own customized product?
A: Yes, your customized requirements for color, logo, design, mark and so on are very welcome.
5. Q: Do you have quality control?
A: Yes, we attach great performance to quality control.
6. Q: How about the warranty control?
A: One year warranty for the machineries since sold.If quality problem occurs, please feel free to contact.
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
