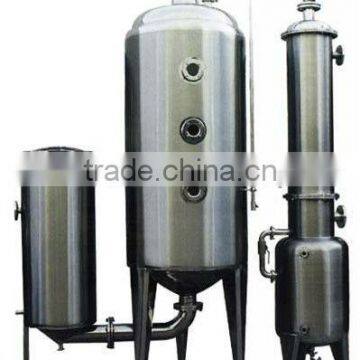

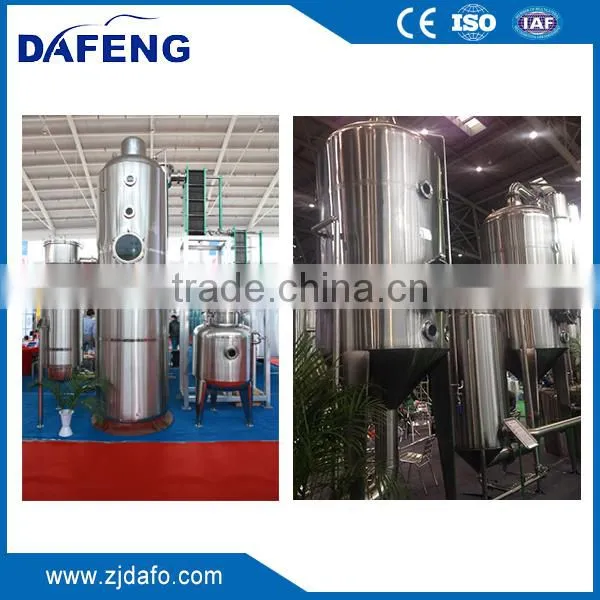

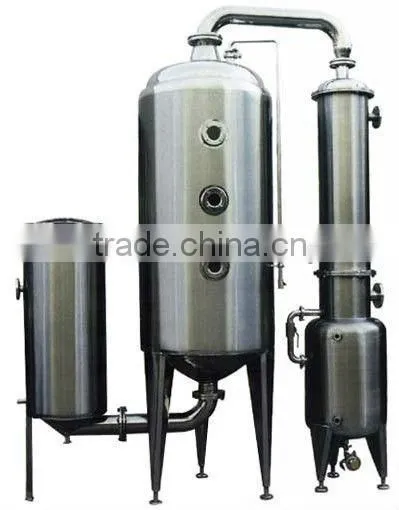

SNJ series extractor
Use:
Heat Reflux Extracting Concentrator is mainly used for extraction, concentration, ointment receiving in such fields as Chinese herbal, animal, and plant, as well as for alcohol recovery and volatile oil extraction.
Component
1) The equipment is compact conformed and integrated with extraction, volatile oil recovery, concentration, ointment receiving, and solvent recovery.
2) Synchronous Extraction and concentration shorten the technical process and production period, increasing the operation rate of the equipment.
Advantage
1) Add the solvent once for all, with the consumption lowered by more than 40%. With hot reflux, forced circulation and sox let extraction integrated, the solute keeps high gradient in the solvent, increasing the receiving rate by 10 to15%.
2) Connecting and reusing the condenser make the equipment compact-conformed and bring each part into full play. Without increasing investment of the device, Both the reflux and solvent recovery can be reached to good effect.
3) New technology and new materials are utilized for excellent performance of unit. The areas of the unit contacting with medical liquids and solvents in instruments, equipments and pipes, are made of superior stainless steel.
Technology parameter
Extracting tank vacuum(L) | 500 | 1000 | 2000 | 3000 | 6000 |
evaporation capacity(L) | 250 | 500 | 800 | 1000 | 2000 |
Water extracted temperature (°C) |
|
| 90~100 |
|
|
Alcohol extracted temperature (°C) |
|
| 78~83 |
|
|
Extracted time |
|
| 56h/ |
|
|
vacuum degree (MPa) |
|
| -0.05-0.08 |
|
|
Design pressure(MPa) |
|
| 0.09~0.3 |
|
|
Double effect extracting and concentrate equipment
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
