Vacuum Homogenizer

100L turbine emulsifying machine

Instruction of machine

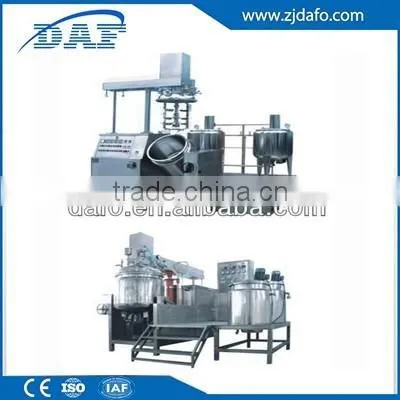

Model DFEM-0A 100L Vacuum Emulsifying Mixer is specially designed by introducing foreign updated technology and on the basis of ointment-making technics for processing cosmetics and ointment. It is composed of pretreatment boiler, vacuum emulsifying mixer boiler, vacuum pump, hydraulic system, tilting sysetm,and electric control system, etc.

Application

This unit can be used for production of ointments and creams in cosmetic, pharmaceutical factories and especially for the preparation and emulsification of ground substance with large viscosity and high content of solid.

Characteristic

This unit has such features as simple operation, stable performance, good homogenization, high prod
efficiency, convenient cleaning, reasonable structure, small floor space, and high automatization etc.

Technical Parametes of whole machine
The whole volume of container: 130 L
Service volume of  container: 100L

Min. output: 50L
Equipment height: 2200mm (with cover close)/3000m (with cover open ro upper limit )
Net weight: 1600kg (only for standard equipment)

Container: connected with vertical and protrudinig flange with leading edge, equipped with double jackets.
Heating: by letting the steam into the double jacket.
Service modes of container: atmosphere / vacuum
Base of container: welded and high-grade mirror polish
Upper cover: flanged and liftable.

The speed of slow-speed mixing system: 0-40 rpm, 1.5kw (frequency control).
The speed of high-speed homogenizing-mixing system :0-3500rpm,3KW (frequency control).
Installation power of vacuum pump: 1.45kw
Main installation power: 18kw (only for standard equipment, not other option)
Electric power: 380±10 V, 50 Hz.
Allowable fluctuation of voltage: ± 5%
Low voltage control: 24 V
The water consumption of hydraulic ring vacuum pump:4L/min
Adjustable height of machine frame: ±10mm
The air suction device for ventilating motor
Security protection at low-voltage of 24 V
Equipment is made according to GMP standard.
The machine body is fully made of stainless steel SUS304.

turbine emulsifier
