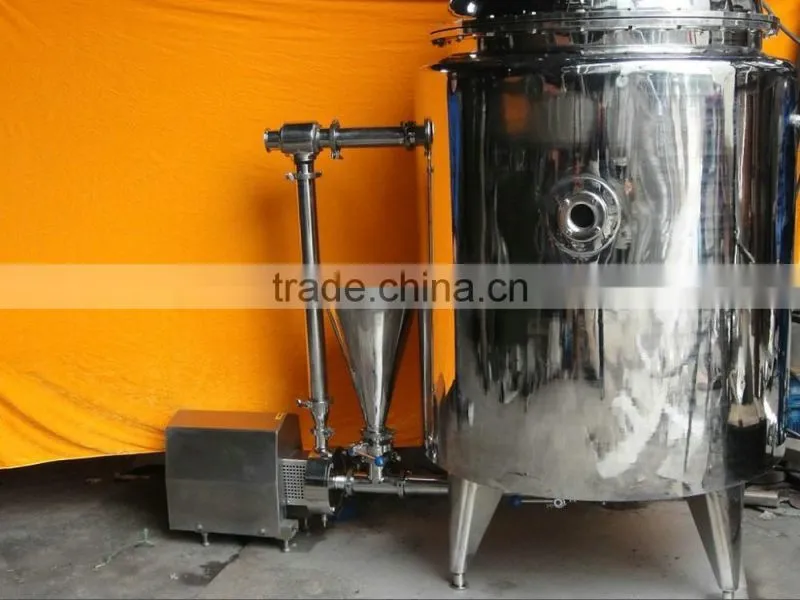

Emulsifier,Liquid Detergent Making Machine,Toothpaste Mixing Tank

RH series, high shear homogenizing vessel,manufactured by our DAFENG company with emotional design and advanced technique,

sometimes accepted according to requirement of GMP standards as per client's need.

Specification:

-high speed homogenizer (0-2800RPM) and low speed mixer-Paddle,impeller,propeller(0-60 rpm or per you need) for ordinary mixing.

-mixer for removing the product from the wall

 -double wall mixer,with heating and cooling function

 -with vacuum system or to be semi-open cover for easy work.

  -Easy cleaning

 -Mixer material real time temperature controller

  -Material feeding pipe connection

  -Material output

   -Capacity: 100-7,000L available or above.

  -Whole machine be stainless steel SS316L or SS304,inner&outer mirror polish.

  -power: 380V/ 3ph,50Hz or can be custom-made according to your country

Description:

1.There are three styles: vertical single layer,double layers,and 3 layers structure.

2.The polishing precision of inside wall is Ra0.45;The inside of Jacket3mm are heated By Electric or Steam or cooled by cooled water.

3.The outside layer 2mm that keeps warm uses PU(polyurethane foam) or Pearwool.

4.The parts that touch the medical liquid/Material adopt the SS316L material, the other parts SS304 which meets international standard.

5.There are other accessories as a water inlet,circumfluence entrance,Sanitizing and cleaning entrance and manhole for filling material, air vent, 0.22um, on the top.

And on the bottom there are condensated outlet/Oil out,temperature probe/Thermometer,pressure gauge,

if like,provide an entrance for measuring liquid level(ordinary or digital type)

6.The operation of Controlling system and the meter is showing the temperature of distilled water,

liquid level realize the auto-controlling of constant temperature and alarming when above the upper limit and below the lower limit.

Usage :

The product is mainly applied in such industries as daily chemical care products like shower gel,shampoo,dish washing detergent,facial cleanser,toothpaste,liquid detergent etc,

also in biopharmaceutical industry,food industry,paint and ink.

 The emulsifying effect is more prominent for material of high viscosity and high solid content&material.

1. Dairy product: sour and fresh milk, ice cream, cream slices and whey

2. Beverage: beer, mash, yeast, aerated water, concentrated fruit solution and fruit juice drinks
3. Food: ketchup, fruit paste, vegetable pulp, pudding, jam, jelly, seasonings, fruit filling, sweetener, yeast paste, salad seasonings, cakes, meat pulp, minced meat, veil fat and edible oil
4. Candy: syrup, thin cream filling and chocolate
5. Cosmetic: face cream, lotion, hair dye and essential oil
6. Medicine: pill paste, extract, emulsifying agent and ointment
7. Chemical: fat, solvent, resin, polymer and dyestuff

Technical Form:

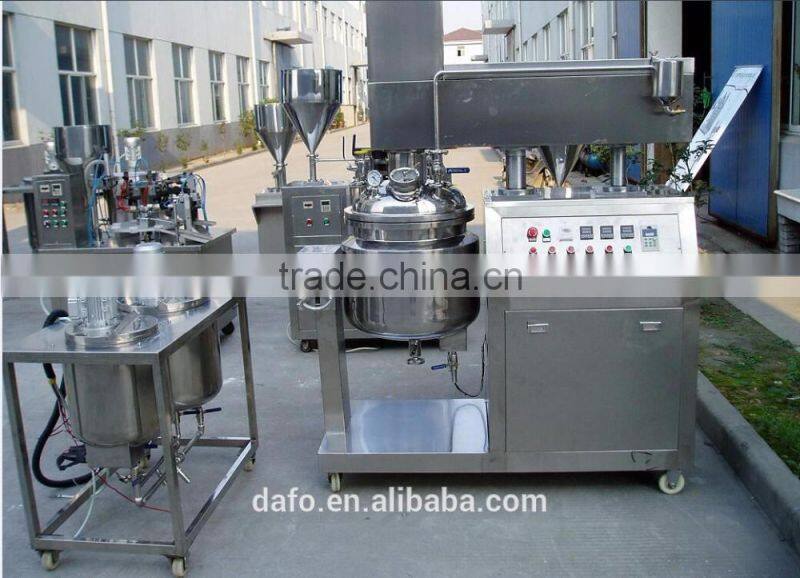

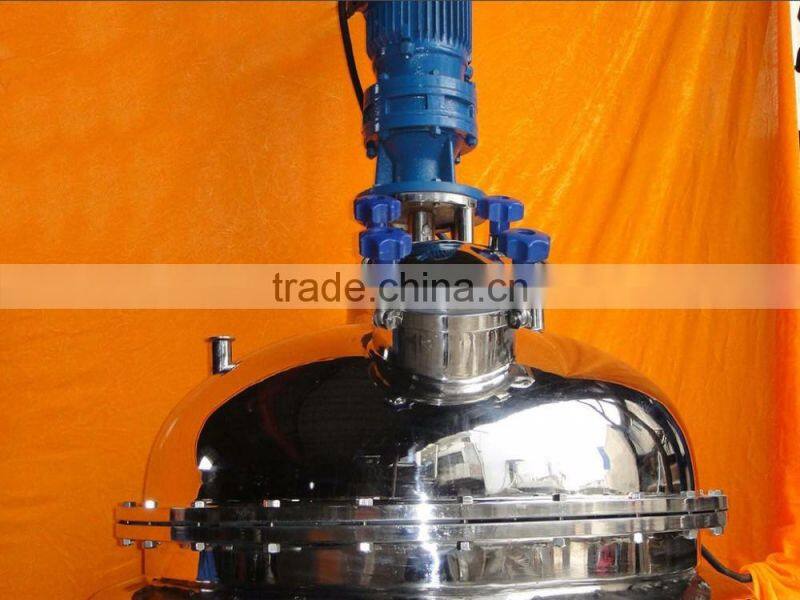

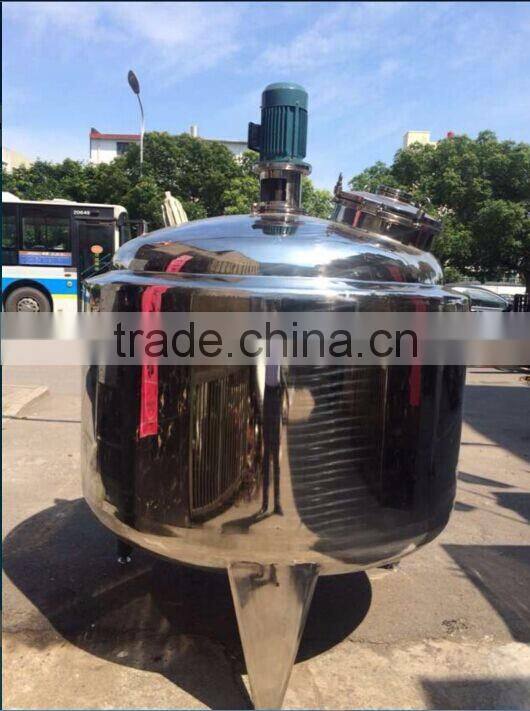

product showcase:

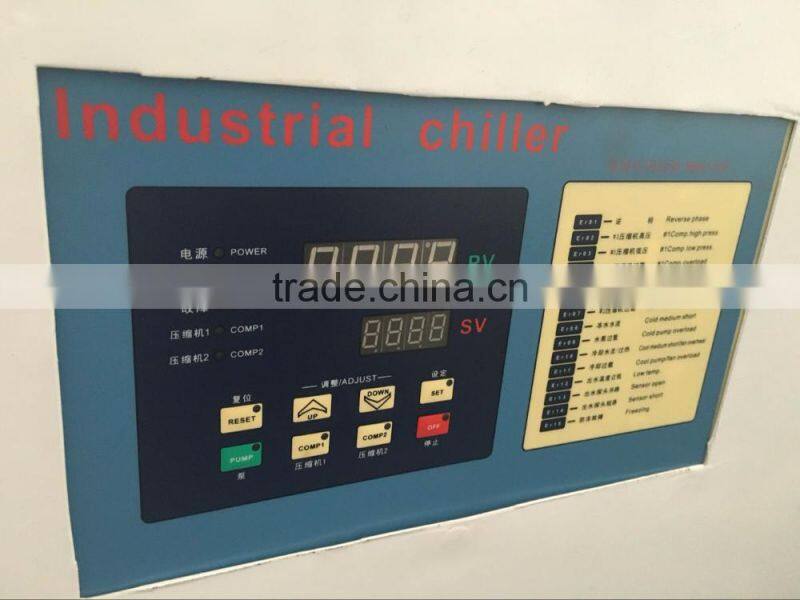

Surely,we make pumps and filters,chiller,which considered to accessories sometimes to ship together with our tanks,

please let us know if these you want shipped from us too.

 Please contact us if what you want is what we make exactly.
