Product Description
Steam jacket cooking kettle,jacketed steam cauldron
Introduce

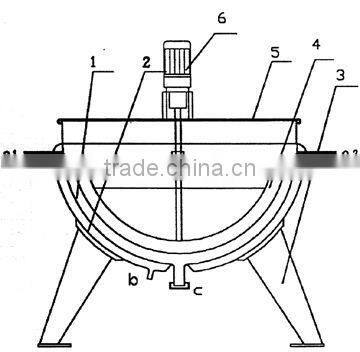

Jacketed kettle is widely used for pharmacy,food and chemical industry to cook,boil or concentrator as clients' need.It can be hot steam and electrical heating sources,also can add the agitator and coverconsisting of boiler body.stir device,titling system,worm wheel and worm rod and the boiler body can be rotated within 180 degree.
All the material in contact with media used stainless steel
featuring good anticorrosion and durability,which are in accordance with GMP standard.
Material:
a) SUS304/SUS316L, carbon steel outer pot (Q235B) treated with anti-rust paint
b) All Stainless Steel Jacketed Kettle.The whole machine is made of stainless steel (SUS304/SUS316L).
Usage:
1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working
conditions.
Technical parameters
Model |
50L |
100L |
200L |
300L |
400L |
500L |
600L |
800L |
1000L |
Depth of Pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
Working pressure |
≤0.09Mpa |
||||||||
Stirring speed |
36 r/min |
||||||||
Stirring power(kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
Tilting type
Vertical type
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
OUR FACTORY
Zhejiang Dafeng Light Industrial Machinery Co.,Ltd can provide our customers with high quality stainless steel Chemical Reactors with agitation to process product. These tanks with high pressure resist,high temperature resist for dye,paper,pharmaceutical,and other chemical process industries,standards meet to national pressure vessel manufacture requireme
