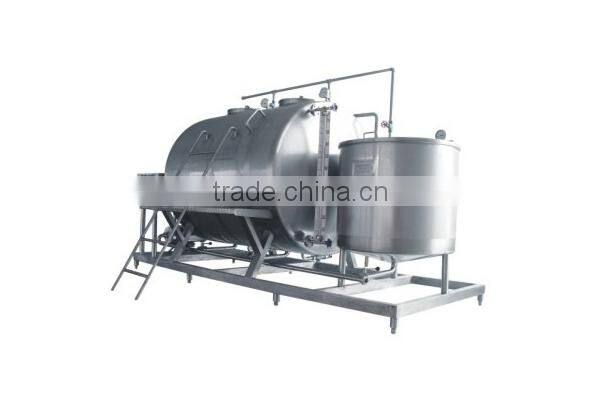

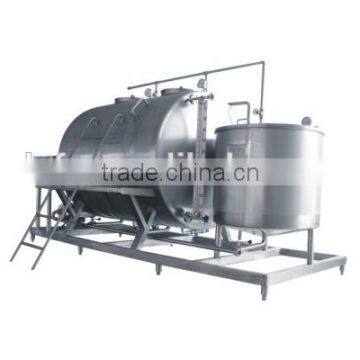

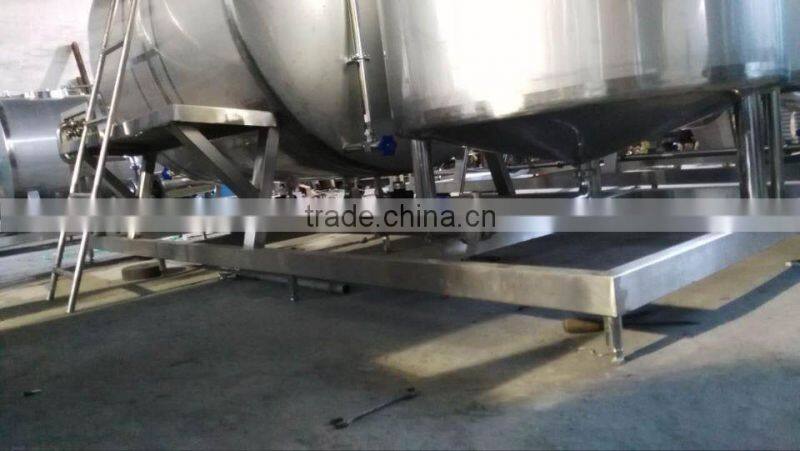

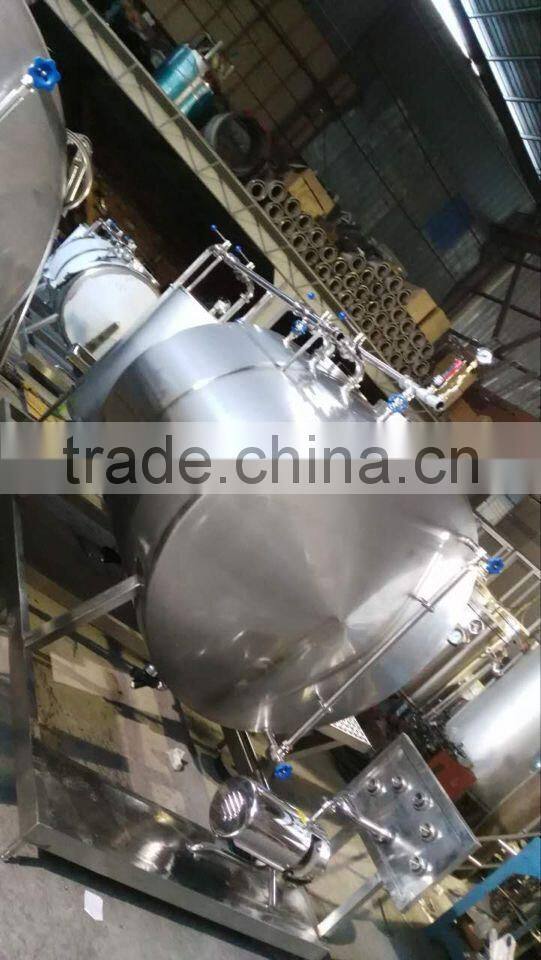

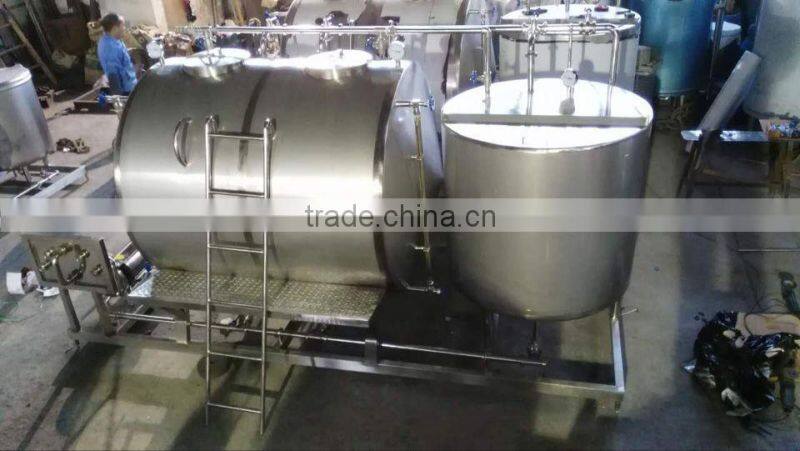

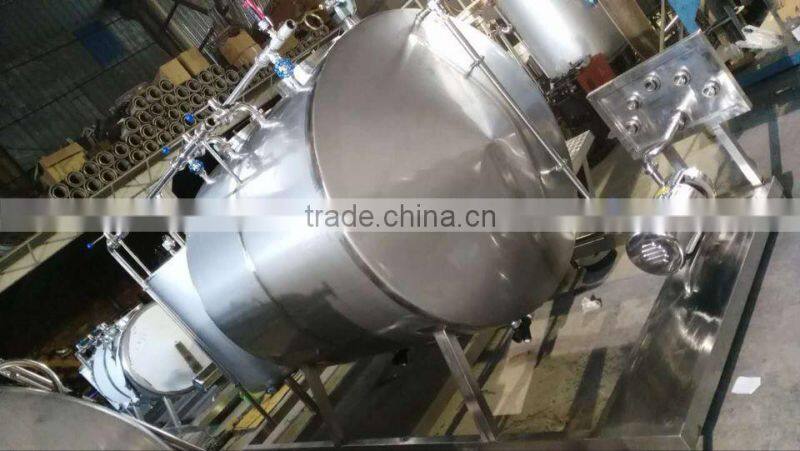

Model 3500L Semi Automatic Cip Systems

Model 3500L Semi Automatic Cip Systems thumbnail-1
Model 3500L Semi Automatic Cip Systems thumbnail-2
Model 3500L Semi Automatic Cip Systems thumbnail-3
Model 3500L Semi Automatic Cip Systems thumbnail-4
Model 3500L Semi Automatic Cip Systems thumbnail-5
Model 3500L Semi Automatic Cip Systems thumbnail-6
Model 3500L Semi Automatic Cip Systems photo-1
Model 3500L Semi Automatic Cip Systems photo-2
Model 3500L Semi Automatic Cip Systems photo-3
Model 3500L Semi Automatic Cip Systems photo-4
Model 3500L Semi Automatic Cip Systems photo-5
Model 3500L Semi Automatic Cip Systems photo-6
US$ 1,500 - 9,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
DAFENG
Contact Supplier Request Quote Chat Now
Advanced Tech. Co., Ltd. Wenzhou
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name DAFENG
Model Number DE
Voltage According to clients' requirements
Power(W) 15KW-200KW
Weight 200KG-2000KG
Dimension(L*W*H) 1300L/3500L
Processing Types Beer, Beer,wine,juice,milk
Certification CE2000/ ISO9001
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas
Application
It is widely used in food beverage production enterprises which are high mechanical degree such as beverage, dairy, fruit juice, wine and so on.
Characteristics

Used for material pipes,container equipments cleaning for dairy product factory,beer,beverage,chemical processing.Optional Choices-Manual works,semi-automation system,the full-automactic PLC system.

The complete machine consist of Acid tank,Alkali tank,hot water tank,controller etc,
the type of semi-operation,full automatic operation home brand,full automatic operation SIMENS Brand for your optional.





1.Technological parameter reference

A. Total volume:

a. Acid, alkali liquor cell: 3×0.6m2

b. Cleaning cell: 0.6m3

B. Ratio of filling volume: 80%

C. Volume classification: ordinary pressure volume

D. Cleaning procedure: 2

E. Time-consumed in cleaning: 120 min (adjustable)

F. Steps of cleaning liquids: clean water——alkali liquor——clean water——acid liquid——clean water

G. Operating pressure:

a.Container: static pressure of the liquid column

b.Heat exchanging pipe: under 0.4Mpa

H.Operating temperature:

a.Fluid cell:60~80°C

b.Clean water cell: room temperature

c.Heat exchanging pipe:under 138.8°C

I. Material items:

a. storage cell: 0.5% nitric acid 2% caustic liquor

b. heat exchanging pipe: clean water steam



2.Specification table

Tank size

1000L-12000L

Tank Name

Alcali tank,acid tank,hot water tank,water recycle tank and pipe

Cleaning recycles

Single circuit ,double circuitS, sthree circuits ,four circuits

Heating method

Coil pipes inside ,plate tubular/ electric heating , stteam heating

Automatic types and charastics

Full-Automatic operation method

1. flow rate automatically control;

2. temperature automatically control;

3. auto compensate the cip liquid level;

4. auto compensate the liquid concentrate;

5. cleaning program automatically transfer;

6.autmatically alarm



Semi-automatic operation method

1. temperature automatically control

2. electrical control with manual operate the other matters.



Manual operation operation method

1. manual operate on the cleaning process



 Model 3500L Semi automatic cip systemsModel 3500L Semi automatic cip systemsModel 3500L Semi automatic cip systemsModel 3500L Semi automatic cip systemsModel 3500L Semi automatic cip systems
