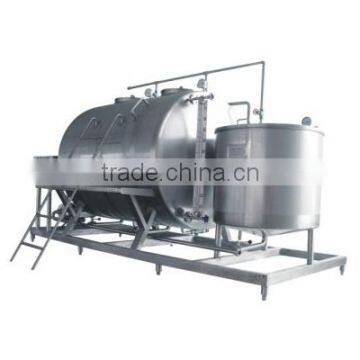

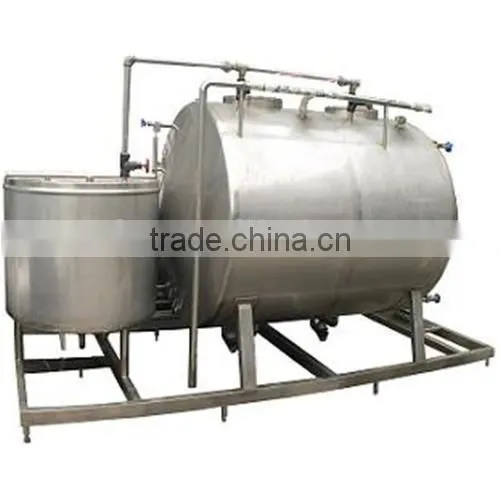

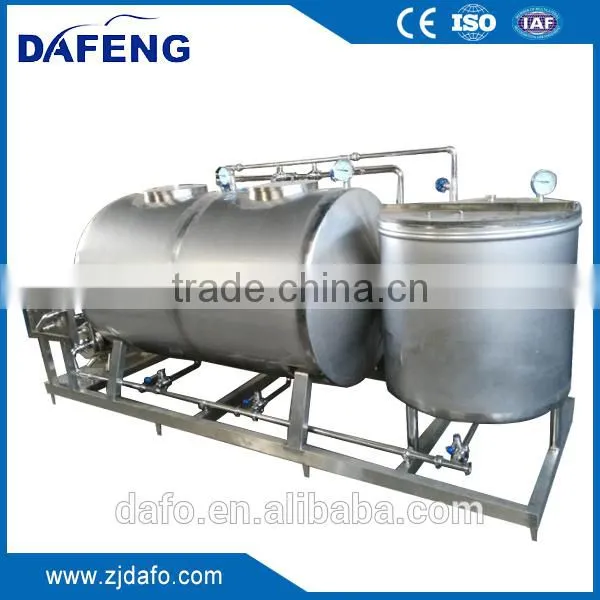

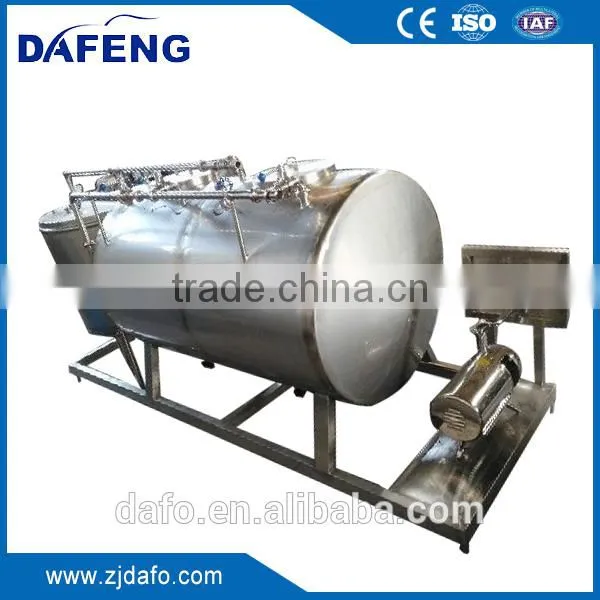

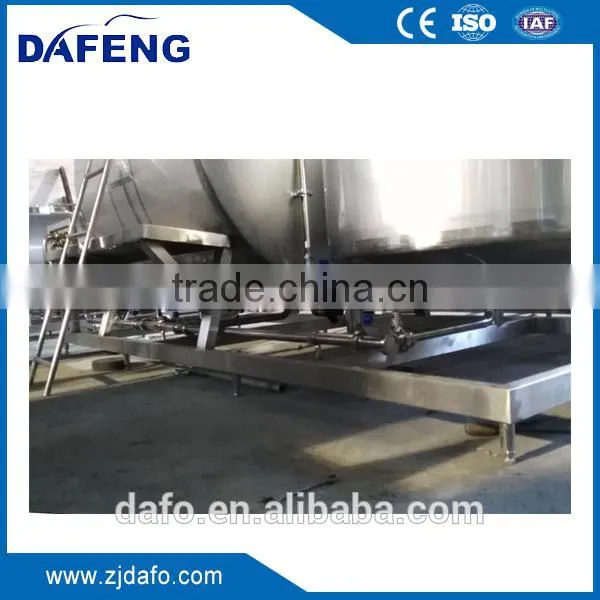

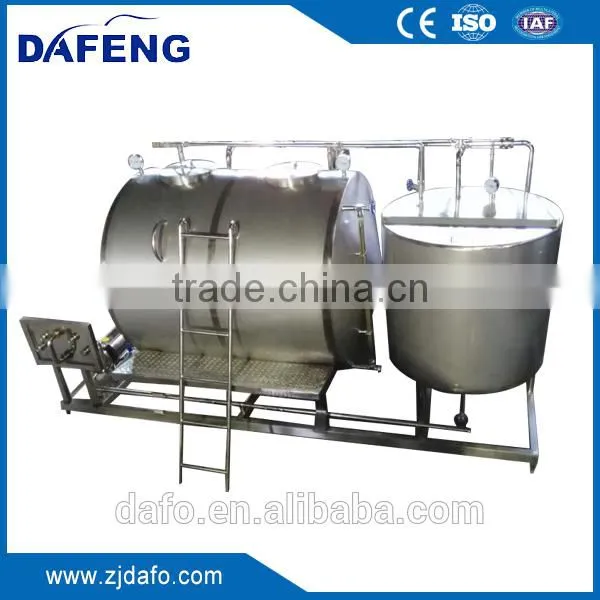

Model3500L Semi-automatic brewery cip system/cip for 2000L brewery
The whole CIP cleaning system is installed on a frame and supporter which is easy for transportation especially exporting; The heating way for the cleaning liquid is auto-heating.
The operating principle: set the cleaning temperature through the temperature controller to control the steam control valves opening frequency to limit the steam amount making the cleaning liquid keep at needed temperature. All the tanks liquid level in the CIP system adopt the auto-alarm. It will be increased the concentrated acid and alkali through manually way when the cleaning liquid concentration reduced.
The cleaning process transforming should be operated by the manually to change some relevant pipelines and valves. Workers should increase the water when the tank lack of water.
1.Technological parameter reference
a. Acid, alkali,hot water 1.25m3x2+1m3
b. Cleaning cell: 0.6m3
B. Ratio of filling volume: 80%
C. Volume classification: ordinary pressure volume
D. Cleaning procedure: 2
E. Time-consumed in cleaning: 120 min (adjustable)
F. Steps of cleaning liquids: clean water——alkali liquor——clean water——acid liquid——clean water
G. Operating pressure:a.Container: static pressure of the liquid column
b.Heat exchanging pipe: under 0.4Mpa
H.Operating temperature:
a.Fluid cell:60~80°C
b.Clean water cell: room temperature
c.Heat exchanging pipe:under 138.8°C
I. Material items:
a. storage cell: 0.5% nitric acid 2% caustic liquor
b. heat exchanging pipe: clean water steam
2.Specification table
Tank size |
1000L-12000L |
|
Tank Name |
Alcali tank,acid tank,hot water tank,water recycle tank and pipe |
|
Cleaning recycles |
Single circuit ,double circuitS, sthree circuits ,four circuits |
|
Heating method |
Coil pipes inside ,plate tubular/ electric heating , stteam heating |
|
Automatic types and charastics |
Full-Automatic operation method |
1. flow rate automatically control; 2. temperature automatically control; 3. auto compensate the cip liquid level; 4. auto compensate the liquid concentrate; 5. cleaning program automatically transfer; 6.autmatically alarm |
|
Semi-automatic operation method |
1. temperature automatically control 2. electrical control with manual operate the other matters. |
|
|
Manual operation operation method |
1. manual operate on the cleaning process |
|
