Automatic CIP cleaning system(Clean-in-place)
Full automatic milk cip system
The CIP cleaning system(CIP, cleaning system)
For its easily operating and safely automatic cleaning system,
it is almost recommended by the all of food drinks and medicine processing industry.
The CIP online system can not only clean the medicines, but also control the microorganism's cleaning

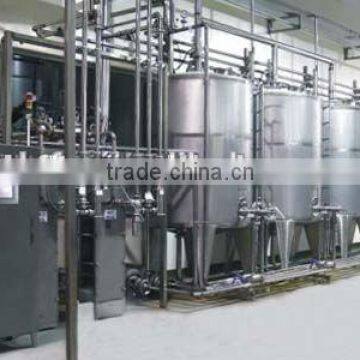

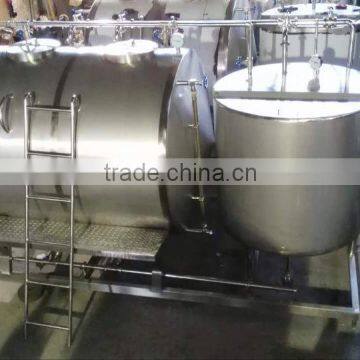

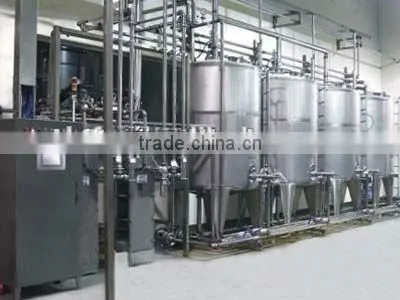

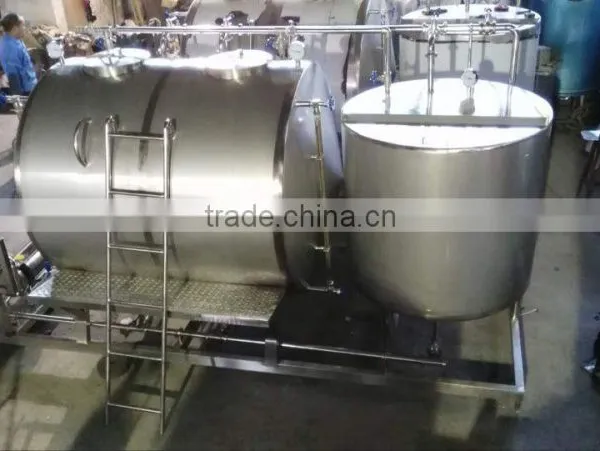

It with a new effective cleaning technology, which can be applied in the industries, such as beer, drink, coffee, sugar-refining and biology pharmacy etc . It is made up of three connecting body storage tanks. That is acid liquor tank, alkali liquor tank and fresh water tank. CIP cleaning equipment makes use of centrifugal pump to add washing liquid to material pipeline and equipments container in circle and be up to the purpose of cleaning. CIP cleaning equipment can clean the equipments in place without moving and disassembling the equipments, pipes and valves. So it can improve equipment utilizing rate and save labor intensity.
The automatic CIP system is controlled by Siemens PLC, full-auto controller.
The plate-type heat exchanger will heat on line, The concentration test of acid alkali and the high and lower level of tank and as well as control valves are all important configures at high quality.
The operating principle: set the cleaning temperature through the temperature controller to control the steam control valves opening frequency to limit the steam amount making the cleaning liquid keep at needed temperature. All the tanks liquid level in the CIP system adopt the auto-alarm. It will be increased the concentrated acid and alkali through manually way when the cleaning liquid concentration reduced.
Application
It is widely used in food beverage production enterprises which are high mechanical degree such as beverage, dairy, fruit juice, wine and so on.
Characteristics
Used for material pipes,container equipments cleaning for dairy product factory,beer,beverage,chemical processing.Optional Choices-Manual works,semi-automation system,the full-automactic PLC system.
1.Technological parameter reference
a. Acid, alkali liquor cell: 3×0.6m2
b. Cleaning cell: 0.6m3
B. Ratio of filling volume: 80%
C. Volume classification: ordinary pressure volume
D. Cleaning procedure: 2
E. Time-consumed in cleaning: 120 min (adjustable)
F. Steps of cleaning liquids: clean water——alkali liquor——clean water——acid liquid——clean water
G. Operating pressure:a.Container: static pressure of the liquid column
b.Heat exchanging pipe: under 0.4Mpa
H.Operating temperature:
a.Fluid cell:60~80°C
b.Clean water cell: room temperature
c.Heat exchanging pipe:under 138.8°C
I. Material items:
a. storage cell: 0.5% nitric acid 2% caustic liquor
b. heat exchanging pipe: clean water steam
2.Specification table
Tank size | 1000L-12000L | |
Tank Name | Alcali tank,acid tank,hot water tank,water recycle tank and pipe | |
Cleaning recycles | Single circuit ,double circuitS, sthree circuits ,four circuits | |
Heating method | Coil pipes inside ,plate tubular/ electric heating , steam heating | |
Automatic types and charastics | Full-Automatic operation method | 1. flow rate automatically control; 2. temperature automatically control; 3. auto compensate the cip liquid level; 4. auto compensate the liquid concentrate; 5. cleaning program automatically transfer; 6.autmatically alarm |
Semi-automatic operation method | 1. temperature automatically control 2. electrical control with manual operate the other matters. | |
Manual operation operation method | 1. manual operate on the cleaning process | |
Advantages:
1. It can make the production plan more reasonable,our price is reasonable and a big supply ability.
2. To compare with the handwash,it doesn't influence the cleaning result because of the worker's difference; on the contrary, it can Perfect the products' quality.
3. It can prevent the dangers during cleaning work, so that we can save the work force.
4. It can save the compound, the steam, the water and the cost of production.
5. It can extend the service life of the machine parts.
6 . Includes three types, one is the handwork system, one is the semi-automation system, and the other is the whole-automation system, so it is easy for customers to select.
Welcome for your real demand!
