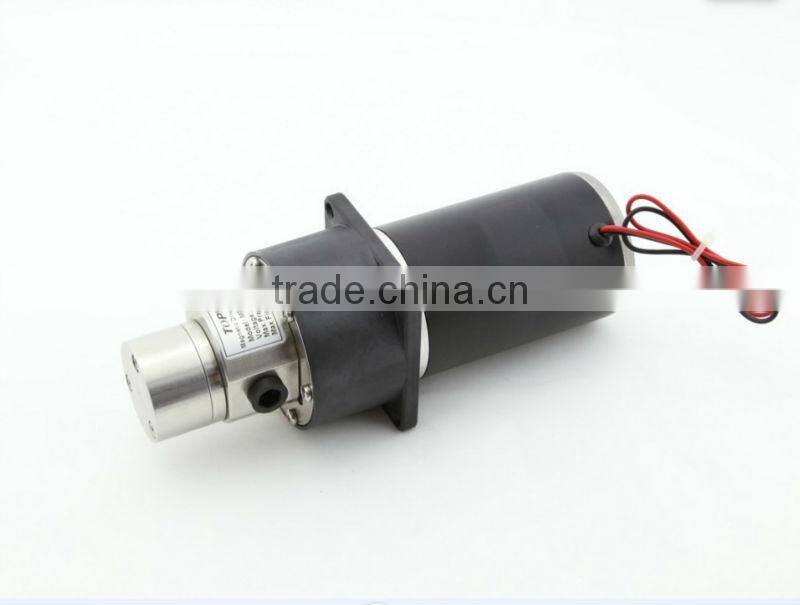

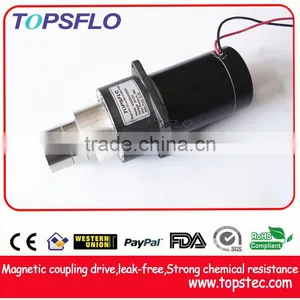

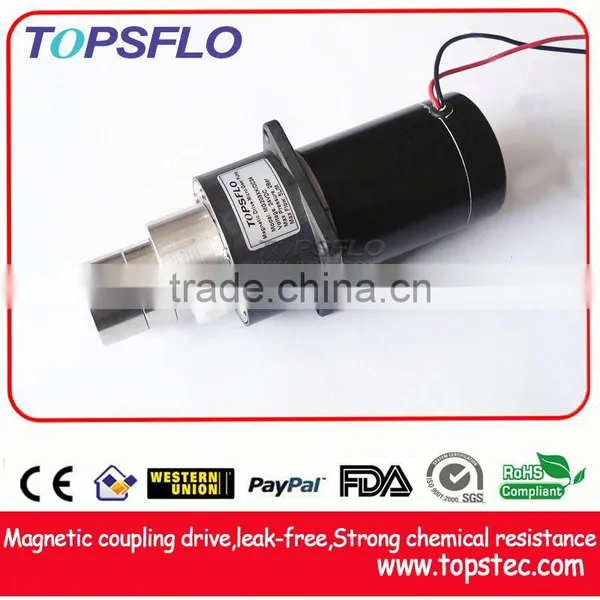

Magnetic Drive Continuous Inkjet printer gear pump/Direct to Garment printer pump
Product Introduction:
1.Magnetic gear pumps, using magnetic coupling drive without leakage,316 stainless steel shell, PEEK or PPS material gear,PTFE materials for the static sealing and bearing. Assembled the built-in limit pressure valve.
2. Pump can be used in the -0.1 Mpa~2Mpa closed systems, the rated output pressure is 0.3 Mpa (medium: water), the highest output 1.4 Mpa pressure, flow rate 50~3500 ml / min.
3. Widely used in medical machinery, fine chemicals, water treatment printing, cleaning, packaging, food processing,and other areas of liquid delivery.
Normal Parameters:
1. Altitude: ≤ 2500 M
2. Humidity environment: ≤ 85%
3. Fluid viscosity: 0 ~ 3000 CPS
4. Ambient temperature: -10 ~ 50 °C
5. Fluid temperature: -10 °C ≤ T ≤ 100 °C (except for the freezing)
6. Working way: continous working
7. Apply the media of: acid and alkali, salt, organic solvents, oils.
8. Lifetime 1500~2000hours

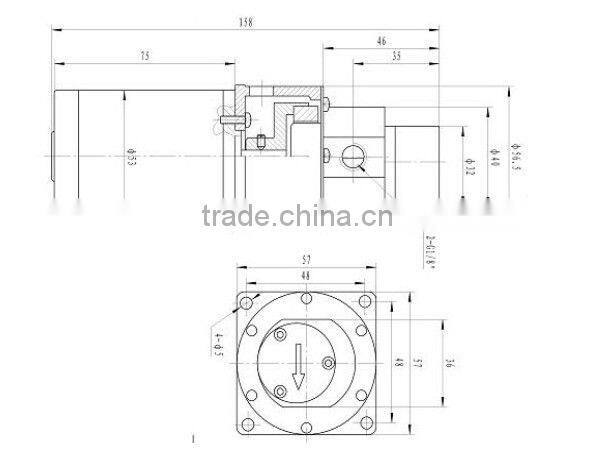

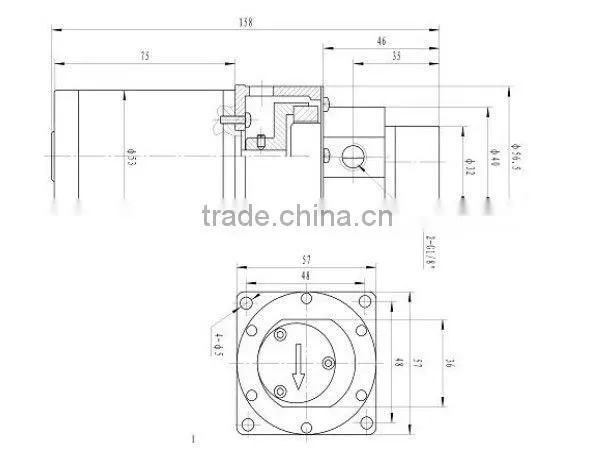

Dimension (mm)
| Model | Max Head Pressure (Bar) | Max Flow scope (ml/Min) | Power (W) | Voltage (V) | Inlet/Outlet Diameter | ml/rpm (reference 3000RPM) |
| MG204XK/DC24 | 10 | 1000 | 70W | DC24 | G1/8" | 0.27 |
| MG209XK/DC24 | 7 | 2500 | 70W | DC24 | G1/8" | 0.55 |
| MG213XK/DC24 | 7 | 3500 | 70W | DC24 | G1/8" | 0.75 |
Note: 1. "04" means the gear with the height of 4mm, "09" means 9mm, "13" means 13mm .
2. if needed : "L" limited pressure valve, " R " non return valve , please specially specify in advance.
3. "XK" PEEK gear, "YT" Alloy gear, if the liquid contain rigid particles,such as pigment ink,recommend use YT gear.
OEM and ODM service are avaiable under your request.
The specifications only for reference, for details, please contact with us!
