high levels of corrosion resistance school science lab equipment pump

MG200 Series / high levels of corrosion resistance continous working school science lab equipment pump

Introduction:
1. Using magnetic coupling drive without leakage, 316 L stainless steel shell, PEEK materials gear, PTFE sealing
materials,use brushless DC motor combination with smaller size, can with built-in limit pressure valve, the flow rate
can be realized adjustment without steps.
2. Pump can be used in the -0.1 Mpa~2Mpa closed systems, the rated output pressure is 0.5 Mpa (medium: water),
the maximum output pressure is 1.4 Mpa , output flow rate with 50~3500 ml / min.
3. Widely used in hemodialysis machines, printing machine,pictorial machine, medicine, chemicals,water treatment,
printing, cleaning, packaging, filling machines, food processing, and other areas of liquid delivery, particularly suitable
for printing machine,pictorial machine,barcode machine.

Features:
Small Size ,Leak-Free
Smooth, Pulseless Delivery
Chemically Resistant
Easy to Service
Proven Reliability
Advanced Pump Technology
Wide Range of Options
OEM Configurations
High-System Pressure Capability
Enhanced Efficiency

Normal Parameters:
1. Altitude: ≤ 2500 M
2. Humidity environment: ≤ 85%
3. Fluid viscosity: 0 ~ 3000 CPS
4. Ambient temperature: -10 ~ 50 Degree celsius

5. Fluid temperature:
-10  ≤ T ≤ 100 Degree celsius (except for the freezing)
6. Working way: continuous working
7. Apply the media of:
acid and alkali, salt, organic solvents, oils.
8. Lifetime above 8000hours

Application:

Can be widely used on various of fields, such as medical apparatus and instruments, scientific experiment, petrochemical, pharmacy, electroplate, environmental protection, printing and dyeing, cleaning, jewels processing, farming and forestry, electronics industry, light mechanism, national defense and so on. It also can be used to transport, wash and pour, spray, drip and inject, measure all kinds of liquid medium.

Specification:

Note: 1. "04" means the gear with the height of 4mm, "09" means 9mm, "13" means 13mm .
2. if needed : "L" limited pressure valve, " R " non return valve , please specially specify in advance.
3. "XK" PEEK gear, "YT" Alloy gear, if the liquid contain rigid particles,such as pigment ink,recommend use YT gear.

We have same similar products,please have a look

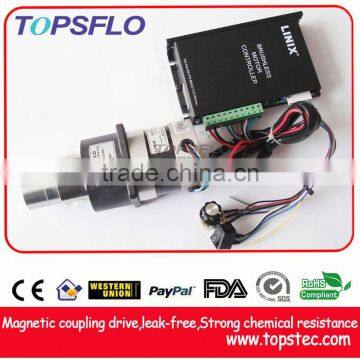

DC brushless motor, controller build-in

OEM and ODM service are avaiable under your request.
The specifications only for reference, for details, please contact with us!
