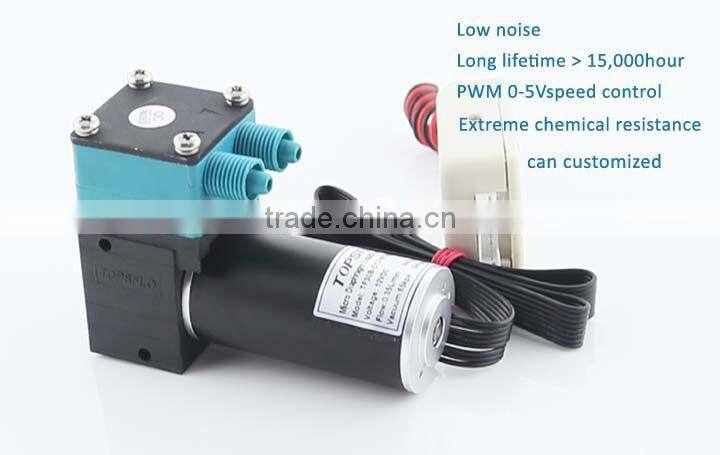

High Performance Mini Diaphragm lab vacuum pump
TOPSFLO micro diaphragm pumps are based on a simple principal,
the circular power from the motor is converted into oscillating movement by an
eccentric, which moves up and down its central point, this motion is then transferred
to a diaphragm by means of a connecting rod, an elastic diaphragm, which in
conjunction with an inlet and outlet valve creates a pumping action.
Specification:
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Head | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (M) | (KPa) | (L/min) | |
| TF30B-C | TF30B-C12-W1003(inside controller) |
TF30B-C12-V6504 |
6/12/24 | 0.4/0.24/0.15 | ≥10 | -65 |
water: 0.35 gas: 4.5 |
| TF30B-D | TF30B-D12-W1003 (outside controller) |
TF30B-D12-V6504 ( outside controller) |
6/12/24 | 0.4/0.24/0.15 | ≥10 | -65 |
water: 0.35 gas: 4.5 |
|
" W " means water/liquid pump, " / V " means vacuum pump, "6/12/24" means different voltages optional.
| |||||||
| Pump Weight:250g; Pump Size:80mm*31mm*60mm; Inlet&Outlet with locknut:OD 4.9mm/ID 2.8mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noiseMaterials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM Note:other water flow rates of 0.05L/0.15L/0.2L/0.3L can be customized as requirements. C- inside controller type D- outside controller type | |||||||
| Motor type and code:"C"means Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D"means Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions. | |||||||
Product Feature
1. Oilless, environmental protection media, can be used in the food industry
2 .Diaphragm liquid pumps have good self-priming function
3. Can run dry, there is no danger or damage
4. 24 hours continuous running is workable (will not stop working because of overheating)
5. Compact design
6. Can be made by PTFE (polytetrafluoroethylene) membrane, FPM valve (FKM), which are the good materials of anti-acid and alkali
7. Patented diaphragm structure, long maintenance-free life expectancy. ( if want to replace the diaphragm by your own, just need unscrew the head screws and do the replacement)
Product Advantage
1.Adopt enhanced importing dual bearings, which arevery wearable, can well match with 15,000 hours pump lifetime & .
2.Adopt metal balance cake, the the pump has good balance performance, very small vibration. (Domestic counterparts with plastic weights, has big vibration
3 With imported rubber diaphragm, high purity, good wear resistance. Besides, there is EPDM, PTFE valve, EPDM, FPM diaphragm optional, all these materials have better chemical resistance capability. .
4 The overall design & inner structure are the same as foreign famous KNF, Parker brands, the overall design is reasonable & compact, which assured TOPSLFO pumps’ high performance and low noise, low vibration and long lifetime.
5.Our Micro Diaphragm Pumps are available with a choice different drive motors.
| |
|
|
|
|
| A motor | B motor | C motor | D motor | H motor |
A- Premium duty brush DC motor
lifetime 5,000hours,longer endurance lifetime than other normal DC membrane pump
B- Economical brush DC motor
lifetime:1,500hours
C- Coreless Brushless DC Motor
A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours
D- Coreless Brushless DC motor with outer controller
With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work
H- Brushless DC Motor
Long lifetime 10000hour
vacuum
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 30-40days after order confirmation (by vacuum or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of micro pumps(micro BLDC centrifugal water pump,micro gear pump,high performance diaphragm vacuum/liquid pump )for over 10 years with excellent quality and competitive.
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice
If you are unsure which pump is best suited to you needs, please give us some information on your intended use and the plumbing configuration, and we will be happy to advise. We aim to ensure customers get what they need, and we won't try and sell you something that is not suited to your requirements!
