Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > TOPSFLO High Performance Silent Vacuum Sealer Machine Pump
TOPSFLO High Performance Silent Vacuum Sealer Machine Pump
US$ 12 - 13
MOQ: 30 Pieces
Key Specifications
Get Latest Price
Brand Name:
TOPSFLO
Model Number:
TM40-B
Theory:
Other, vacuum pump
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Temperature FDA Coffee Making Machines PumpNegotiableMOQ: 200 Pieces -
Stainless Steel Food Grade Homebrew Configuration System PumpNegotiableMOQ: 200 Pieces
-
Stainless Steel Food Grade 27LPM 5M Homebrewing PumpUS$ 169 - 170MOQ: 1 Piece
-
Craft Brewing Pump Similar Chugger PumpUS$ 169 - 170MOQ: 1 Piece
-
High Temperature Resistant Homebrewing PumpUS$ 169 - 170MOQ: 1 Piece
Brand Name
TOPSFLO
Model Number
TM40-B
Theory
Other, vacuum pump
Structure
Diaphragm Pump
Usage
Air Pump
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, DC power, Battery
Pressure
Other, High pressure 250kpa,vacuum -75kpa, 250kpa
Application
Other, Air/Gas

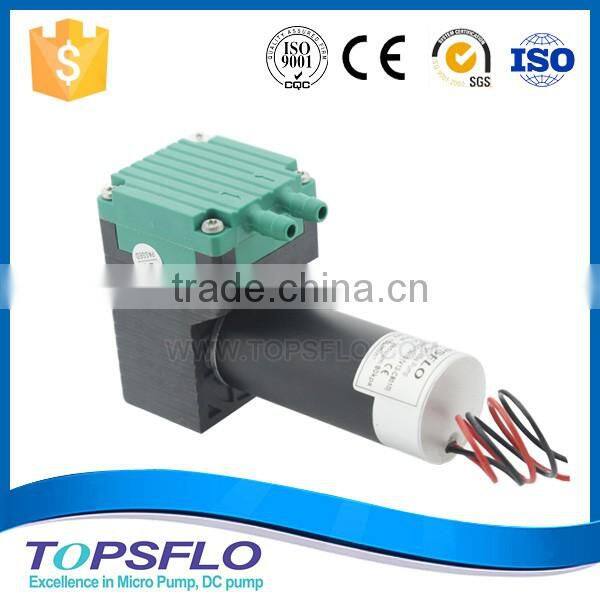

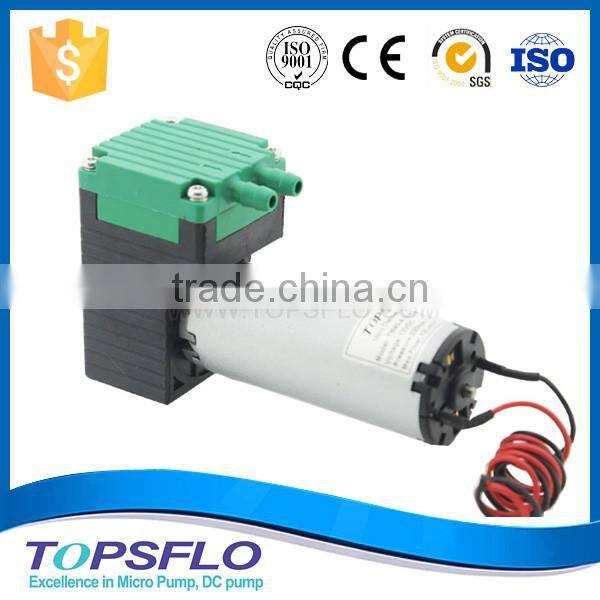

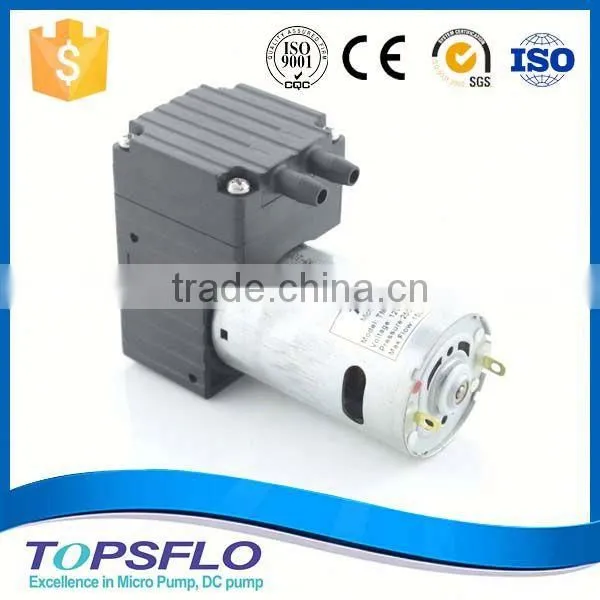

TOPSFLO High Performance Silent vacuum sealer machine pump
Product Description
Specification:
| I,Introduction | ||||||
| 1) Part Name: | Micro Membrane Vacuum Air Pump | |||||
| 2) Model: | TM40-B12-V7011 | |||||
| wire UL1007 24AWG OD:1.4mm | ||||||
| 3) Membrane Material: | EPDM | |||||
| 4) Housing Material: | PPE | |||||
| 5) Weight | 280g | |||||
| II,Electrical characteristics: | ||||||
| NO. | ITEMS | SPECIFICATION | NOTE | |||
| 1 | Poles | red "+", no mark "-" | ||||
| 2 | Rated voltage | DC12(V) | ||||
| 3 | Rated current ( no load ) | ≤0.7A | ||||
| 4 | Peak current | ≤5A(4.2±20%) | ||||
| 5 | Max vacuum pressure | -70Kpa± 5Kpa | ||||
| 6 | Maximum air flow | 10~13.5 (L/min) | No pressure and open outlet | |||
| 7 | Noise | ≤52dB/ 1M MAX | ||||
| 8 | Size | 86*65.25*40mm | ||||
| 9 | Accumulated running Lifetime | 1000-1500H | At rated speed, No-load | |||
| 10 | Working rated | intermittent | ||||
| 11 | Ambient temperature | 0-45°C | ||||
| 12 | Operating air temperature | 0-55°C | ||||
More Features:
• Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM 40 Series to push the performance envelope in a lightweight, compact size.

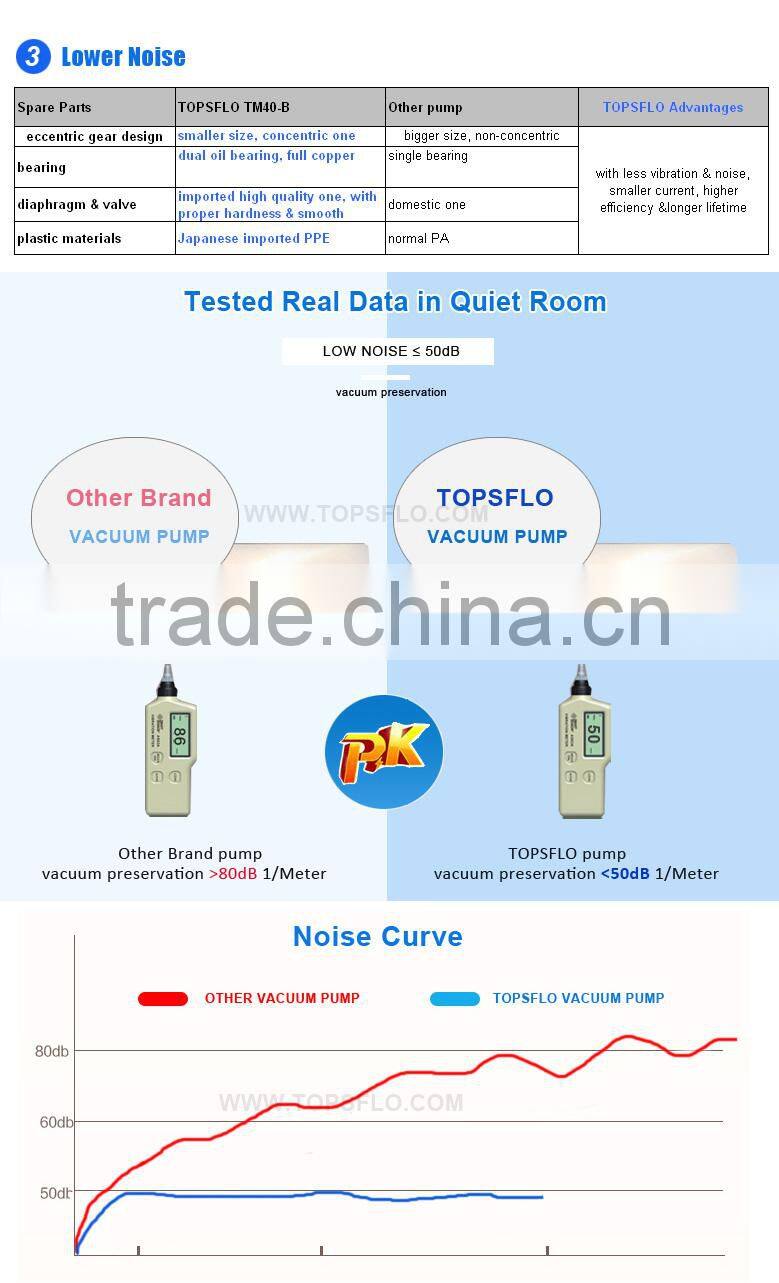

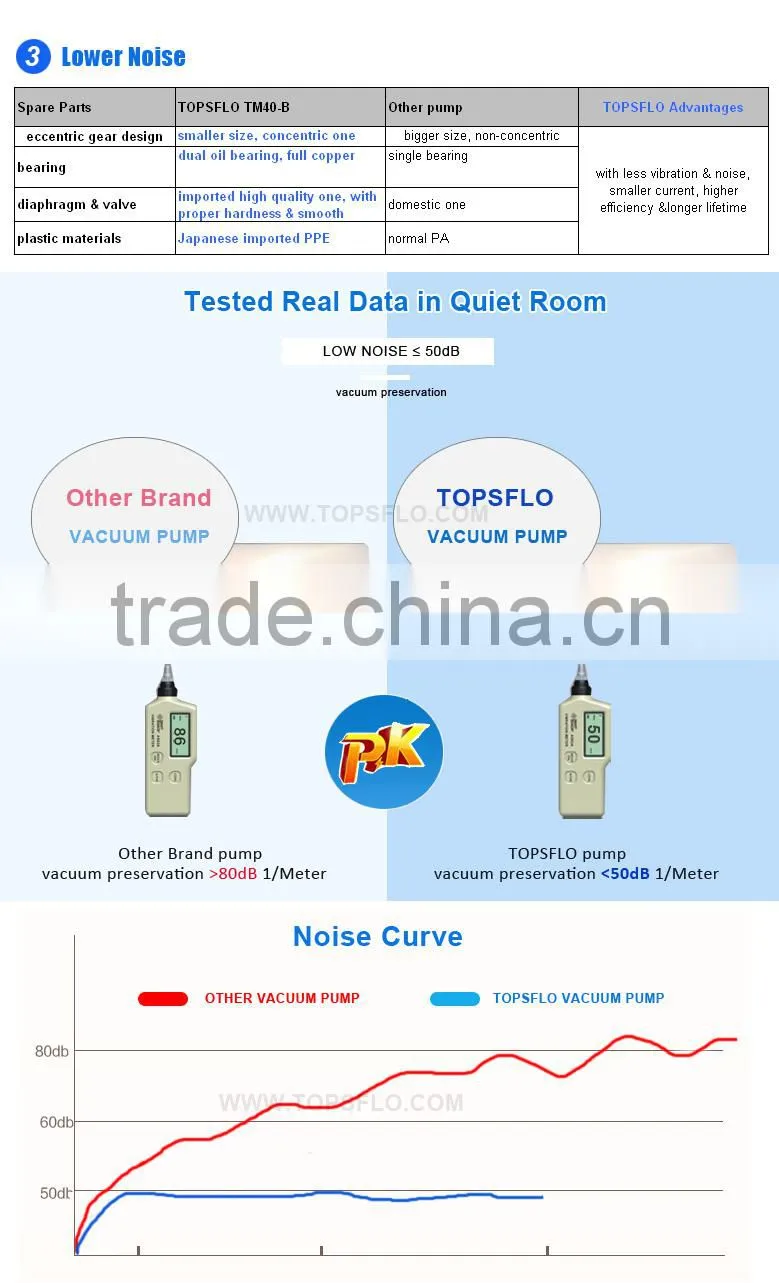

• Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
• Lasts Reliably Longer
• Uncontaminated flow
No contamination of the media due to oil-free operation
• Little vibration
Because of leading edge technologies, top quality bearing, superior brushmotor
• High level of gas tightness
Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
• Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected

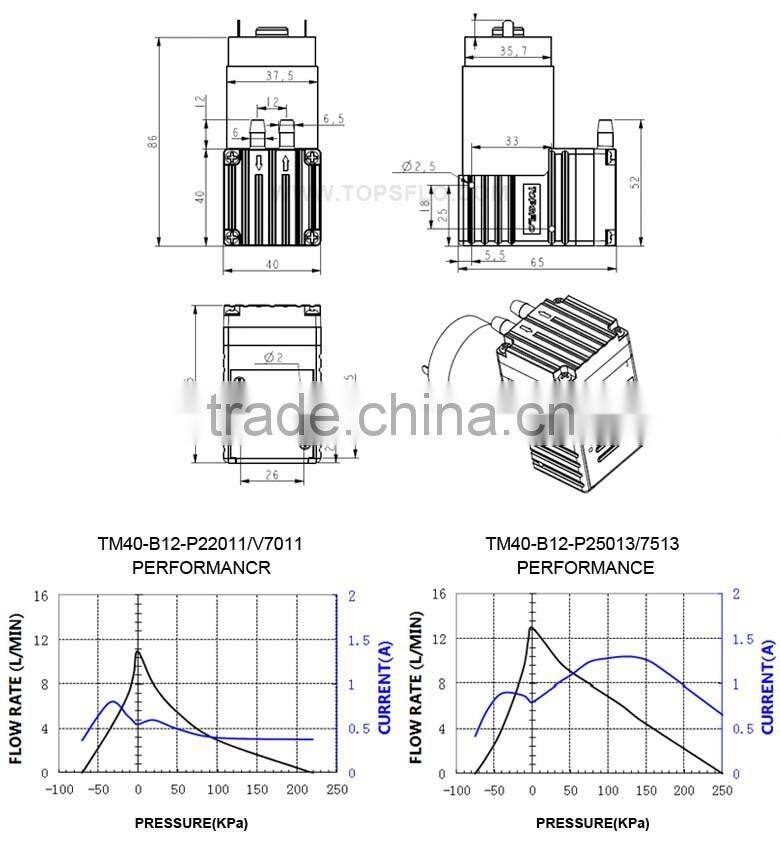

Dimension(mm) & Curve:
More Vacuum Pump
|
|
|
|

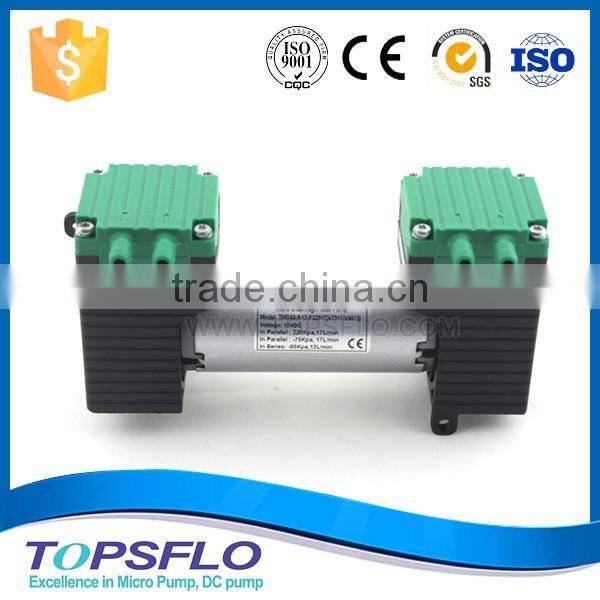

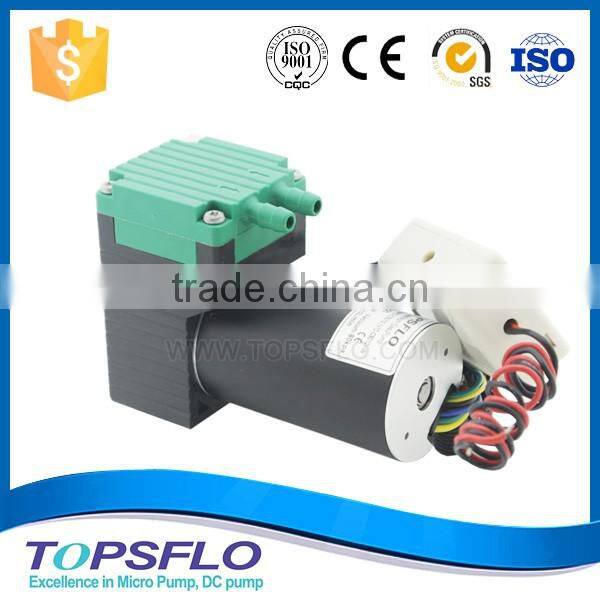

| TM40-A | TM40-C | TM40-F PWM 0-5V | TMD40-A |
|
PRESSURE 180KPA VACUUM -75KPA FLOW 10L |
PRESSURE 100KPA VACUUM -75KPA FLOW 10L |
PRESSURE 250KPA VACUUM -80KPA FLOW 10L |
PRESSURE 220KPA VACUUM -70KPA FLOW 17L |
