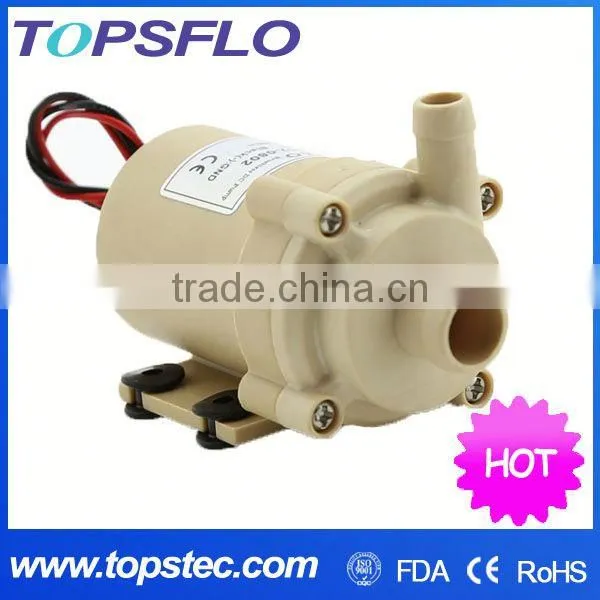

12v or 24v dc Micro Juice Dispensing Machine Pump
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Silent Mini dc Water Pump for Hot Thermostat Machine for Coffee Machine
-
dc Centrifugal 12v or 24v Silent Vending Machines Coin Operated Coffee Machine Pump
-
Long Lifetime Silent Water Pump for Coffee Maker
-
dc Centrifugal 12v or 24v Silent Hot Thermostat Machine for Coffee Machine Pump
-
Continuous Operation Light Weight Low Noise Juice Drinking Processing Machine Pump
-
High Temperature FDA Backpack Drink Dispenser Pump
Product Details
| Brand Name | TOPSFLO | Model Number | TL-B02 | |
| Theory | Centrifugal Pump | Structure | Single-stage Pump | |
| Usage | Water | Power | Electric | |
| Standard or Nonstandard | Standard | Fuel | Other, DC power, Battery, Solar panel | |
| Pressure | High Pressure | Application | Other, Liquid transfer or circulating, drinking water,coffee machine |
Product Description
12v or 24v dc micro juice dispensing machine pump
Product Description
1. Small size,dc brushless motor
2. Life: magnetic drive way more advanced to avoid the traditional rotor friction, longer life can be more than 20,000 hours of life.
3. Low noise: ≤35dB, at 1 meter distance.
4. Working Way: The product is a brushless magnetic drive, 24 hours of continuous work
5. High temperature:100°C.
6. Advanced magnetically coupled technology, without any leakage for ever
7. Low power consumption.Low or no maintenance
8. Material: Durable magnetic rotor and fine ceramic shaft.
9. It can be customized according to customer`s technical requirements.
pump itself meet: /H /F /PV (high temperature 100°C / food grade / solar panel driven )
can be customized: /S (submersible )
Caution: Pump chamber without liquid is best not to prolonged idling the pump cavity liquid idling.
Application:
1. Hot water circulating system;
2. Remote area fluid handling
3. Process temperature control
4. Water or oil cooling circulating system
5. Circulating systems for homes, RV's and boats
6. Fuel cell systems
7. Oxygen generating systems
8. Juice machines
9. Aquariums and ponds
10. Vending machines and so on.
Dimension (mm) 1' inch=25.4mm
Specification
| Model | Product Code | Max Flow Rate (L/M) | Rated Voltage (DC) | Current (A) | Max Water Head (M) | Power (W) |
| TL-B02H-12-0501 | 5L | 12VDC | 0.3 | 1.3 | 3.6 | |
| TL-B02H-12-0602 | 6.5L | 12VDC | 0.46 | 2 | 5.5 | |
| TL-B02H | TL-B02H-12-0803 | 8L | 12VDC | 0.76 | 3 | 9.2 |
| TL-B02HA | TL-B02H-24-0602 | 6.5L | 24VDC | 0.3 | 2 | 7.5 |
| pump itself meet: /H /F (high temperature 100°C / food grade ) | ||||||
| can be customized: /S (submersible ) | ||||||
