Small Brushless long lifetime garden water fountain pumps

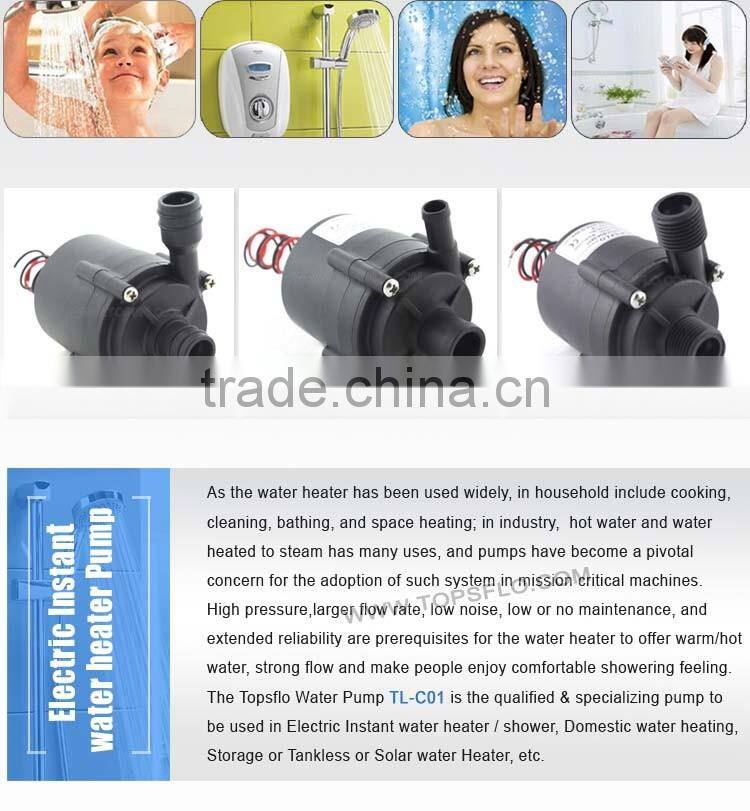

The TOPSFLO Water Pump TL-C01 is the qualified specializing pump to be used in Electric Instant water heater shower Domestic water heating Storage or Tankless or Solar water Heater etc
| Specification: |
| Max Flow Rate | 18L/MIN 22L/MIN |
| Max Static Lift | 8M ,11M |
| Rated Voltage | 12V / 24V |
| Impeller Type | Open impeller |
| Motor Type | Three-phase brushless DC motor |
| Food Grade(Y/N) | Y |
| Liquid Temperature | 0-100°C |
| Pump Theory | Centrifugal pump |
| Ambient Temperature | -10-50°C |
| Media | Pure Water |
| Waterproof Class | IP42 |
| Use Place | Indoor or Outdoor |
| Working Voltage Range | 6~16V or 12~28V |
| Power Consumption | 34W,48W |
| Noise Class form 1M | 42dB /Max |
| Ideal Life Time | 20000 Hours |
| Working Mode | Continuous |
| OD of Inlet | 21 mm |
| OD of Outlet | 11.5mm |
| Dimension | 89.3x60.34x57.92 mm |
| Power Supply | DC power supply, battery, solar powered |
| Flow Rate Regulation |
(customized functions) 1.PWM, 0~5V speed control, 2.submersible lar panel driven directly 4.FG(RPM) signal wire |
| Remarks | Can’t dry-running, not Self-priming |
|
The technical parameters above is only for your reference, for more details , please feel free to contact us. | |
| Product Feature: |

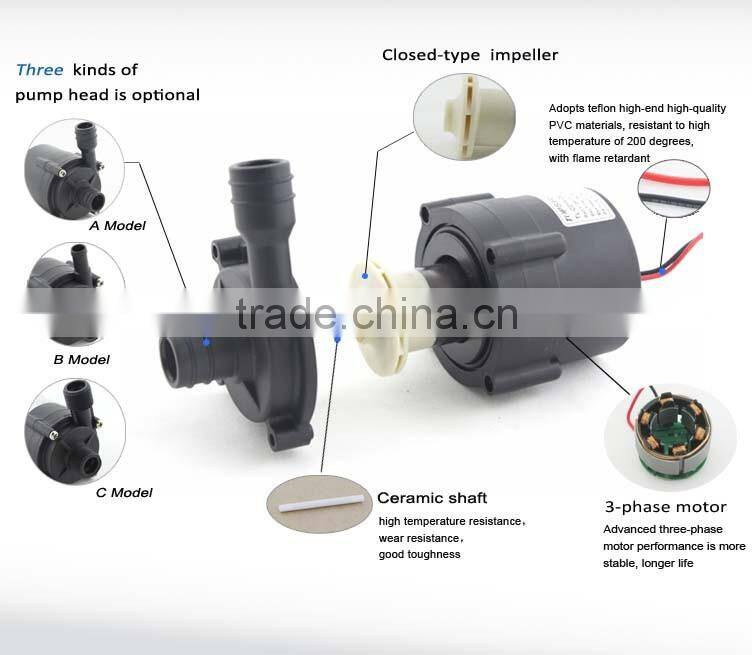

♦ Advanced magnetic driving technology for static-seal,without any leakage forever
♦ Heavy duty work,can sustain continuous 24hours work
♦ High efficiency ECM brushless DC motor with long lifetime 20,000hours
♦ 3-phase motor for lower power consumption and lower fever
♦ Durable permanent magnetic rotor/impeller and fine ceramic shaft
♦ Specializing closed-type impeller for lower water loss bring higher efficiency
♦ High precision one-time injection magnetic rotor for stable lower vibration
♦ High temperature materials for liquid temperature ≥90°C
♦ Low or no maintenance
♦ Food grade materials
♦Imported Japan XYRON PPE material, certificated by WARS & NSF.
