Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > High Performance Liquid DC Diaphragm Chemical Free Water Treatment Systems Pump

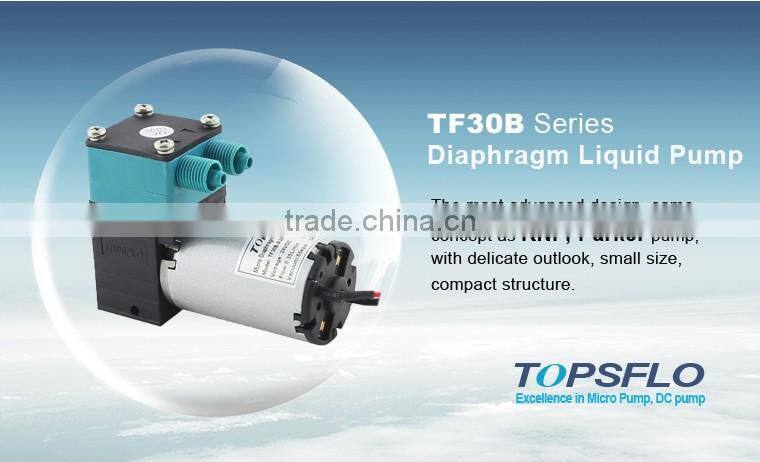

High Performance Liquid DC Diaphragm Chemical Free Water Treatment Systems Pump

Name: High Performance Liquid DC Diaphragm Chemical Free Water Treatment Systems Pump
Brand: TOPSFLO
SKU: 141359370
Availability: InStock

High Performance Liquid DC Diaphragm Chemical Free Water Treatment Systems Pump thumbnail-1

High Performance Liquid DC Diaphragm Chemical Free Water Treatment Systems Pump photo-1

US$ 39 - 40 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Brand Name:

TOPSFLO

Model Number:

TF30B-A

Theory:

Other, liquid vacuum,suction,self-priming,pressurize

Contact Supplier Request Quote Chat Now

Changsha TOPSFLO Micro Pump Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

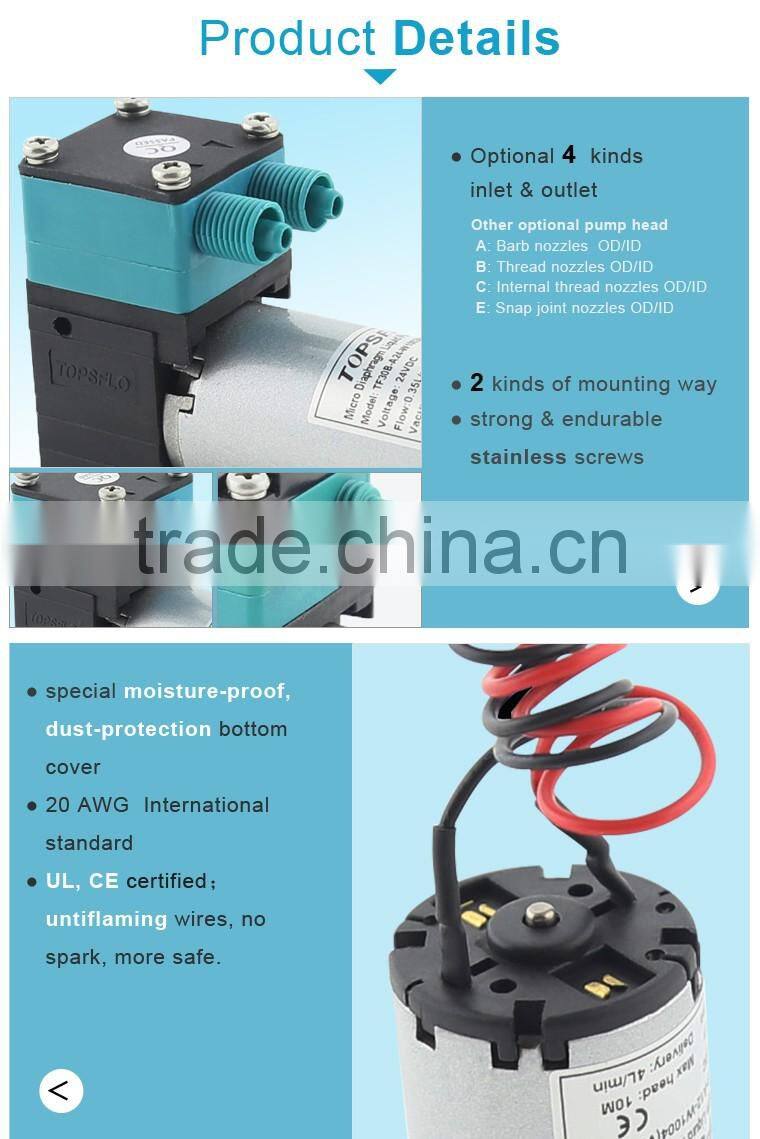

Product Details
Company Profile
Contact Us

Brand Name TOPSFLO

Model Number TF30B-A

Theory Other, liquid vacuum,suction,self-priming,pressurize

Structure Diaphragm Pump

Usage Other, a variety of liquid

Power Electric

Standard or Nonstandard Other, Standard,customized

Fuel Other, DC power, Battery

Pressure Other, vacuum 65kpa,water head 10M

Application Other, Gas detection devices, Sewage disposal,Patient Monitoring

High Performance Liquid DC Diaphragm Chemical Free Water Treatment Systems pump

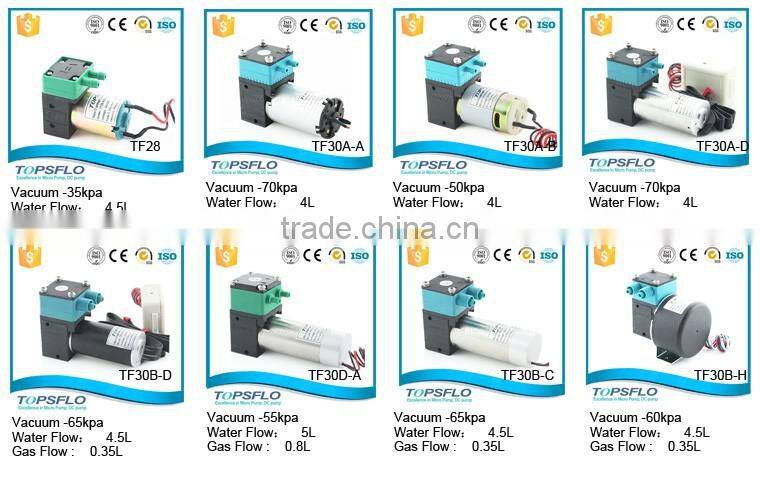

You may interest product....

Specification

TF30B-A Product Specification

Model	Pressure Pump	only vacuum referenceTM30B-A12	Rated Voltage	No-load Current	Max Head	Max Vacuum	Max Flow
	(Item Number)	(Item Number for mix-usage)	(Vdc)	(A)	(M)	(KPa)	(L/min)
TF30B-A	TF30B-A12- W1003	TF30B-A12-V6504	6 /12 / 24	0.4/0.24/0.15	≥10M	-65	water : 0.35 gas : 4
Reference: can reach 150ml@40M(4bar), 50ml@50M(5bar)
" W " means water/liquid pump, " / V " means vacuum pump, "6/12/24" means different voltages optional.
Pump Weight:220g; Pump Size:*80mm31mm60mm; Inlet&Outlet with locknut:OD 4.9mm/ID 2.8mm, hose suggestion:ID 4.0mm*

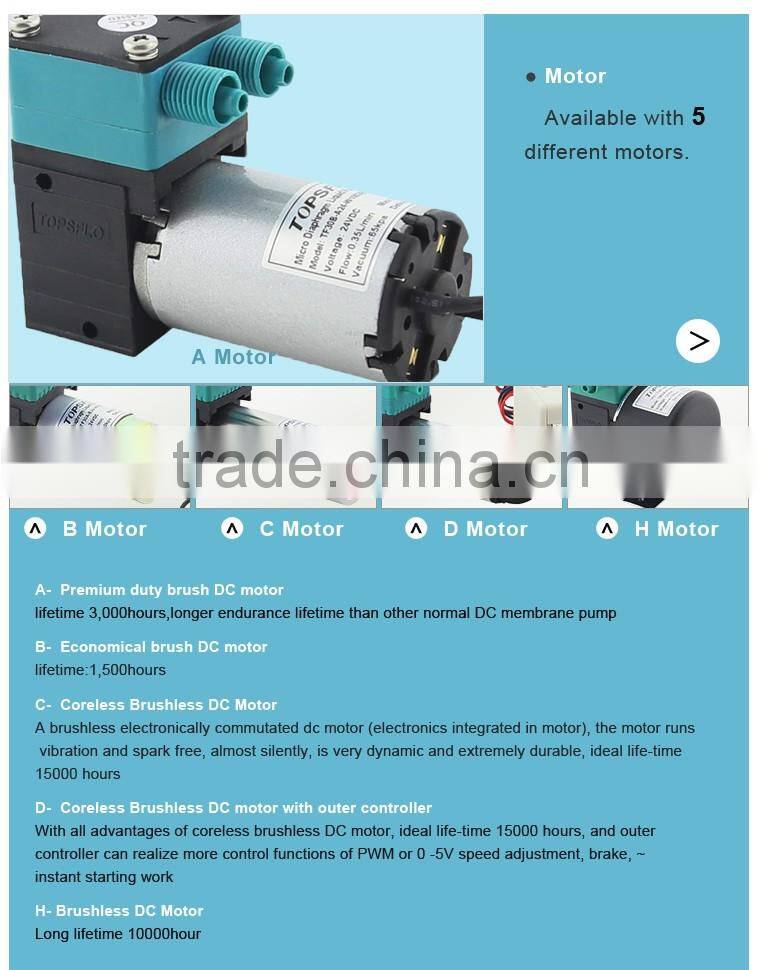

Motor type and code:“A”means premium duty brush DC motor (reference lifetime 3,000hours),longer endurance lifetime than other normal DC membrane pump

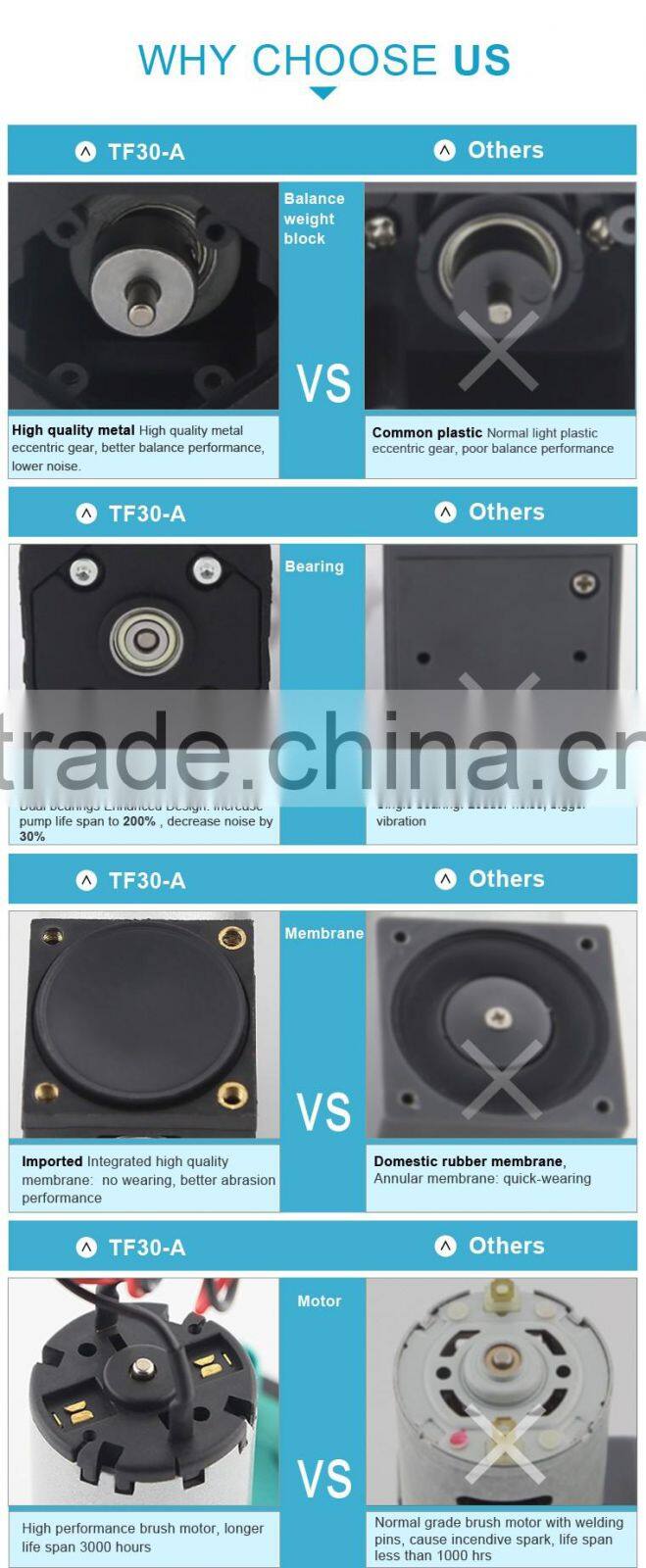

Comparing with the TZ economic series, pump with general more stable and higher performance for it's importing bearing, higher endurance membrane.
Note: other water flow rates of 0.05L/0.15L/0.2L can be customized as requirements.

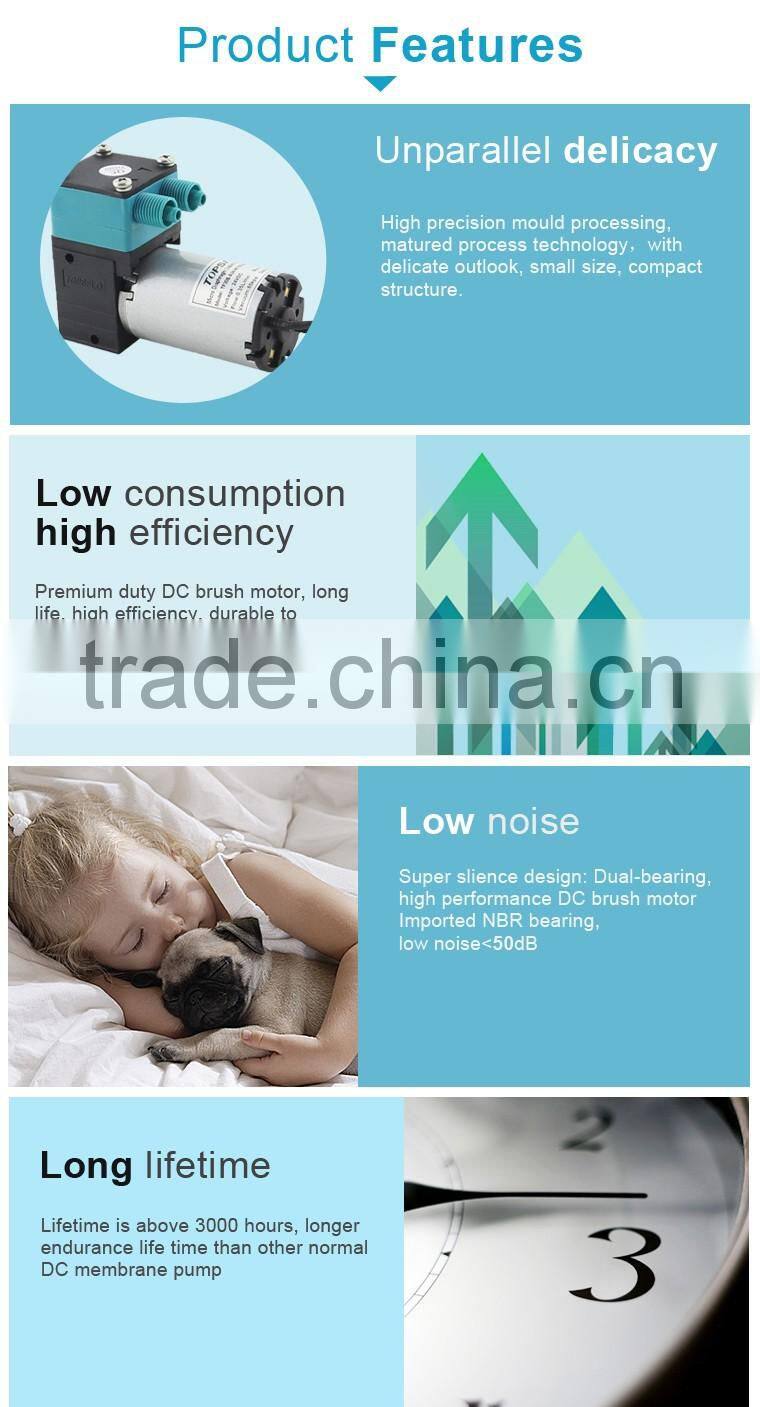

Features:

Small and powerful
Micro design and maximum performance resulting from built-in technology are the outstanding characteristics of this product.
Self-priming and excellent for pressure
Sophisticated diaphragm technology and precise valve structures enable performances from 8.85 in .Hg suction and 14.5 PISG pressure.
Dry running, durable and maintenance free
The carefully considered design of these pumps allows them to be run dry and ensures safe operation and a long life even under the most severe conditions.
Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
Uncontaminated flow
No contamination of the media due to oil-free operation
Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other ,material combinations for the parts which allows the corrosive gas to be pumped.
Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected

Application

The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:

Analysers

Medical/pharmaceutical
Environmental/water treatment

Laboratory
Filtration
Chromatograph

Cleaning industry
Cuvette cleaning
Sterilizers
Industrial washing machines

Printing
Ink jet printing
Photographic/film development

Industrial vacuum applications Portable Analytical Instruments
Medical Diagnostic Equipment Food/ toxicology

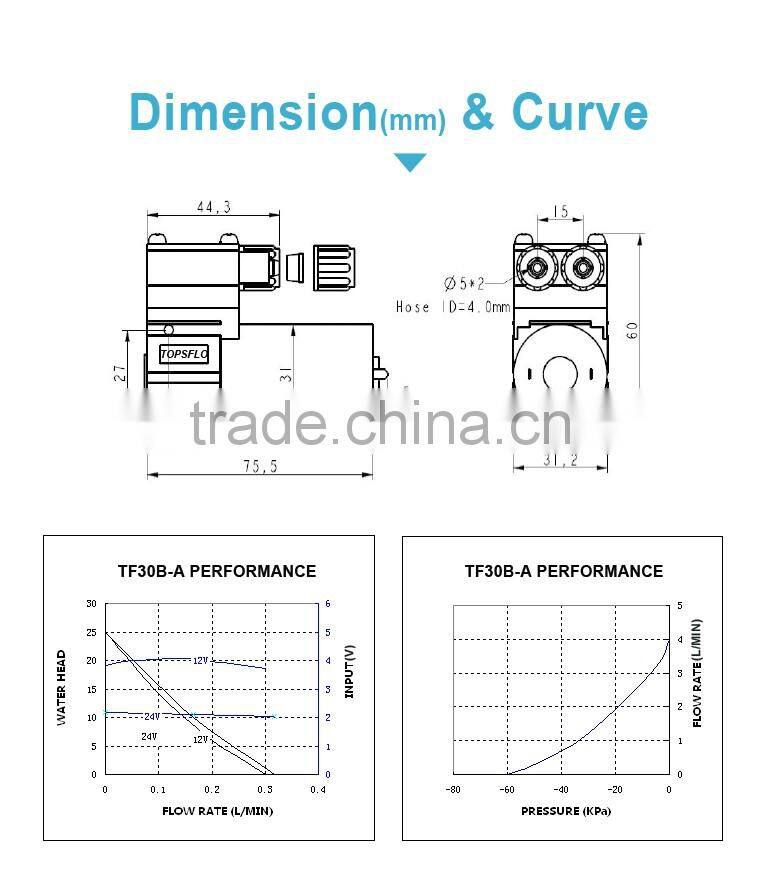

Curve & Dimension

Packaging & Shipping
