Help CenterHigh Temperature Fiberglass Woven Filter Cloth
Related Products
-
High Temperature PTFE Coated Fiberglass Woven Filter ClothUS$ 1 - 30MOQ: 500 Meters -
Fiberglass Flat Filter Cloth (filter Bags)US$ 1 - 100MOQ: 300 Square Meters
-
Fiberglass Electrical Insulation ClothUS$ 0.5 - 0.79MOQ: 2000 Square Meters
-
E-glass 780gsm Aluminum Foil Fiberglass ClothUS$ 3 - 30MOQ: 1 Bag
-
High Quality Air Filter Fiberglass Filter Bag Standard for Power Plant and Other IndustrialUS$ 5 - 35MOQ: 100 Bags
Specifications
1.ISO9001:20082.excellent resistance to acids and alkalis anti-abrasion
3.high temperature resistance
4.high airpermeability

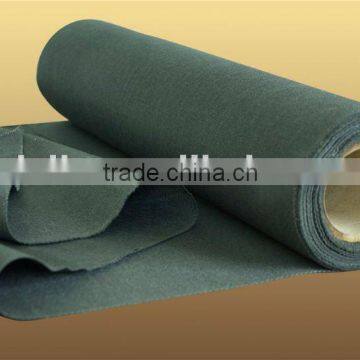

Fiberglass filter fabric
This kind of glass fabric is used for making filter bag. It's used in cement, steel plant and so on.
Triple finish: The triple finish was one of the earliest finishes developed for filtration from chemical attack. The triple finish is now used primarily in cement production and metal foundry applications.
PTFE finish: A ten Percent add on of PTFE particles, such as Dupont's Teflon B, encapsulates the glass fibers to prevent abrasion. However, because PTFE don't bond to the glass filaments, acids or alkalis can attack fabric with a PTFE finish chemically. Fabric with PTFE finish is recommended for use with utility base load boilers operation under mild PH conditions.
The technical data of Fiberglass filter fabric
Specification | EWTF340 | EWTF470 | EWTF750 | |
Weave | 1/3 twill | 1/3 twill | Double twill | |
Finish | TRI | TRI | PTFE | |
Loss on ignition | >10 | >10 | >10 | |
Density(pics/cm) | 21×12 | 17×9 | 19×16 | |
Weight(g/m2) | 380±10 | 520±20 | 820±20 | |
Tensile strength(N) | Warp | >1900 | >2300 | >25000 |
Weft | >1550 | >180 | >22000 | |
Air permeability(cm3/cm2/s) | 30-45 | 28-45 | 20-30 | |
Mulen burst(kpa) | 3600 | 4150 | 6200 | |
MIT flex(times) | Warp | 100000 | 150000 | 210000 |
Weft | 75000 | 140000 | 200000 | |
