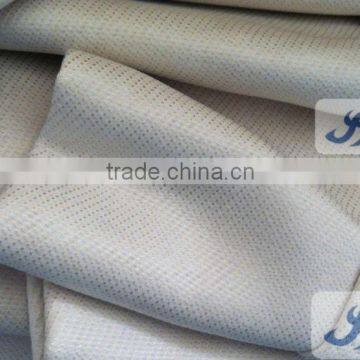

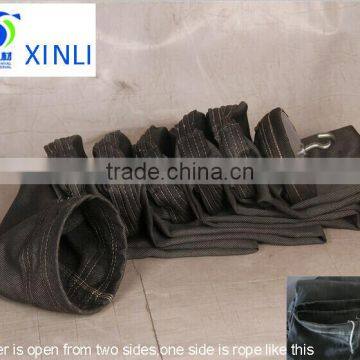

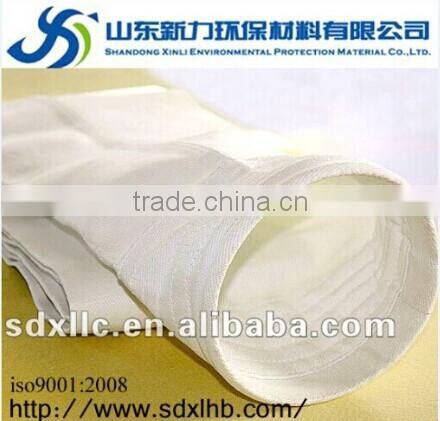

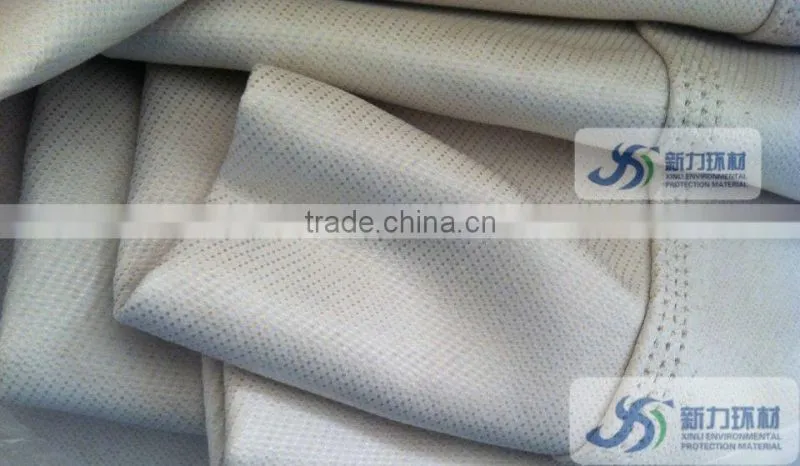

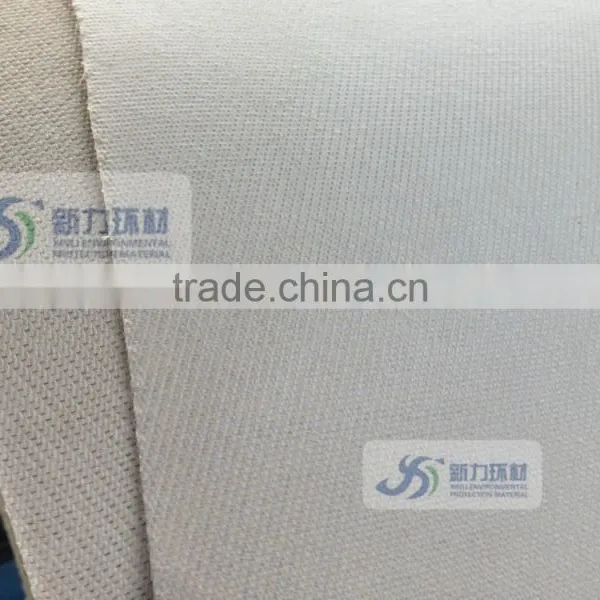

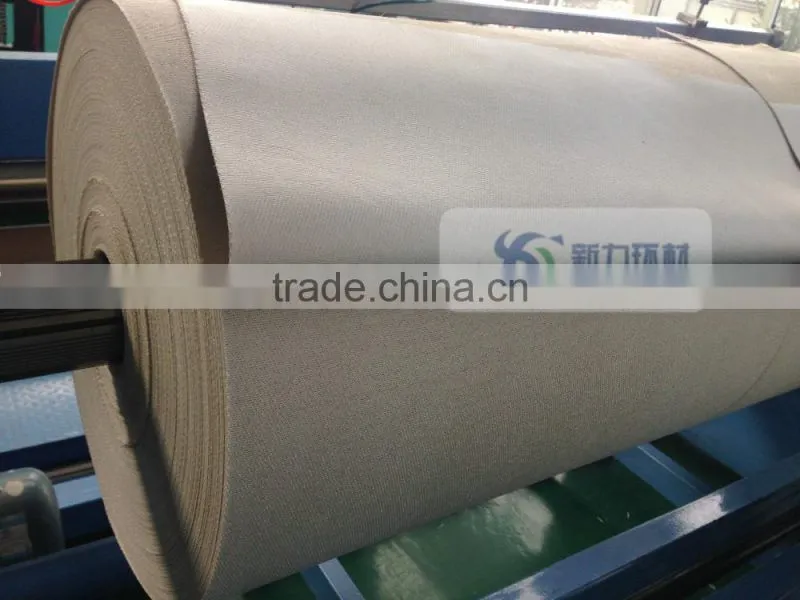

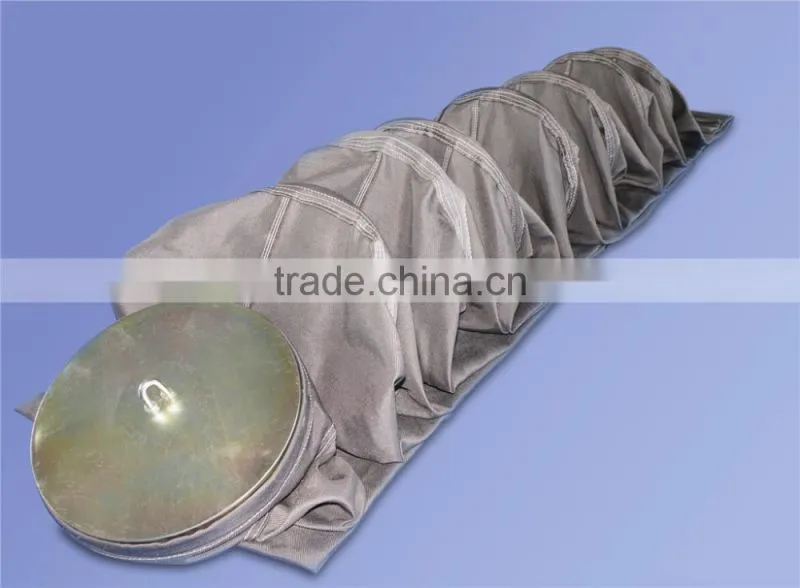

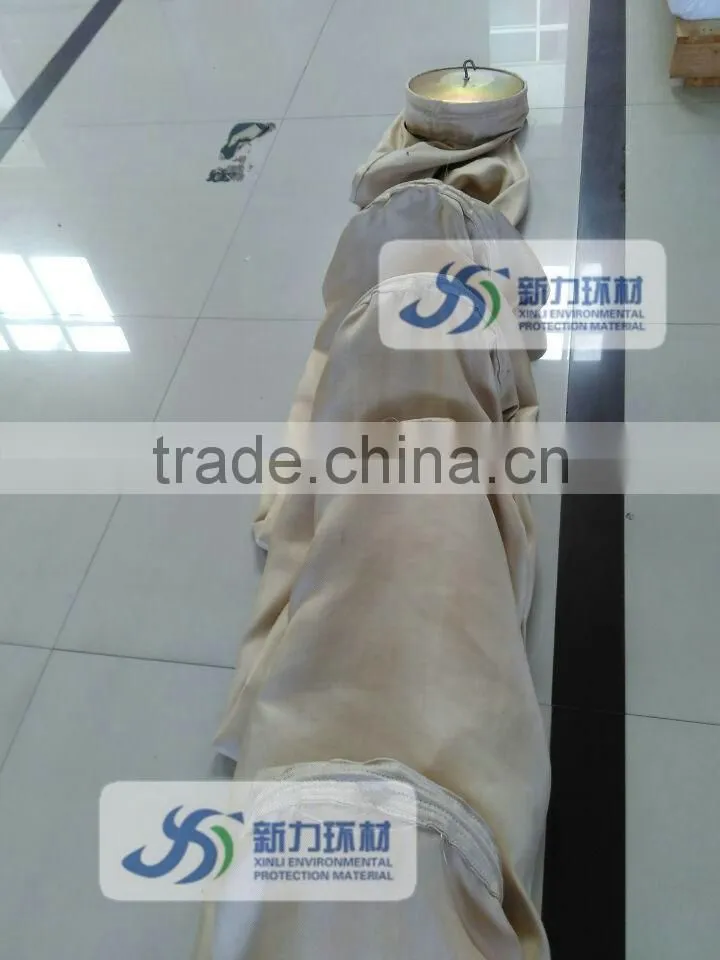

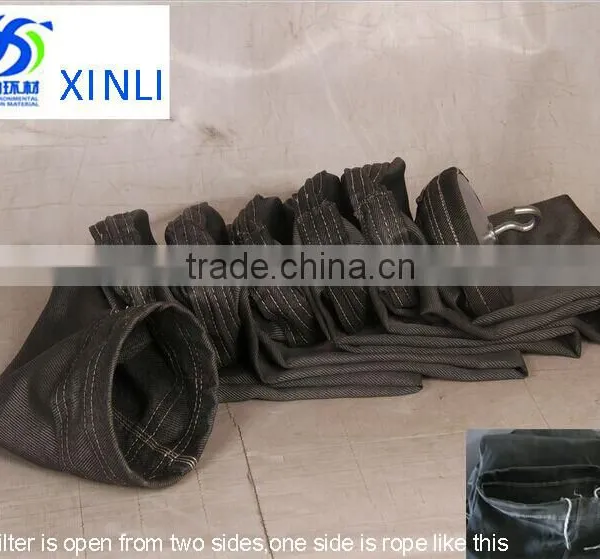

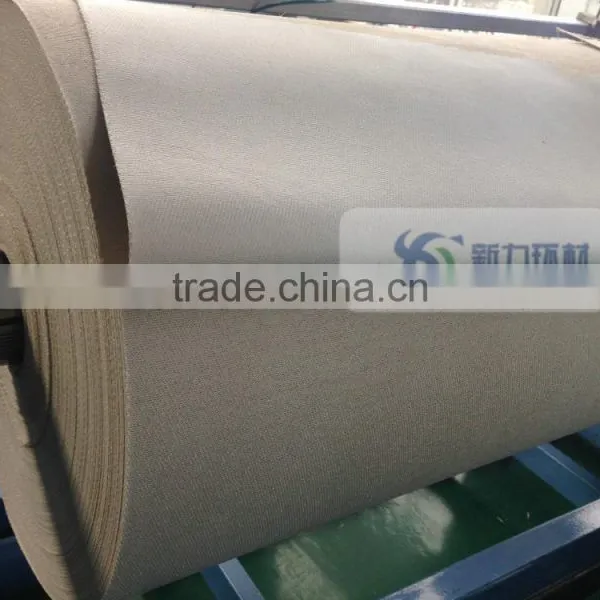

Glass fiber flat filter cloth ( bags)

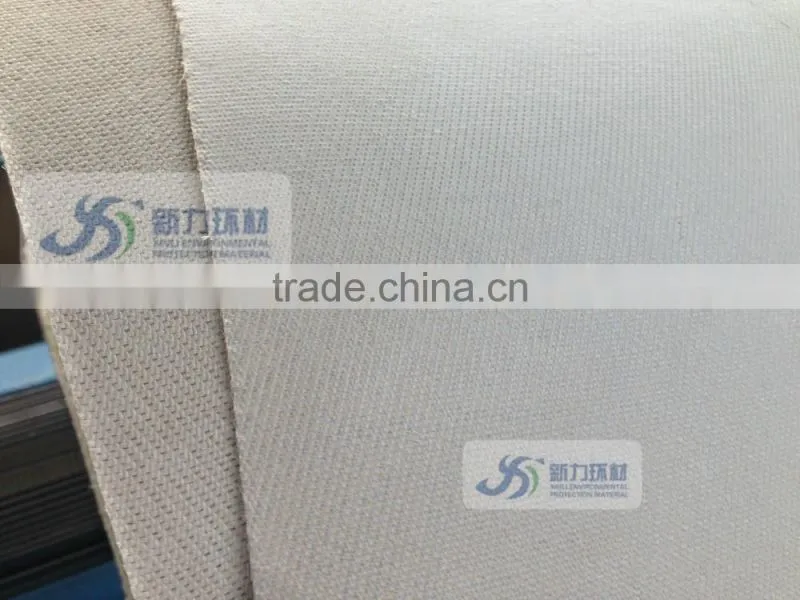

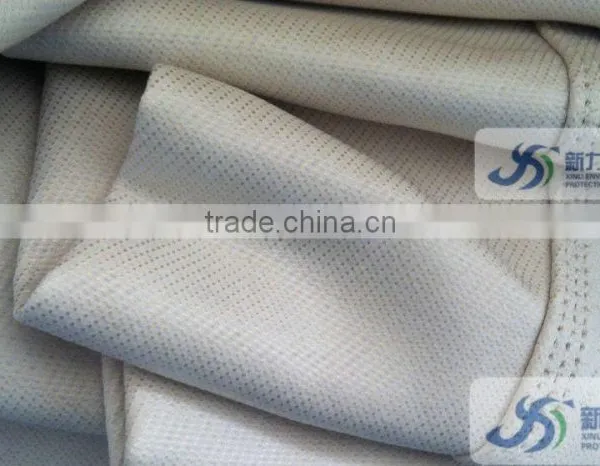

Glass fiber flat filter cloth (bags) is a woven glass fabric with special finish. There are varieties of twill, denim-breaking, double-wai, and so on, the fabric surface by special treatment, made of high temperature, corrosion resistance of the filter material, is widely used in industry to catch dust, the recovery of valuable industrial products, industrial smoke and dust pollution treatment.
Continuous glass fiber filter cloth (bag) is suitable for filter cloth (bag) in the middle of the frame with no filter cleaning (anti-smoking) or air bags reduced the various cleaning bag filter.
According to the thickness of the fabric, filtering speed control in general 0.5m/min below. The speed is too high to easily filter cloth (bag) a bad blow, or filter through. In cement, ferrosilicon industry to promote more with the same thickness of the yarn expanded filter cloth (bag) compared to cheaper prices.The technical data of glass fiber flat filter cloth
Article Name |
XLFG350 |
XLFG502 |
XLFG801 |
|
Ingredients |
Fiber |
E-Fiberglass |
E-Fiberglass |
E-Fiberglass |
Loss on ignition |
% |
10-13 |
10-13 |
10-13 |
Weight |
g/m2 |
350±15 |
510±15 | 780±15 |
Thickness |
mm |
0.35±0.03 |
0.5±0.2 |
1.0±-0.2 |
Weave |
|
1/3 twill |
1/3 twill |
Double twill |
Permeability |
cm3/cm2/s.127pa |
4-7 |
3-6 |
3-5 |
|
Tensile breaking strength(N/2.5cm) |
Warp |
≥1300 |
≥2100 |
≥2300 |
Weft |
≥800 |
≥1300 |
≥1800 |
|
|
Maximum shrink of 90 mins |
Temperature(°C) |
260 |
260 |
260 |
% |
≤1 |
≤1 |
≤1 |
|
Service Temperature(°C) |
Continuous |
240 |
240 |
240 |
Instant |
260 |
260 |
260 |
|
Velocity of filtration |
m/min |
< 0.6 |
0.7 |
< 1.0
|
