Fiberglass woven filter cloth fabric with graphited acid treated

Specifications

1.Fiberglass woven filter cloth
2..acid resistant,anti corrosion
3. Good quality strand.
4. High tempreture reisitant

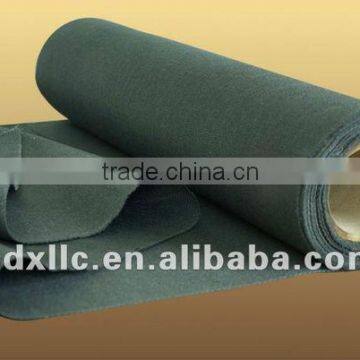

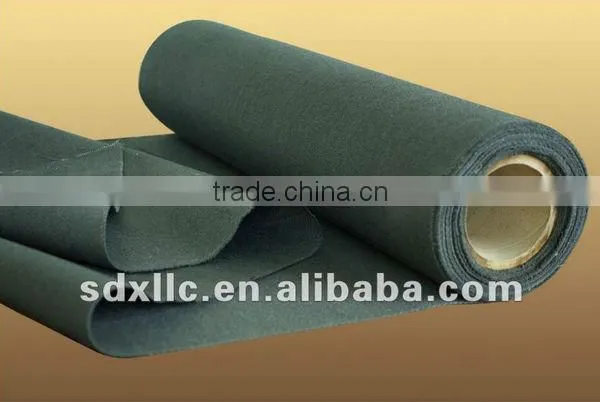

                                Fiberglass filter fabric cloth (filter bags)

Fiberglass flat filter cloth (bags) is a woven glass fabric with special finish, it is early research and development of glass fiber filter materials, high temperature filter media is also currently the leading market products. There are varieties of Crowfoot, denim-breaking, satin,twill and so on, the fabric surface by special treatment, made of high temperature, corrosion resistance of the filter material, is widely used in industry to catch dust, the recovery of valuable industrial products, industrial smoke and dust pollution treatment.

Continuous glass fiber filter cloth (bag) is suitable for filter cloth (bag) in the middle of the frame with no filter cleaning (anti-smoking) or air bags reduced the various cleaning bag filter.

According to the thickness of the fabric, filtering speed control in general 0.5m/min below. The speed is too high to easily filter cloth (bag) a bad blow, or filter through. In cement, ferrosilicon industry to promote more with the same thickness of the yarn expanded filter cloth (bag) compared to cheaper prices.

1.the working temperature is 200~260deg C, the Max temperature is 290 deg C,



2.the weight is 350~ 830g/sqm



3.Air permeability is 15~35 m3/m2/min( if with PTFE membrane the data would be lower)



4.Breaking Strength-MD : ≥3500



5.Breaking Strength-CMD: ≥3000

6.Finishment: silicon, graphite and telfon treatment.
