Help CenterBiomass Briquette Machine or Wood Sawdust Briquette Machine With CE Certificate
Related Products
-
New Design Saw Dust Biomass Briquette MachineUS$ 20,000 - 50,000MOQ: 5 Sets -
Large Biomass Briquette Machine Factory PriceUS$ 20,000 - 50,000MOQ: 5 Sets
-
Machine to Make Wood Briquettes/Biomass Briquette Machine Production LineUS$ 20,000 - 50,000MOQ: 5 Sets
-
Automatic Biomass Briquette Machine FactoryUS$ 20,000 - 50,000MOQ: 5 Sets
-
Full Automatic Biomass Briquette MachineUS$ 10,000 - 40,000MOQ: 1 Set
Specifications
wood sawdust briquette machine with CE certificate1)Mold can be customized
2)Factory price sales

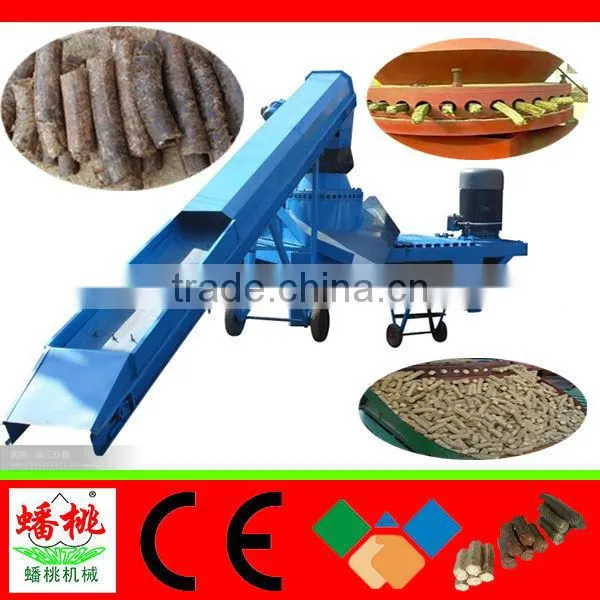

Wood sawdust biomass extruder briquette machine
Main equipment:
Main forming machine, Feeding conveyer, Out feed conveyor, Electric control cabinet, Some tools etc
Raw material:
corn cob, wheat straw, cotton straw, wood chips, tree branch, corn stalk, sawdust, tobacco stems, beanstalk, wheat shell, household garbage etc.
Application:
BBQ, boiler, burner, factory, home
Model |
PT-1500 |
PT-2000 |
PT-3000 |
Main machine power (kw) |
45(or 55) |
55(or 75) |
90(or 45*2) |
Number of die hole |
44 |
52 |
60 |
Number of Pinch roller |
2 |
2 |
2 |
Capacity(t/h) |
1-2 |
1.5-2.5 |
2-3.5 |
Density of Finished product(g/cm3) |
0.8-1.4 |
0.8-1.4 |
0.8-1.4 |
Dimention (mm) |
3100*1800*2100 |
3500*1800*2500 |
4500*8000*2100 |
Manufacturing procedure:
- Crush into small pieces (3-5mm in diameter)
- Dry the material till the moisture is less than 12%
- Put raw material into feeding part
- Finished briquette
Advance:
Disassembles and assembles simply, maintains the convenience, easy to operate. only 22 screw can be fixed,when destuffing only change the Scuff Sleeve and The wear-resisting layer of pinch roller is ok, Don't need to change screw, save time and effort.
