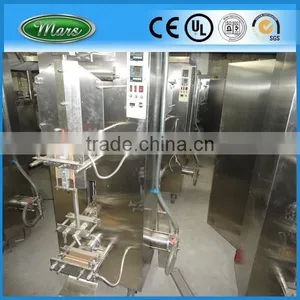

Plastic Bag Filling And Sealing Machine
1) Sachet/bag/pouch Filling and sealing Machine
2) S.S304 material
3) 100ml-500ml capacity:2000Pcs/H
4) Sachet forming/UV/printing/counting
This water Sachet Filling Machine is high precision packing machine and the most advanced liquid (sachet) packing machine in china, which is standing, three side sealing and intermittent.
The sachet machine is integrated with UltraViolet sterilization, Sachet forming, quantitative filling, sealing, printing, cutting and counting .Controlled by microprocessor and automatic photocell (Optional Function).
It is widely used to pack all kinds of liquid without gas, especially soy, wine, vinegar, juice, soybean milk, peanut oil, vegetable oil, plant oil, mineral water and liquid chemical products.
Technology Parameter For Plastic Bag Filling And Sealing Machine :
| Model | DZS-600 | |
| Production Capacity | 1500-2000 sachets per hour | |
| Filling range | 100-600ml | |
| Voltage / Frequency | AC220V/50HZ | |
| Film-transporting Motor | 250W/220V | |
| Size of the Sachet Length (mm) | 30-120mm | |
| Size of the Sachet Width (mm) | 120-160mm | |
| Power of Hot Sealing | Vertical | 300W |
| Horizontal | 500W | |
| Main motor power | 370W/220V | |
| Packing Dimension | 1000*800*1800 | |
| G.N weight | 450Kg /400kg | |
|
(1) Bag (sachet )-forming (2) UV sterilization (3) Thermal vertical sealing (4) Date lamination (5) Linear bag traction (6) quantitative filling (7) Thermal transverse sealing (8) Bag-cutting (9) Automatic counting (10) Photocell monitoring ( Available according to client’s demand) | ||
